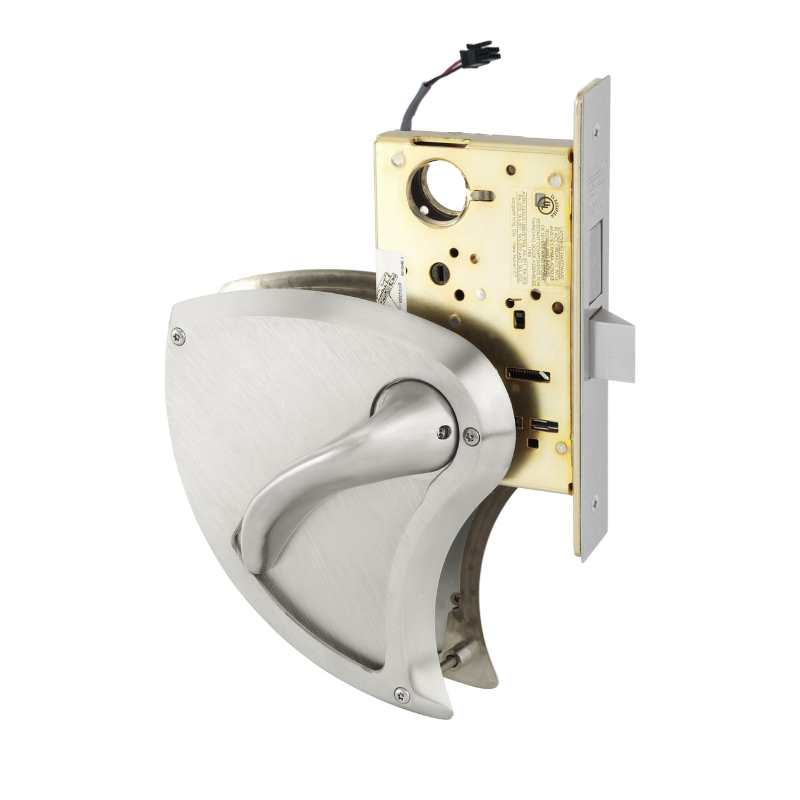

Sargent RX-8239-BHW-US32D-LC Behavioral Health Classroom Security Intruder Deadbolt Function Mortise Lock, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent RX-8239-BHW-US32D-LC is a Grade 1 mortise lock designed for behavioral health environments, featuring an intruder deadbolt function and BHW trim. Equipped with the "RX" request-to-exit switch and provided without a cylinder, this lock offers field reversible installation and a durable satin stainless steel finish. Ideal for securing classroom settings with enhanced safety measures.

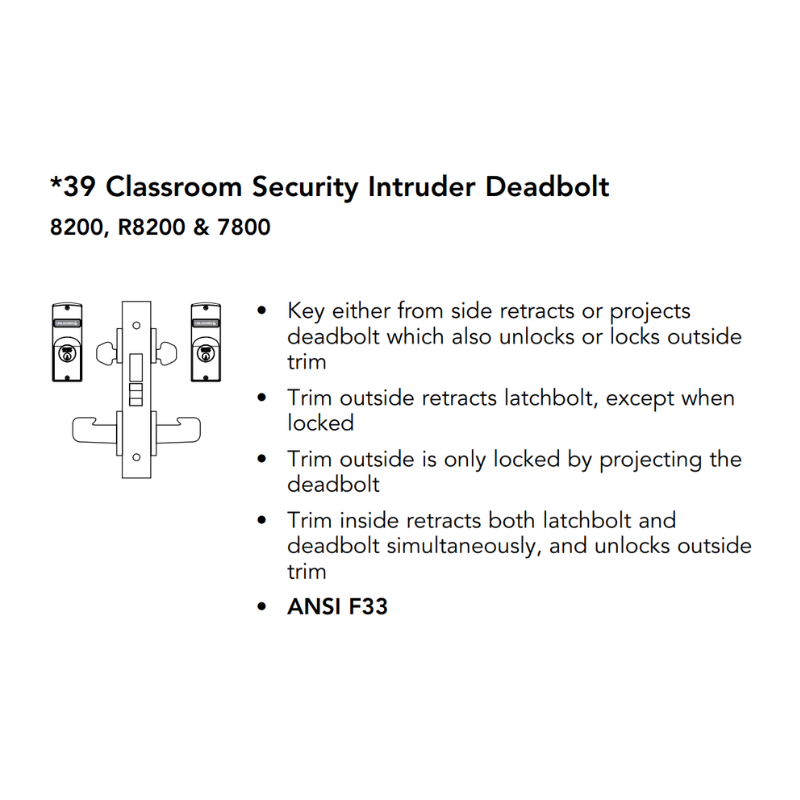

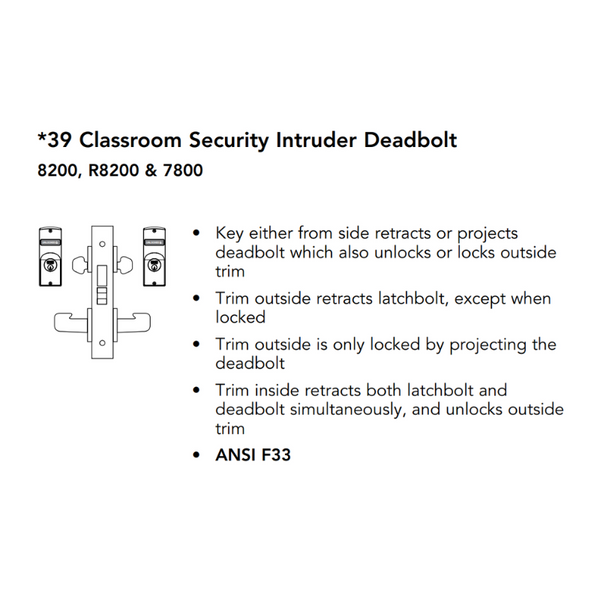

• Classroom Security Intruder Deadbolt Function:
  • Key either from side retracts or projects deadbolt which also unlocks or locks outside trim

  • Trim outside retracts latchbolt, except when locked

  • Trim outside is only locked by projecting the deadbolt

  • Trim inside retracts both latchbolt and deadbolt simultaneously, and unlocks outside trim
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
