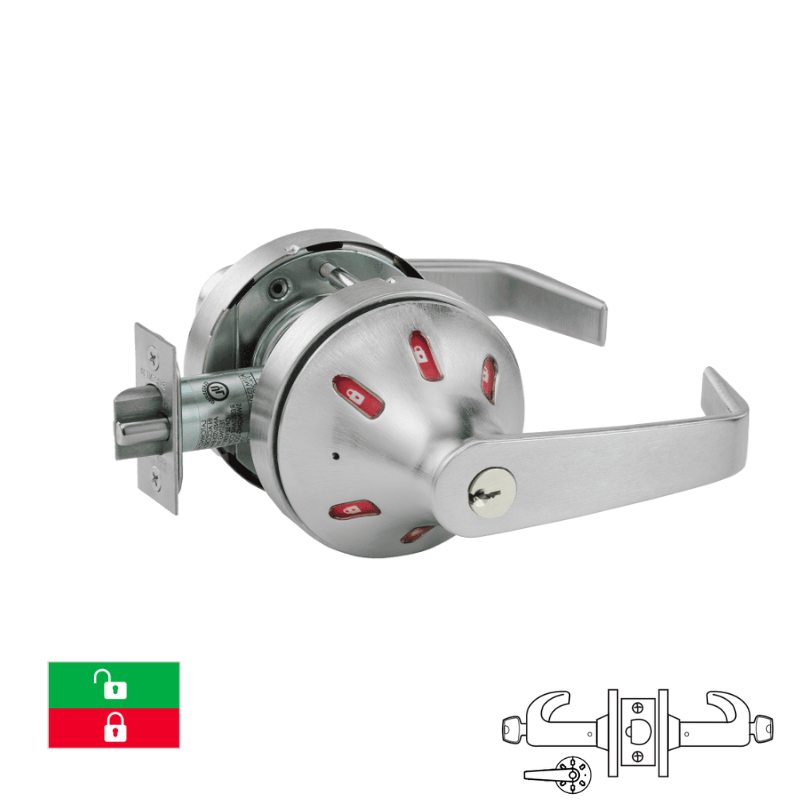

Sargent V03-10XG38-VSLL-LAKD Classroom Security Intruder Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
Sargent V03-10XG38-VSLL-LAKD cylindrical lock engineered for classroom environments with intruder function capability. Features a visual indicator trim mounted on the interior only, displaying green and red status to signal occupancy and security status. Equipped with an L-lever design and VSL rose configuration for reliable operation. Specifications include 2 3/4" backset, 4 7/8" strike, and LA keyway keyed random with two keys supplied. Grade 1 rated for institutional-grade security and durability.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
