Sargent V06-10XG04-VSLL-LAKD Storeroom Function Cylindrical Lock, Visual Indicator Trim Inside Only, White/Red, LA Keyway Keyed Random

  • SKU: V0610XG04VSLLUS26DLAKD

Sargent V06-10XG04-VSLL-LAKD Storeroom Function Cylindrical Lock, Visual Indicator Trim Inside Only, White/Red, LA Keyway Keyed Random

  • SKU: V0610XG04VSLLUS26DLAKD
Sale price$574.57/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent V06-10XG04-VSLL-LAKD Storeroo...
Quantity
+
Sale priceFrom $574.57
Sargent 351-UO-TB Powerglide Surface ...
Quantity
+
Sale priceFrom $384.60
Total

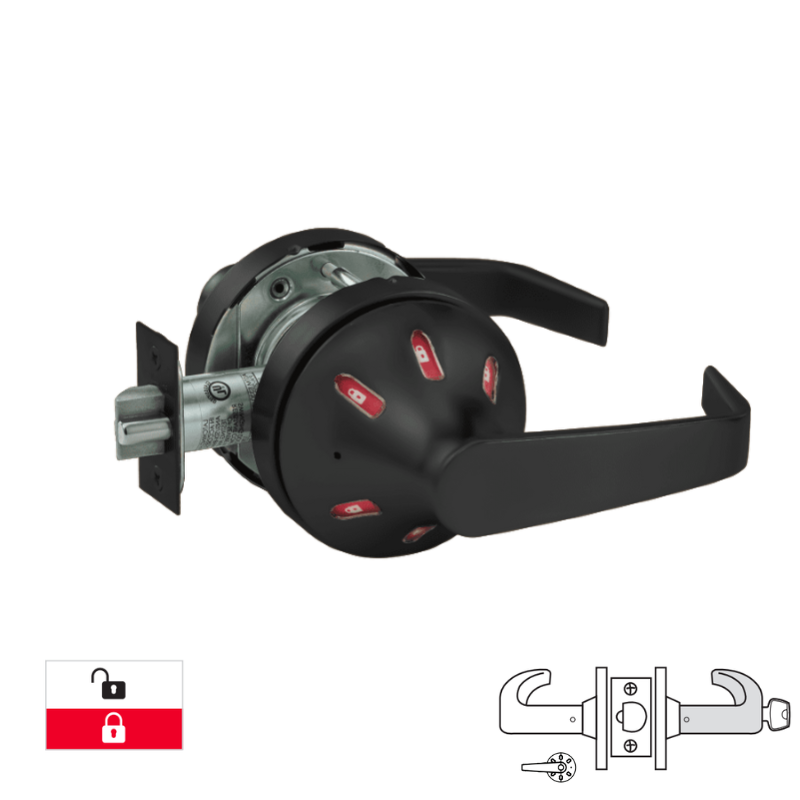

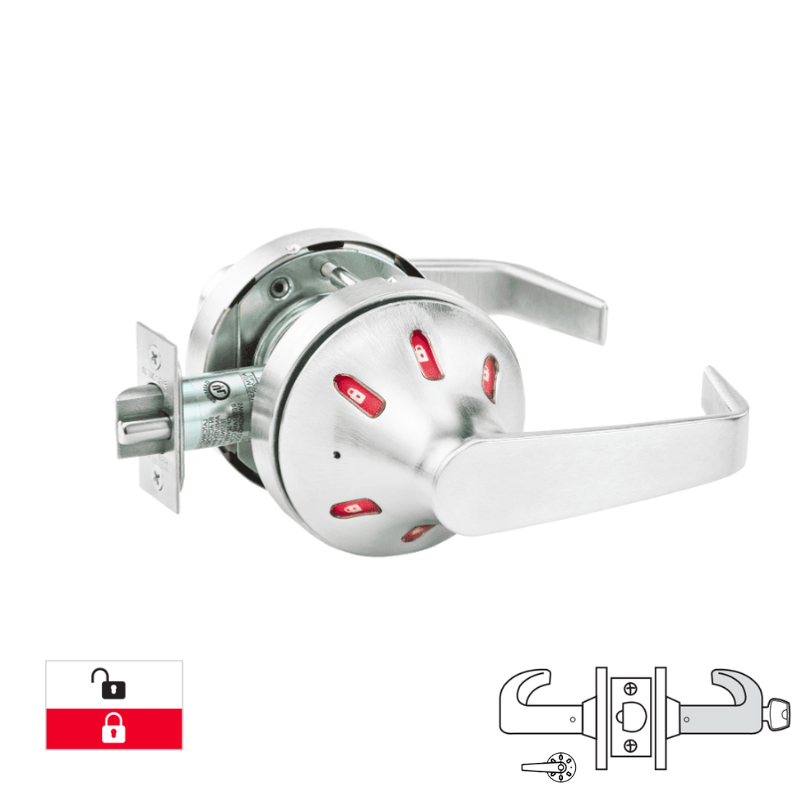

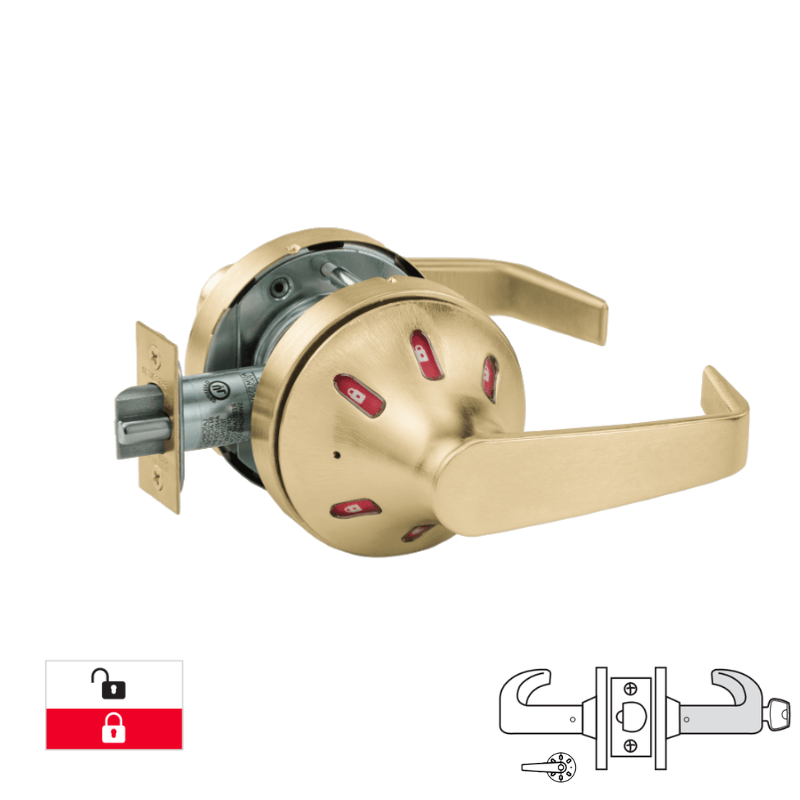

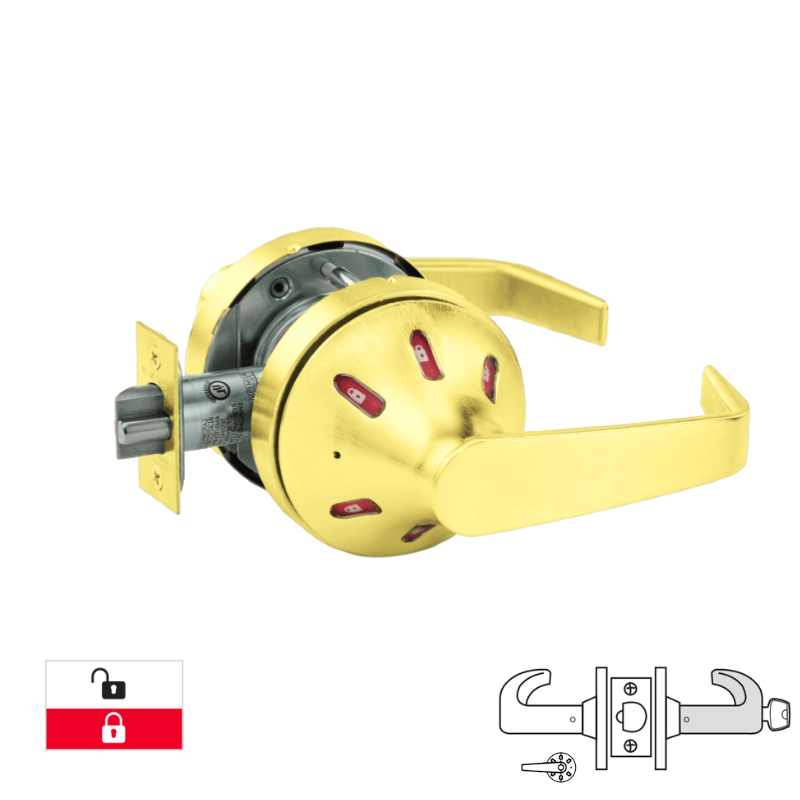

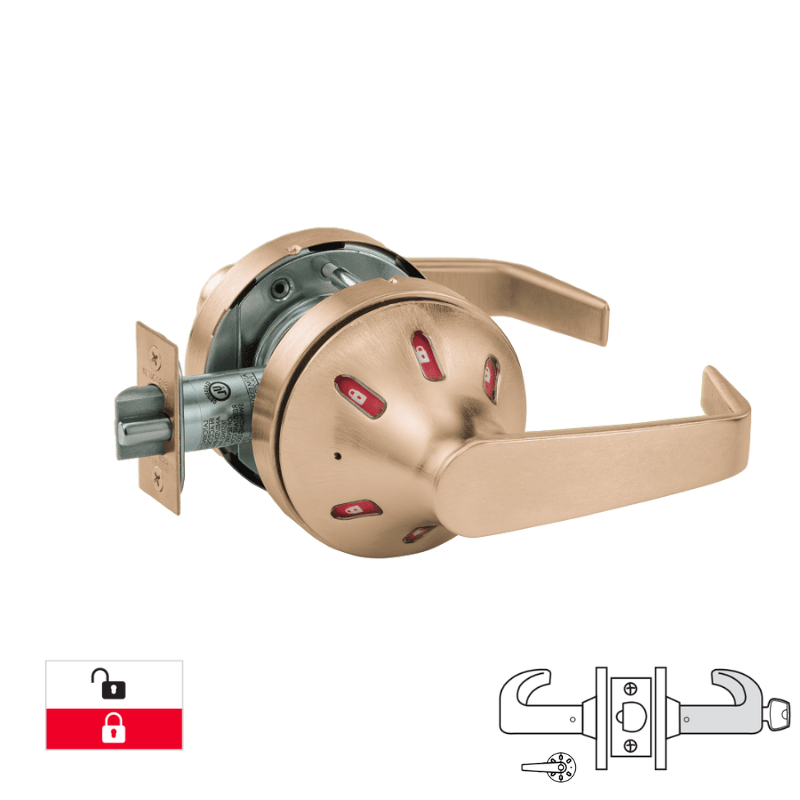

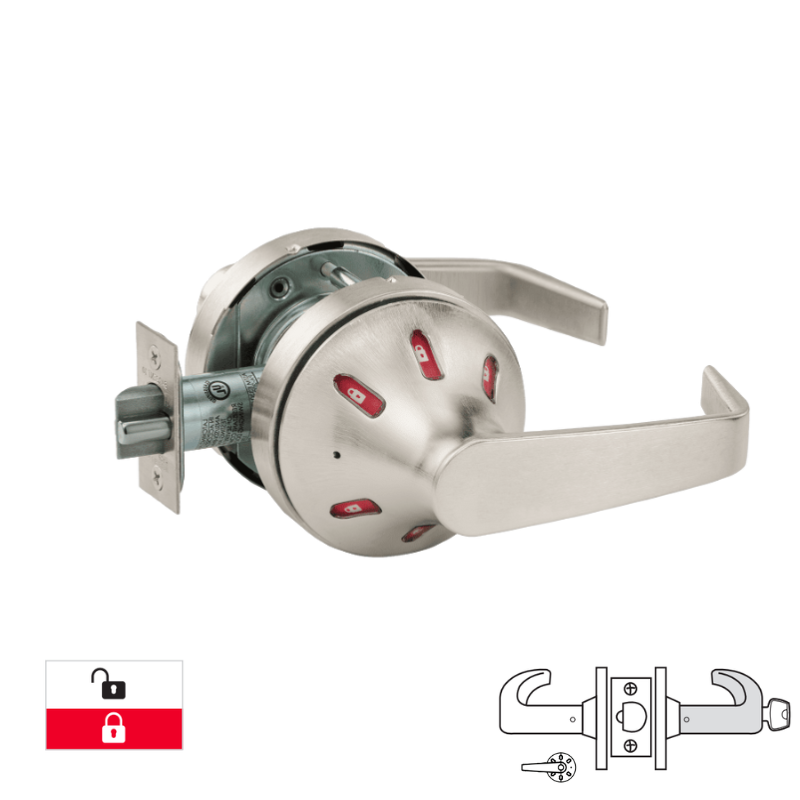

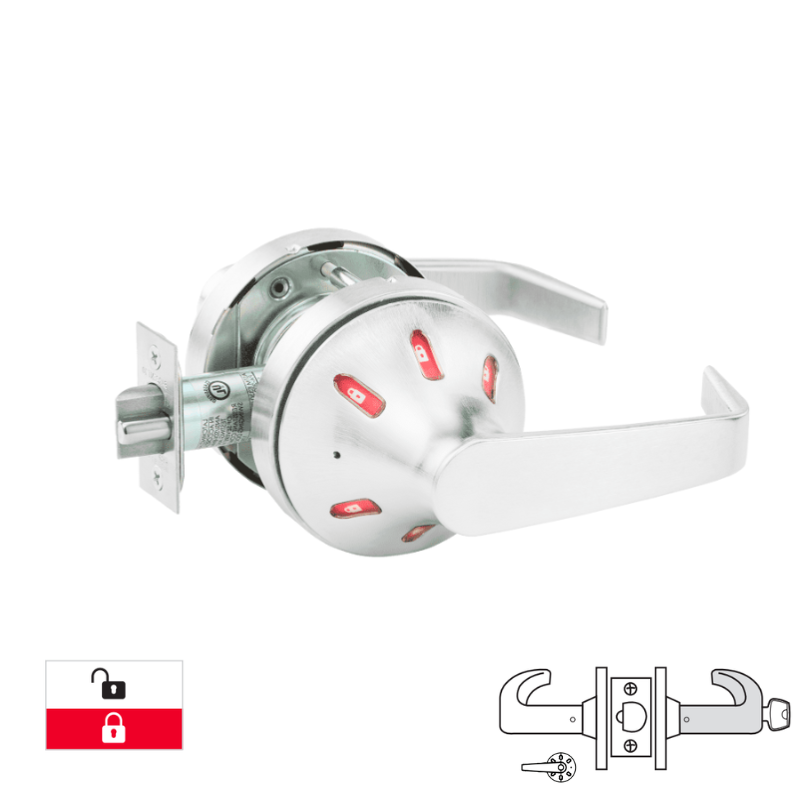

Sargent V06-10XG04-VSLL Storeroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent V06-10XG04-VSLL is a Grade 1 cylindrical lock designed for storeroom applications. It features a "VSL" rose and an "L" style lever, with a visual indicator trim located on the interior side showing white/red status. The lock includes a 2 3/4-inch backset and a 4 7/8-inch strike plate, uses an LA keyway, and comes keyed randomly with two keys for secure access control.

Storeroom or Closet Function:

  • Deadlocking latch
  • Latch by lever inside or key outside
  • Outside lever locked at all times

Single Indicator:

Option Code Outside Inside  Color
V30 Indicator Trim Standard Trim Green/Red - Icon
V60 Indicator Trim Standard Trim White/Red - Icon
V03 Standard Trim Indicator Trim Green/Red - Icon
V06 Standard Trim Indicator Trim White/Red - Icon

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.

Manufacturer Sargent
SKU V06-10XG04-LAKD VSLL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 04-Storeroom or Closet
Function Family Privacy
Lever/Knob Design L Lever
Rose/Escutcheon Design VSL Rose
Cylinder Type LA Keyway Keyed Random [2] Keys
Handing Non-handed
Door Thickness 1-3/4" to 2"
Bore Hole Diameter 2-1/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
