Sargent V30-10XG05-VSLL-LAKD Office Function Cylindrical Lock, Visual Indicator Trim Outside Only, Green/Red, LA Keyway Keyed Random

  • SKU: V3010XG05VSLLUS26DLAKD

Sargent V30-10XG05-VSLL-LAKD Office Function Cylindrical Lock, Visual Indicator Trim Outside Only, Green/Red, LA Keyway Keyed Random

  • SKU: V3010XG05VSLLUS26DLAKD
Sale price$574.57/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent V30-10XG05-VSLL-LAKD Office F...
Quantity
+
Sale priceFrom $574.57
Sargent 351-UO-TB Powerglide Surface ...
Quantity
+
Sale priceFrom $384.60
Total

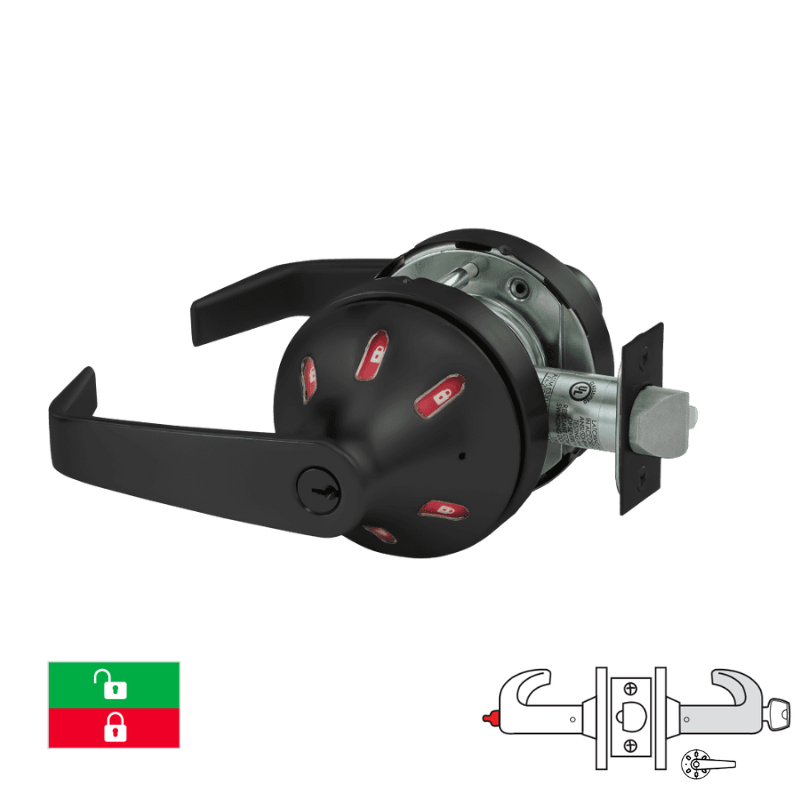

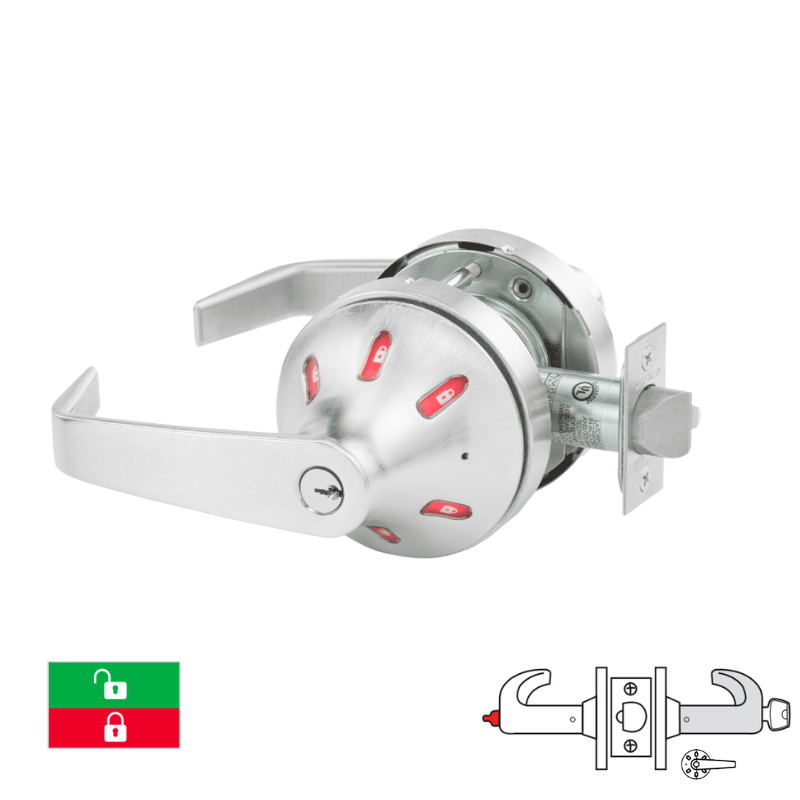

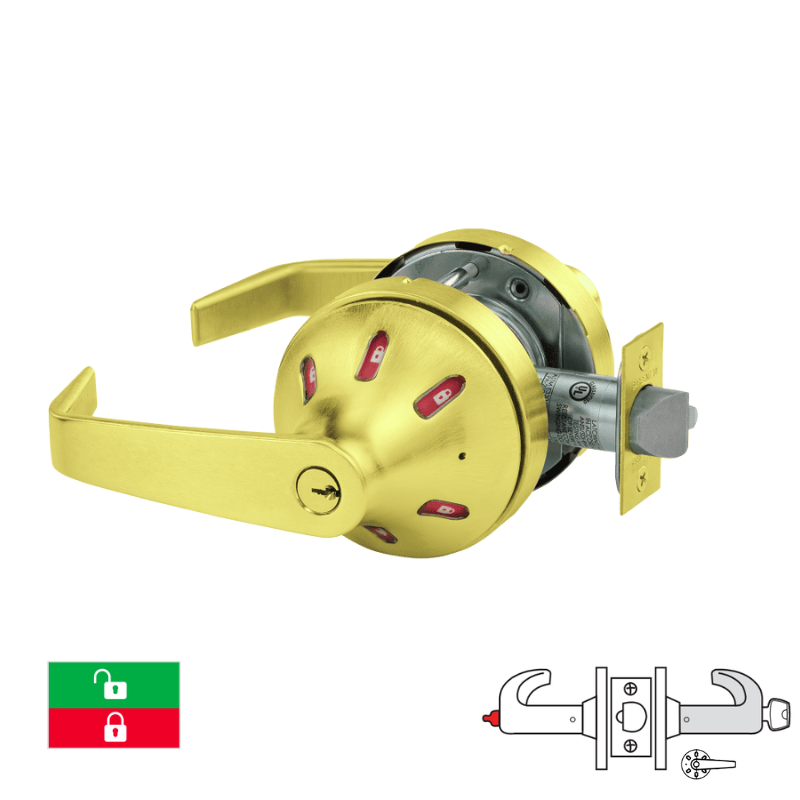

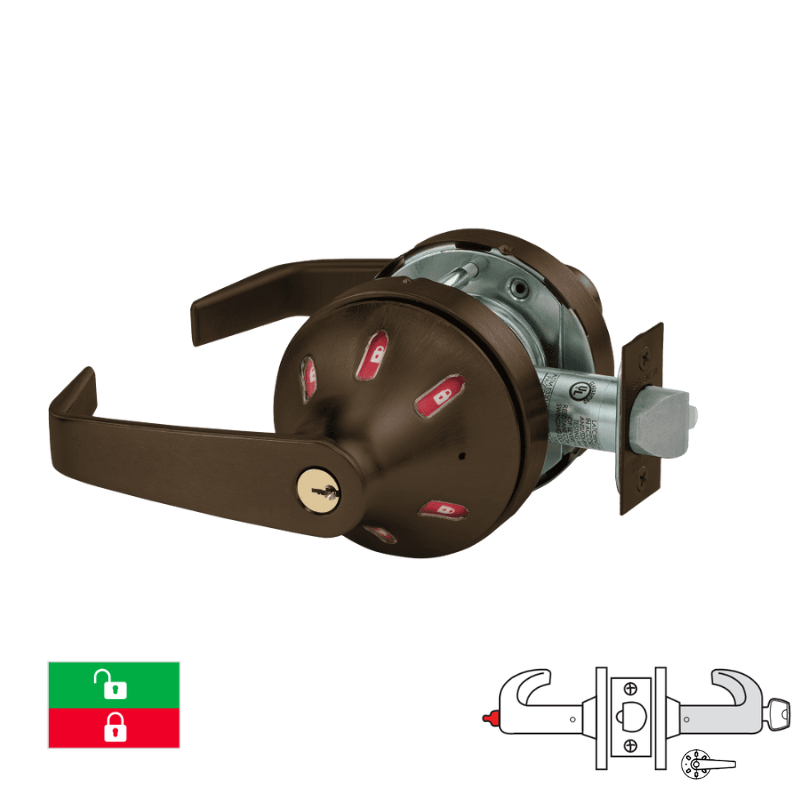

Sargent V30-10XG05-VSLL-LAKD Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1

Sargent V30-10XG05-VSLL-LAKD Office Function Cylindrical Lock features a "VSL" rose and an "L" style lever. It includes a visual indicator trim on the outside with green and red signals, a 2 3/4-inch backset, and a 4 7/8-inch strike plate. This Grade 1 lock comes with an LA keyway, randomly keyed, and includes two keys for secure access control.

Entrance or Office Function:

  • Deadlocking latch
  • Latch by either lever unless outside lever is locked by push/turn button in inside lever
  • Push button released by key outside or lever inside
  • Turn button must be released manually
  • Key retracts latch when outside lever is locked
  • ANSI/BHMA F109

Single Indicator:

Option Code Outside Inside  Color
V30 Indicator Trim Standard Trim Green/Red - Icon
V60 Indicator Trim Standard Trim White/Red - Icon
V03 Standard Trim Indicator Trim Green/Red - Icon
V06 Standard Trim Indicator Trim White/Red - Icon

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.

Manufacturer Sargent
SKU V30-10XG05-LAKD VSLL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 05-Entrance or Office
Function Family Privacy
Lever/Knob Design L Lever
Rose/Escutcheon Design VSL Rose
Cylinder Type LA Keyway Keyed Random [2] Keys
Handing Non-handed
Door Thickness 1-3/4" to 2"
Bore Hole Diameter 2-1/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
