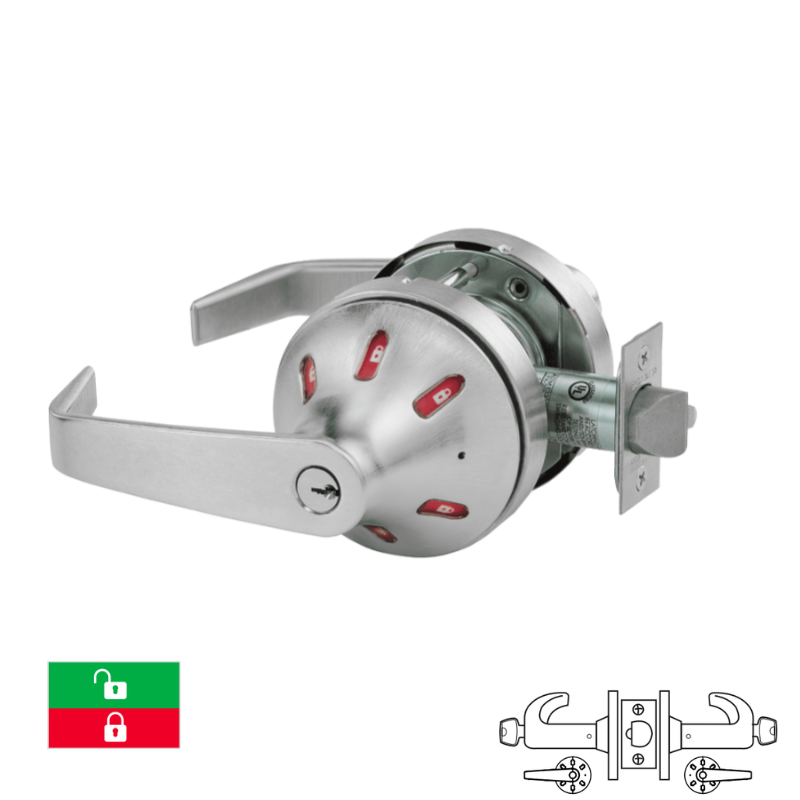

Sargent V33-10XG38-VSLL-LAKD Classroom Security Intruder Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Both Sides, Green/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
Sargent V33-10XG38-VSLL-LAKD cylindrical lock delivers institutional-grade security for classroom applications with its intruder function, restricting unauthorized access while maintaining emergency egress protocols. The VSL rose and L-lever assembly integrate seamlessly with interior visual indicator trim on both sides, displaying red when locked and green when unlocked for immediate status recognition. Configured with a 2 3/4" backset and 4 7/8" strike plate, it fits standard door frames. The LA keyway uses keyed random operation with two keys supplied, ensuring controlled access management in educational facilities.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Double Indicator:
| Option Code |
Outside |
Inside |
 Color |
| V33 |
Indicator Trim |
Indicator Trim |
Green/Red - Icon |
| V66 |
Indicator Trim |
Indicator Trim |
White/Red - Icon |
| V77 |
Indicator Trim |
Indicator Trim |
Green/Red - No Icon |
| V88 |
Indicator Trim |
Indicator Trim |
White/Red - No Icon |
