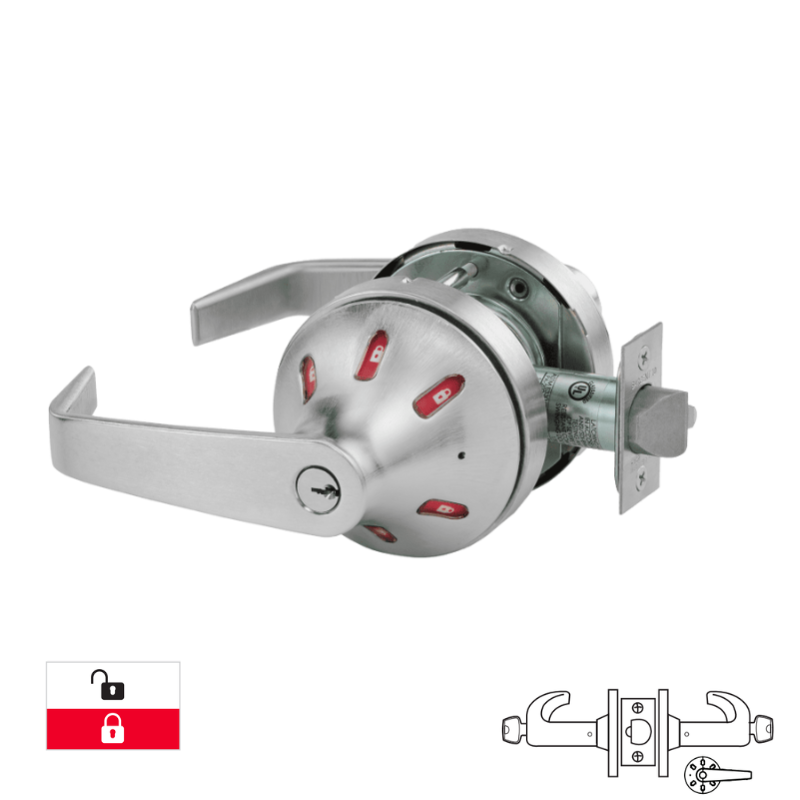

Sargent V60-10XG38-VSLL-LAKD Classroom Security Intruder Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
Sargent V60-10XG38-VSLL-LAKD cylindrical lock engineered for classroom security with intruder function and Grade 1 durability. Features visual indicator trim on exterior only, displaying white/red status, paired with lever-style hardware. Configured with LA keyway keyed random, supplied with two keys. Specifications include 2 3/4" backset and 4 7/8" strike plate. VSL rose design ensures reliable operation in high-traffic educational environments requiring controlled access and emergency lockdown capability.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
