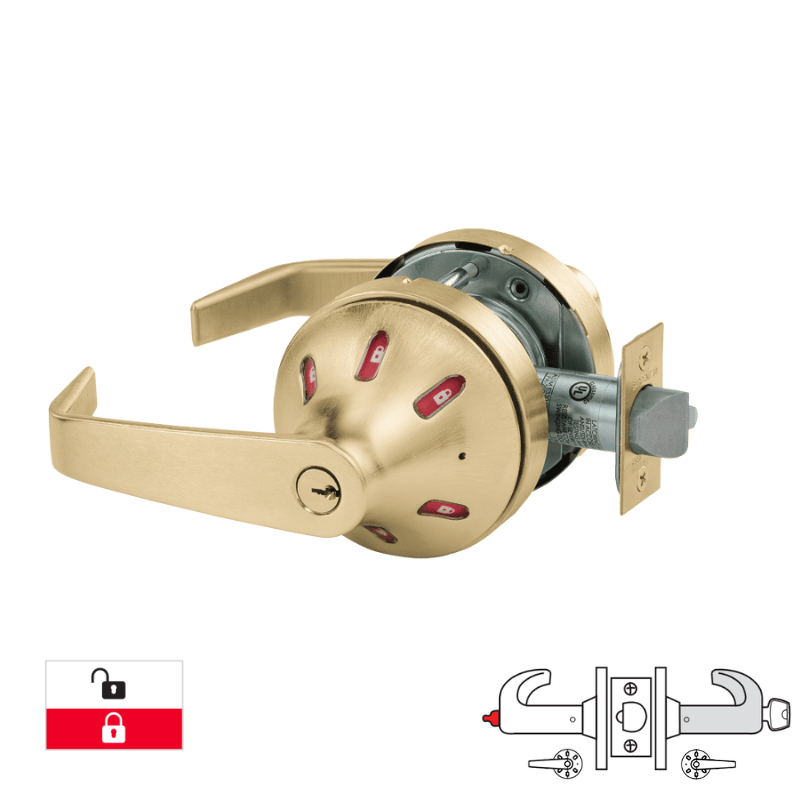

Sargent V66-10XG05-VSLL-US4-LAKD

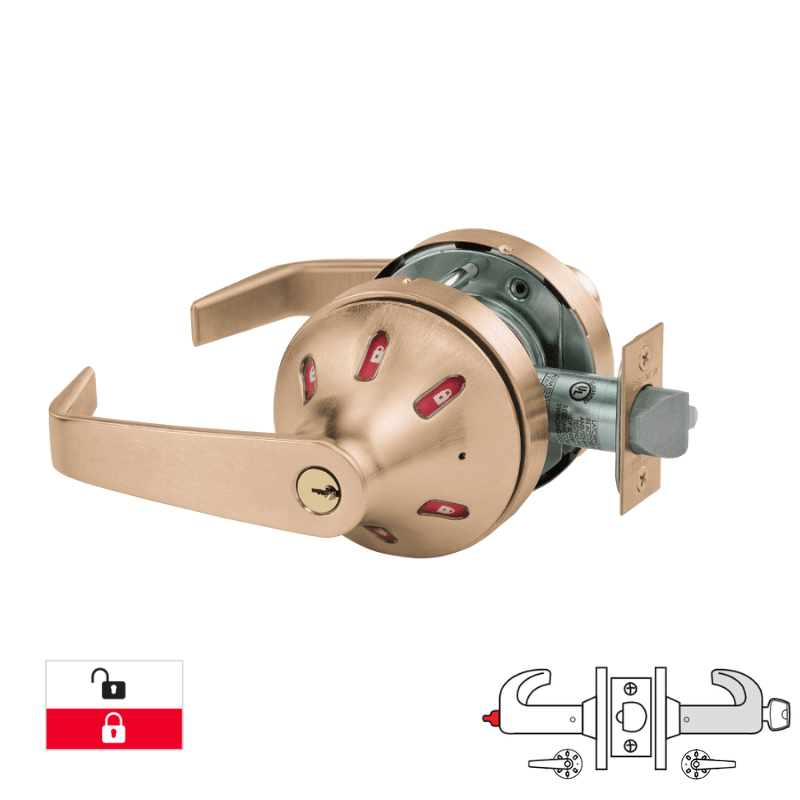

Sargent V66-10XG05-VSLL-US10-LAKD

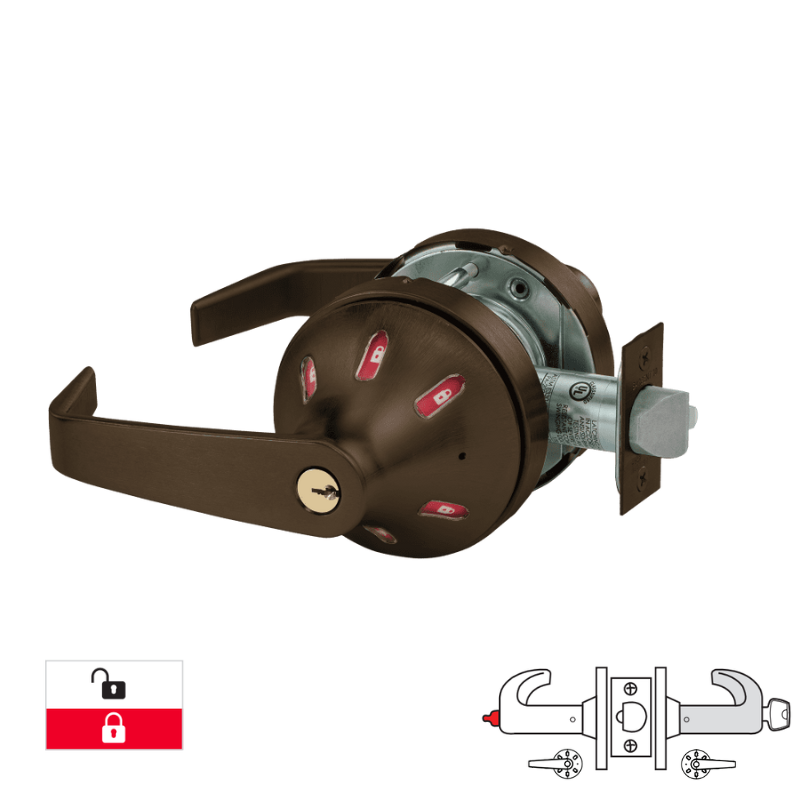

Sargent V66-10XG05-VSLL-US10B-LAKD
Sargent V66-10XG05-VSLL-US10BE-LAKD
Sargent V66-10XG05-VSLL-US15-LAKD
Sargent V66-10XG05-VSLL-US26-LAKD

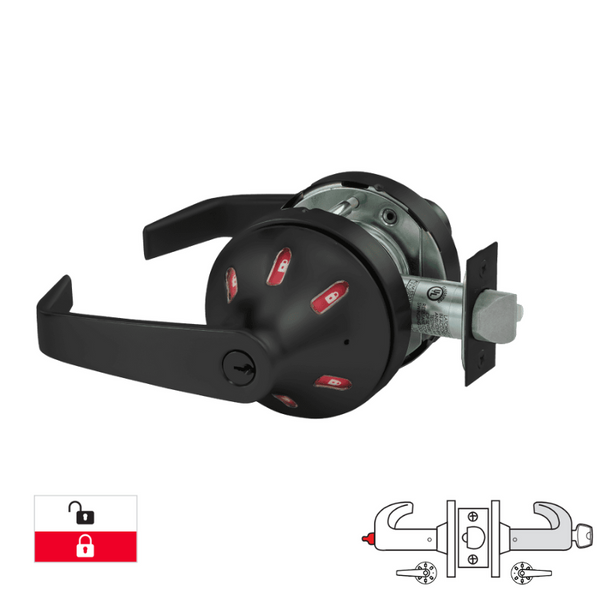

Sargent V66-10XG05-VSLL-BSP-LAKD
Sargent V66-10XG05-VSLL-WSP-LAKD
Sargent V66-10XG05-VSLL-US26D-LAKD
Sargent V66-10XG05-VSLL-LAKD Office Function Cylindrical Lock, Visual Indicator Trim Both Side, White/Red, LA Keyway Keyed Random
Sargent V66-10XG05-VSLL-LAKD Office Function Cylindrical Lock, Visual Indicator Trim Both Side, White/Red, LA Keyway Keyed Random
Sargent V66-10XG05-VSLL-US3-LAKD
Sargent V66-10XG05-VSLL-US4-LAKD
Sargent V66-10XG05-VSLL-US10-LAKD
Sargent V66-10XG05-VSLL-US10B-LAKD
Sargent V66-10XG05-VSLL-US10BE-LAKD
Sargent V66-10XG05-VSLL-US15-LAKD
Sargent V66-10XG05-VSLL-US26-LAKD
Sargent V66-10XG05-VSLL-BSP-LAKD
Sargent V66-10XG05-VSLL-WSP-LAKD
All SARGENT Products

Sargent V66-10XG05-VSLL-LAKD Office Function Cylindrical Lock, Visual Indicator Trim Both Side, White/Red, LA Keyway Keyed Random

  • SKU: V6610XG05VSLLUS26DLAKD
$609.92/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent V66-10XG05-VSLL-LAKD Office F...
Quantity
–
+
From $609.92
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From $384.60
Total

Sargent V66-10XG05-VSLL-LAKD Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Both Side, White/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent V66-10XG05-VSLL-LAKD is a Grade 1 office function cylindrical lock featuring a "VSL" rose and "L" lever design. It includes a visual indicator trim on both sides in white/red, with a 2 3/4" backset and 4 7/8" strike. This model comes with an LA keyway, randomly keyed, and includes two keys for secure and reliable access control.

Entrance or Office Function:

  • Deadlocking latch
  • Latch by either lever unless outside lever is locked by push/turn button in inside lever
  • Push button released by key outside or lever inside
  • Turn button must be released manually
  • Key retracts latch when outside lever is locked
  • ANSI/BHMA F109

Double Indicator:

Option Code Outside Inside  Color
V33 Indicator Trim Indicator Trim  Green/Red - Icon
V66 Indicator Trim Indicator Trim  White/Red - Icon
V77 Indicator Trim  Indicator Trim Green/Red - Icon
V88 Indicator Trim  Indicator Trim White/Red - Icon
Manufacturer Sargent
SKU V66-10XG05-LAKD VSLL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 05-Entrance or Office
Function Family Privacy
Lever/Knob Design L Lever
Rose/Escutcheon Design VSL Rose
Cylinder Type LA Keyway Keyed Random [2] Keys
Handing Non-handed
Door Thickness 1-3/4" to 2"
Bore Hole Diameter 2-1/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
