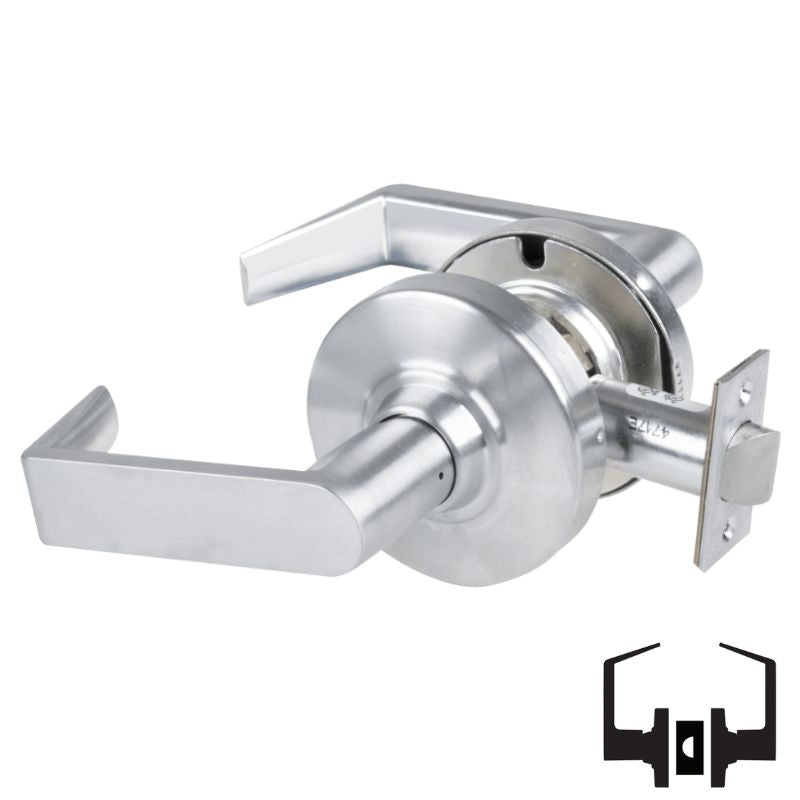

The Schlage ALX10-RHO delivers professional-grade passage control with its robust cylindrical design and Rhodes lever styling. This Grade 2 lock features field-selectable Vandlgard protection, accommodating standard 2-3/4 inch backsets and 4-7/8 inch ASA strikes. Non-keyed operation makes it ideal for interior applications where access control isn't required, while its non-handed configuration simplifies installation across various door orientations. Built for commercial durability and reliability.
ALX10 Non-Keyed Function, Passage Latch
| Manufacturer | Schlage |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL |
| ANSI Number | A156.2-2011 Series 4000, Grade 2 |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Function |
10 Passage Latch |
| Function Family | Passage |
| ANSI Function |
F75 - Passage |
| Lever/Knob Design | RHO - Rhodes Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Dimensions |
3-7/16" Rose Diameter |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/8 In. - 1-3/4 In. |
| Std. Latch Number | 47267038 |
| Std. Latch Type | Springlatch |
| Std. Latch Backset Dim | 2-3/4 In. |
| Latch Bore Diameter | 7/8 In. |
| Lock Face Size | 1-1/8 In. x 2-1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 47267101 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Cylindrical Lock |
