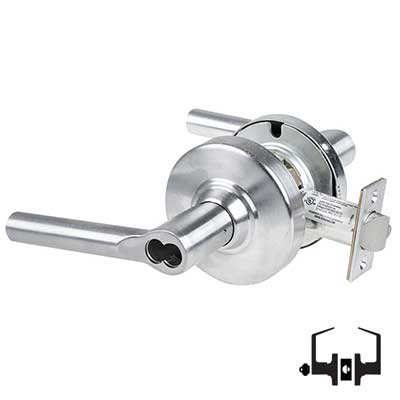

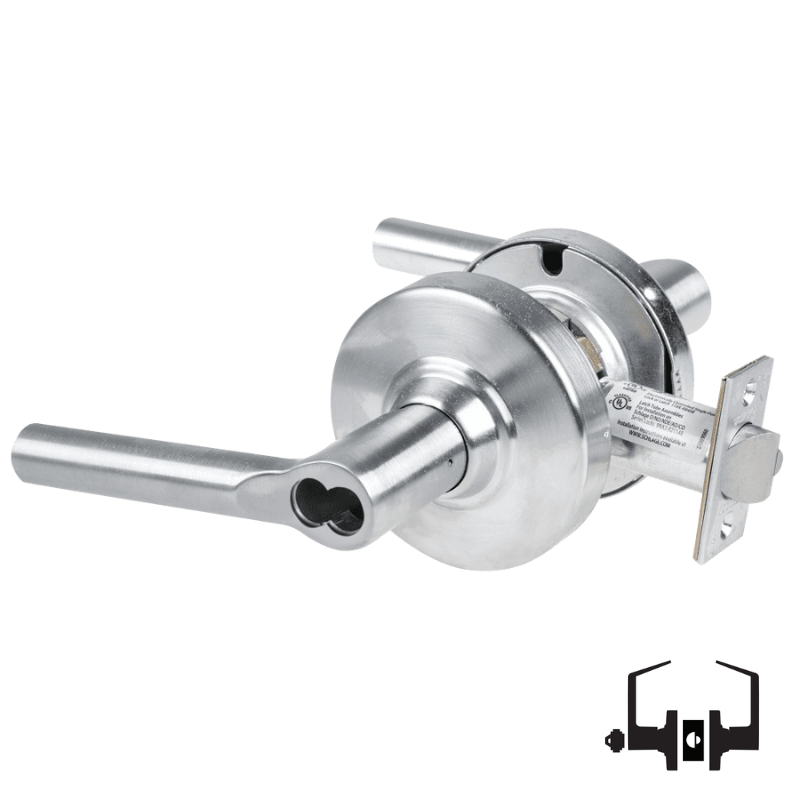

Schlage ALX70-B-BRW Classroom Cylindrical Lock, Field Selectable Vandlgard, Broadway Lever, Accepts SFIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed
This Schlage classroom lock combines institutional-grade security with practical design features suited for educational facilities. The Broadway lever offers a refined aesthetic while maintaining robust performance standards. Field Selectable Vandlgard technology provides adaptable protection against deliberate damage, while SFIC compatibility streamlines core replacement and rekeying procedures. Rated Grade 2 for reliable durability in high-traffic environments, the lock accommodates standard 2-3/4 inch backsets and works equally well on left or right-hand doors. Supplied without core for flexible keying options, making it an efficient choice for schools and institutional applications requiring professional-quality access control.
ALX70 Single Cylinder Deadbolt Function, Classroom lock
- Key cylinder outside; plain lever inside; deadlatch
- Key in outside lever locks or unlocks outside lever
- Field selectable Vandlgard® feature
- Inside lever always free for immediate egress
| Manufacturer | Schlage |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL |
| ANSI Number | A156.2-2011 Series 4000, Grade 2 |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Function | 70-Classroom Lock |
| Function Family | Classroom |
| ANSI Function |
F84 - Classroom |
| Lever/Knob Design | BRW Broadway Lever |
| Lever/Knob Design Family | Straight Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | Rhodes |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins | 6 to 7 |
| Handing | Non-handed |
| Door Thickness | 1-3/8 In. - 1-3/4 In. |
| Std. Latch Number | 47267042 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4 In. |
| Latch Bore Diameter | 7/8 In. |
| Lock Face Size | 1-1/8 In. x 2-1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 47267101 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Cylindrical Lock |
