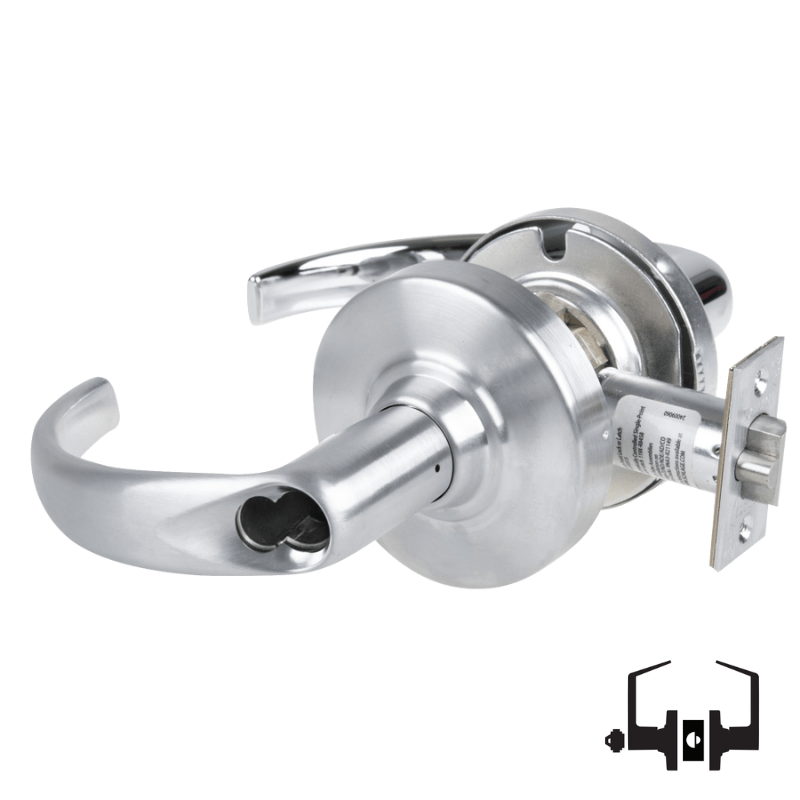

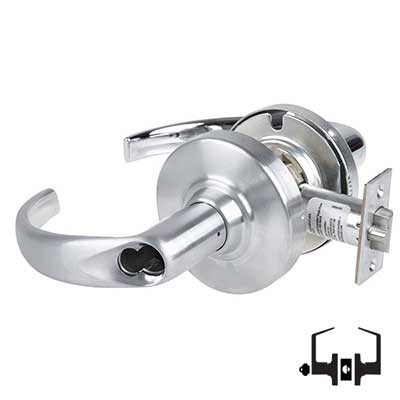

The Schlage ALX70B-SPA delivers institutional-grade security for educational environments. This Grade 2 cylindrical lock features a Sparta lever design and accommodates SFIC cores, offering flexibility in key management. With a 2-3/4 inch backset and 4-7/8 inch strike, it installs seamlessly into standard classroom door frames. Field-selectable Vandlgard protection deters tampering, while the non-handed configuration simplifies inventory management across multiple installations. Built for durability in high-traffic settings, this lock combines reliable performance with the professional specifications educators and facility managers demand.
ALX70 Single Cylinder Deadbolt Function, Classroom lock
| Manufacturer | Schlage |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL |
| ANSI Number | A156.2-2011 Series 4000, Grade 2 |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Function | 70-Classroom Lock |
| Function Family | Classroom |
| ANSI Function |
F84 - Classroom |
| Lever/Knob Design | SPA Sparta Lever |
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | Rhodes |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins | 6 to 7 |
| Handing | Non-handed |
| Door Thickness | 1-3/8 In. - 1-3/4 In. |
| Std. Latch Number | 47267042 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4 In. |
| Latch Bore Diameter | 7/8 In. |
| Lock Face Size | 1-1/8 In. x 2-1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 47267101 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Cylindrical Lock |
