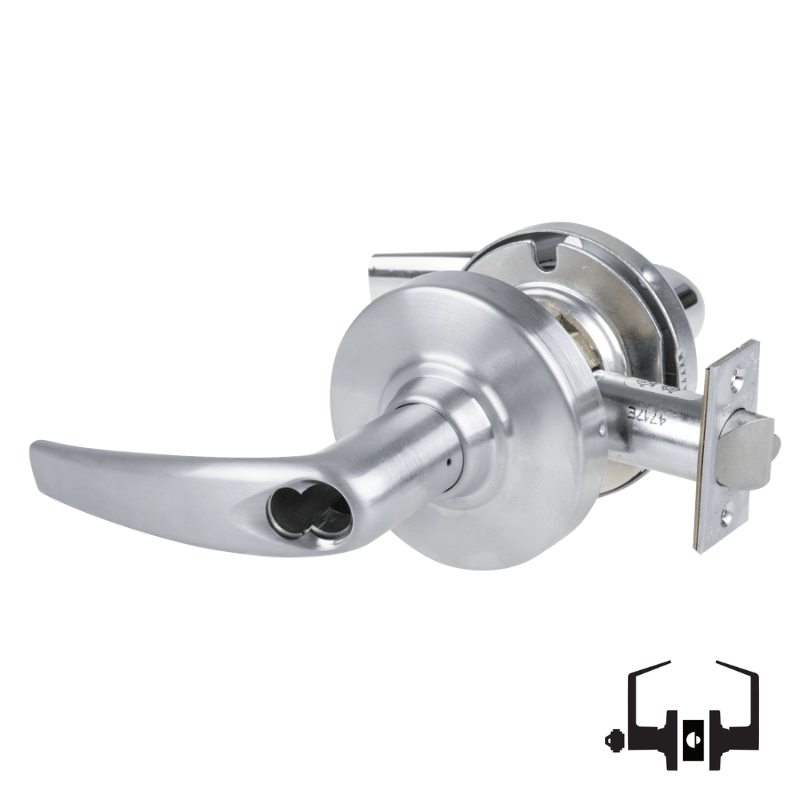

Schlage ALX80J-ATH Storeroom Cylindrical Lock, Athens Lever, FSIC Less Core

  • SKU: ALX80JATH626
Schlage ALX80-J-ATH-626
Schlage ALX80-J-ATH-626
SchlageALX80
Schlage_ALX-ATH
Schlage ALX80-J-ATH-605
Schlage ALX80-J-ATH-606
Schlage ALX80-J-ATH-612
Schlage ALX80-J-ATH-613
Schlage ALX80-J-ATH-619
Schlage ALX80-J-ATH-622
Schlage ALX80-J-ATH-625
Schlage ALX80-J-ATH-643E
All SCHLAGE Products

Schlage ALX80J-ATH Storeroom Cylindrical Lock, Athens Lever, FSIC Less Core

  • SKU: ALX80JATH626
  • ✓
    In Stock
    In Stock
Your Price
$268.81 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX80J-ATH Storeroom Cylindri...
Quantity
–
+
From $268.81
Schlage 23-030 C, FSIC Core, 6 Pin, C...
Quantity
–
+
From $93.28
Schlage 35-056-C Control Key Blank, E...
Quantity
–
+
$12.44
Total

Schlage ALX80-J-ATH Storeroom Cylindrical Lock, Field Selectable Vandlgard, Athens Lever, Accepts Schlage Large Format FSIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

The Schlage ALX80J-ATH delivers commercial-grade security for storeroom applications with its robust cylindrical lock design. Featuring the elegant Athens lever and Field Selectable Interchangeable Core (FSIC) compatibility, this Grade 2 lock accommodates Schlage's large format cores for flexible key management. The non-handed configuration suits any door orientation, while the 2-3/4 inch backset and 4-7/8 inch strike ensure reliable installation on standard commercial doors. Built with Vandlgard protection against forced entry, this storeroom lock combines durability with professional-grade performance for demanding institutional and commercial environments.

ALX80 Single Cylinder Deadbolt Function, Storeroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Outside lever always fixed
  • Key can retract the latch
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 80 Storeroom Lock
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design ATH Athens Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Schlage FSIC Prep Less Core
Num Pins 6
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock

Product Cut Sheet
