Schlage ALX80J-LON Storeroom Cylindrical Lock, Longitude Lever, FSIC Less Core

  • SKU: ALX80JLON626
  • ✓
    In Stock
    In Stock
Your Price
$268.81 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX80J-LON Storeroom Cylindri...
Quantity
–
+
From $268.81
Schlage 23-030 C, FSIC Core, 6 Pin, C...
Quantity
–
+
From $93.28
Schlage 35-056-C Control Key Blank, E...
Quantity
–
+
$12.44
Total

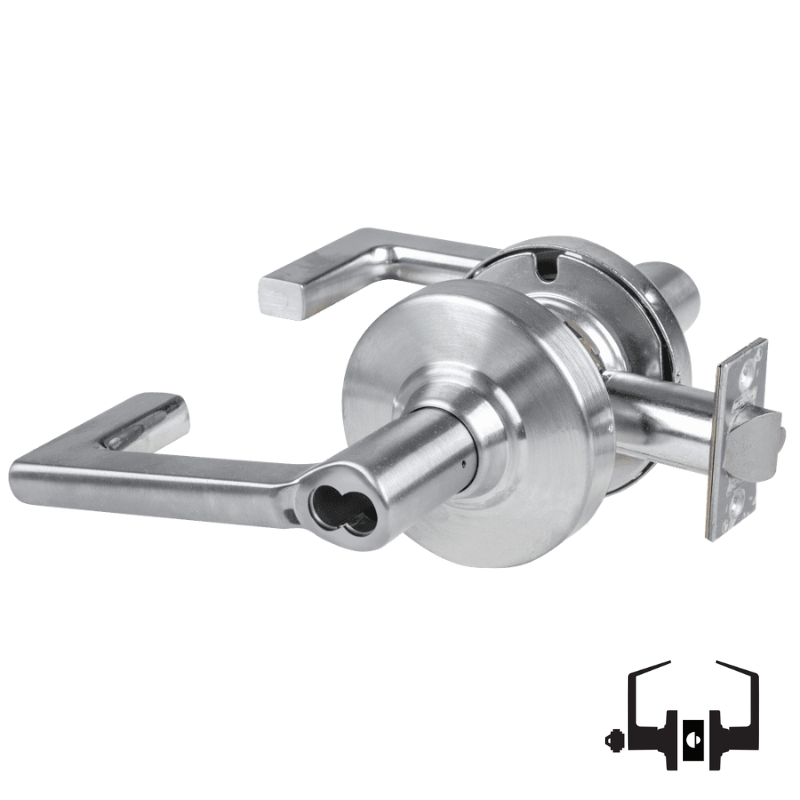

Schlage ALX80-J-LON Storeroom Cylindrical Lock, Field Selectable Vandlgard, Longitude Lever, Accepts Schlage Large Format FSIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

Schlage's ALX80J-LON storeroom cylindrical lock delivers commercial-grade security with expert-level flexibility. This Grade 2 lock features a Longitude lever design and accepts Schlage's Large Format FSIC cores, allowing you to customize security configurations to your specific access control needs. The non-handed construction simplifies installation across multiple door orientations, while the 2-3/4 inch backset and 4-7/8 inch strike accommodate standard commercial door preparations. Field-selectable Vandlgard functionality provides adjustable security levels for varying threat environments. Supplied less core, this lock integrates seamlessly into existing Schlage key systems and institutional security frameworks.

ALX80 Single Cylinder Deadbolt Function, Storeroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Outside lever always fixed
  • Key can retract the latch
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 80 Storeroom Lock
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design LON Longitude Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Schlage FSIC Prep Less Core
Num Pins 6
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock

Product Cut Sheet
