Schlage ALX80J-RHO Storeroom Cylindrical Lock, Rhodes Lever, FSIC Less Core

  • SKU: ALX80JRHO626
Schlage ALX80-J-RHO-626
Schlage ALX80-J-RHO-626
SchlageALX80
SchlageALX RHO
Schlage ALX80-J-RHO-605
Schlage ALX80-J-RHO-606
Schlage ALX80-J-RHO-612
Schlage ALX80-J-RHO-613
Schlage ALX80-J-RHO-619
Schlage ALX80-J-RHO-622
Schlage ALX80-J-RHO-625
Schlage ALX80-J-RHO-643E
All SCHLAGE Products

Schlage ALX80J-RHO Storeroom Cylindrical Lock, Rhodes Lever, FSIC Less Core

  • SKU: ALX80JRHO626
  • ✓
    In Stock
    In Stock
Your Price
$268.81 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX80J-RHO Storeroom Cylindri...
Quantity
–
+
From $268.81
Schlage 23-030 C, FSIC Core, 6 Pin, C...
Quantity
–
+
From $93.28
Schlage 35-056-C Control Key Blank, E...
Quantity
–
+
$12.44
Total

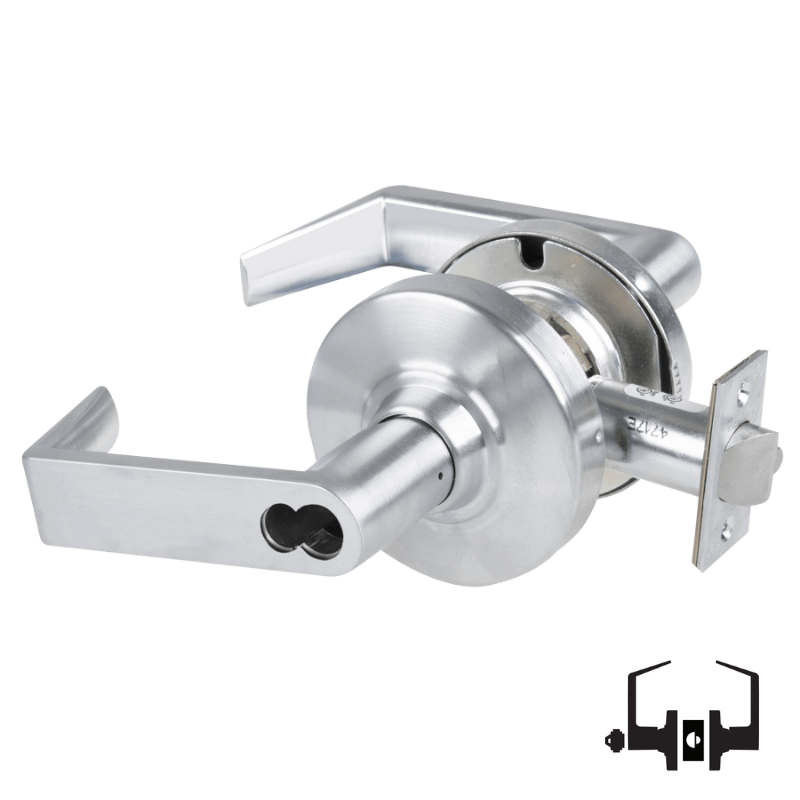

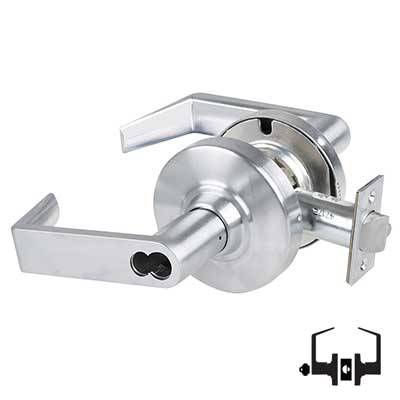

Schlage ALX80-J-RHO Storeroom Cylindrical Lock, Field Selectable Vandlgard, Rhodes Lever, Accepts Schlage Large Format FSIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

The Schlage ALX80J-RHO delivers commercial-grade security for storeroom applications with its robust cylindrical lock design. Featuring a Rhodes lever and Field Selectable Interchangeable Core (FSIC) compatibility, this Grade 2 lock accommodates Schlage's large format core system for flexible key management. The non-handed configuration suits both left and right-hand doors, while the 2-3/4 inch backset and 4-7/8 inch strike ensure reliable installation across standard door frames. Built to withstand demanding environments, this lock provides dependable access control without the core included.

ALX80 Single Cylinder Deadbolt Function, Storeroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Outside lever always fixed
  • Key can retract the latch
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 80 Storeroom Lock
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design RHO Rhodes Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Schlage FSIC Prep Less Core
Num Pins 6
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
