Description

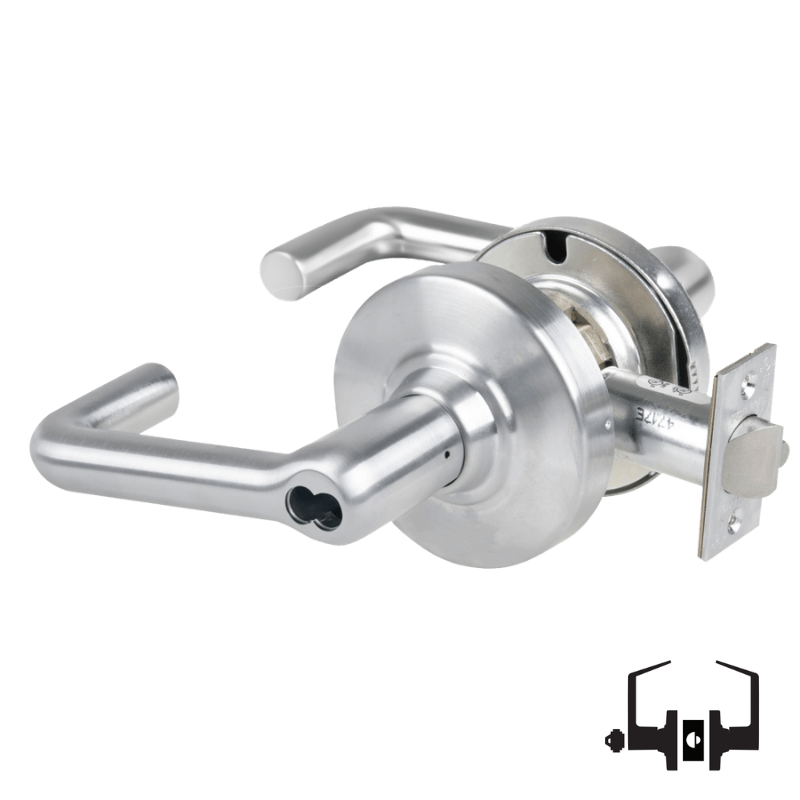

Schlage ALX80-J-TLR Storeroom Cylindrical Lock, Field Selectable Vandlgard, Tubular Lever, Accepts Schlage Large Format FSIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed
Schlage's ALX80J-TLR storeroom cylindrical lock delivers commercial-grade security with field-selectable Vandlgard protection and a non-handed tubular lever design. Compatible with Schlage Large Format FSIC cores, this Grade 2 lock features a 2-3/4 inch backset and 4-7/8 inch strike, making it ideal for flexible institutional applications. Supplied less core for customizable keying solutions.
ALX80 Single Cylinder Deadbolt Function, Storeroom lock
- Key cylinder outside; plain lever inside; deadlatch
- Outside lever always fixed
- Key can retract the latch
- Field selectable Vandlgard® feature
- Inside lever always free for immediate egress
Product Specs
| Manufacturer | Schlage |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL |
| ANSI Number | A156.2-2011 Series 4000, Grade 2 |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specs
| Function | 80 Storeroom Lock |
| Function Family | Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design | TLR Tubular Lever |
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | Rhodes |
| Cylinder Type |
Schlage FSIC Prep Less Core |
| Num Pins | 6 |
| Handing | Non-handed |
| Door Thickness | 1-3/8" - 1-3/4" |
| Std. Latch Number | 47267042 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8 In. |
| Lock Face Size | 1-1/8 In. x 2-1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 47267101 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
