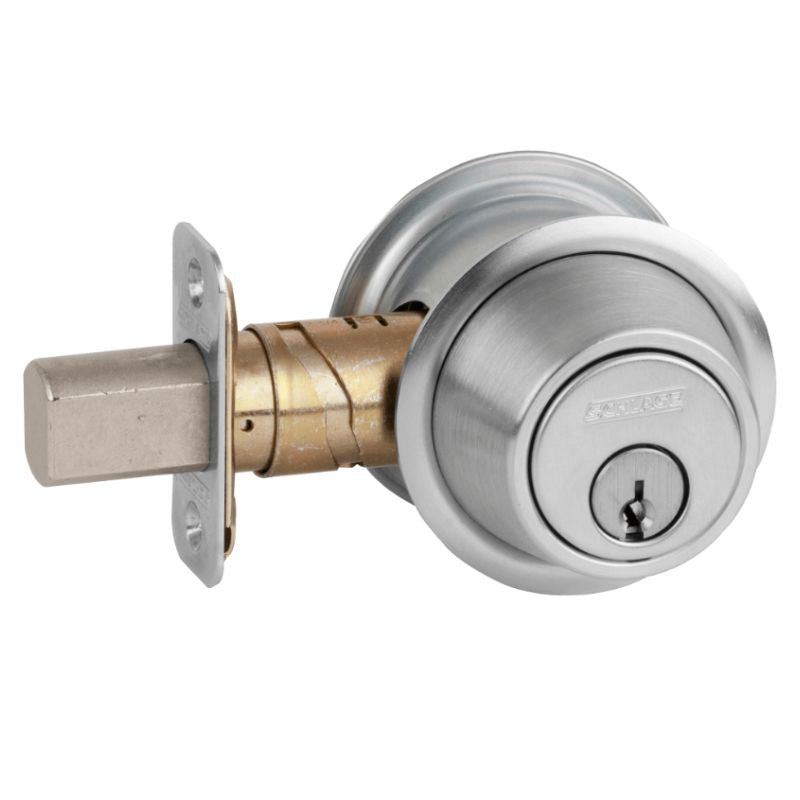

The Schlage B560-P-626 Single Cylinder Deadbolt features a 6 pin cylinder and Schlage "C" keyway, along with [2] keys. It also has an adjustable 2-3/8" and 2-3/4" backset, making it a grade 2 product with a satin chrome finish.
Schlage B500 Series Overview
Commercial Grade Deadbolts

A revolutionary new deadbolt that delivers higher security and tougher performance.
Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.
Adjustable backset with lock-in-place helix design
Integrated anti-pry shield protects latch
Thicker metal security strike back-up on jamb side
Security strike on jamb has third screw for stronger, deeper anchoring
Added space inside strike box for true deadlatch
Seamless steel latch construction along the entire length of the bolt housing
10% larger diameter deadbolt
Zinc bolt with spinning hardened steel pin inside
Tapered front housing that can’t be unscrewed
Integrated trim piece for fewer pieces out of the box
Large, easy-to-use, ADA compliant thumbturn
Meets UL 10B andd UL 10C requirements
| Manufacturer | Schlage |
| SKU | B560P 626 |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Finish | |
| Finish |
626/US26D |
| Finish Description | Satin Chrome |
| Function |
560-Single Cylinder Deadbolt Lock |
| ANSI Function |
E0152 - Single Cylinder Deadbolt |
| Cylinder Type |
SFIC Prep Less Core |
| Door Thickness | 1-5/8 In. - 2 In. |
| Std. Latch Number | 12-287 |
| Std. Latch Type | Deadbolt |
| Std. Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In. |
| Lock Face Size | 2-1/4 In. x 1 In. |
| Bolt Projection | 1 In. |
| Std. Strike Number | 10-094 |
| Std. Strike Type | Flat |
| Std. Strike Height | 2-3/4 In. |
| Std. Strike Width | 1-1/8 In. |
| Dust Box | None |
| Product Type | Deadbolts |
