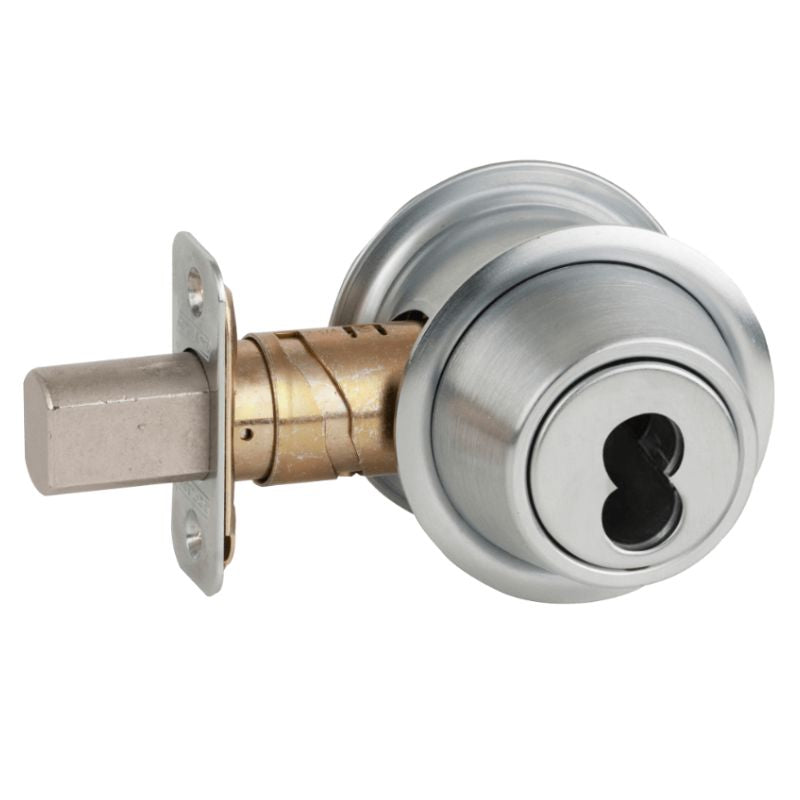

Schlage B561-B-626 Deadbolt features an SFIC Prep Less Core and an adjustable 2-3/8" and 2-3/4" backset for Grade 2 security. Finished with a sleek satin chrome, it offers durability and reliability.
Schlage B500 Series Overview
Commercial Grade Deadbolts

A revolutionary new deadbolt that delivers higher security and tougher performance.
Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.
Adjustable backset with lock-in-place helix design
Integrated anti-pry shield protects latch
Thicker metal security strike back-up on jamb side
Security strike on jamb has third screw for stronger, deeper anchoring
Added space inside strike box for true deadlatch
Seamless steel latch construction along the entire length of the bolt housing
10% larger diameter deadbolt
Zinc bolt with spinning hardened steel pin inside
Tapered front housing that can’t be unscrewed
Integrated trim piece for fewer pieces out of the box
Large, easy-to-use, ADA compliant thumbturn
Meets UL 10B andd UL 10C requirements
| Manufacturer | Schlage |
| SKU | B561B 626 |
| Grade | Grade 3 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Finish | |
| Finish |
626/US26D |
| Finish Description | Satin Chrome |
| Function |
561-One-Way Deadbolt Lock |
| ANSI Function |
E0162 - One Way Deadbolt |
| Cylinder Type |
SFIC Prep Less Core |
| Door Thickness | 1-5/8 In. - 2 In. |
| Std. Latch Number | 12-287 |
| Std. Latch Type | Deadbolt |
| Std. Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In. |
| Lock Face Size | 2-1/4 In. x 1 In. |
| Bolt Projection | 1 In. |
| Std. Strike Number | 10-094 |
| Std. Strike Type | Flat |
| Std. Strike Height | 2-3/4 In. |
| Std. Strike Width | 1-1/8 In. |
| Dust Box | None |
| Product Type | Deadbolts |
