Schlage CO100MS70KPLAT643EBR Electronic Mortise Lock, Classroom/Storeroom Function, Keypad Reader, Latitude Lever, SFIC, Right Handed, Aged Bronze


Schlage CO100MS70KPLAT643EBR Electronic Mortise Lock, Classroom/Storeroom Function, Keypad Reader, Latitude Lever, SFIC, Right Handed, Aged Bronze

Sale price$950.84/ea
In Stock
In Stock
Visa Mastercard American Express Discover Shop Pay Apple Pay

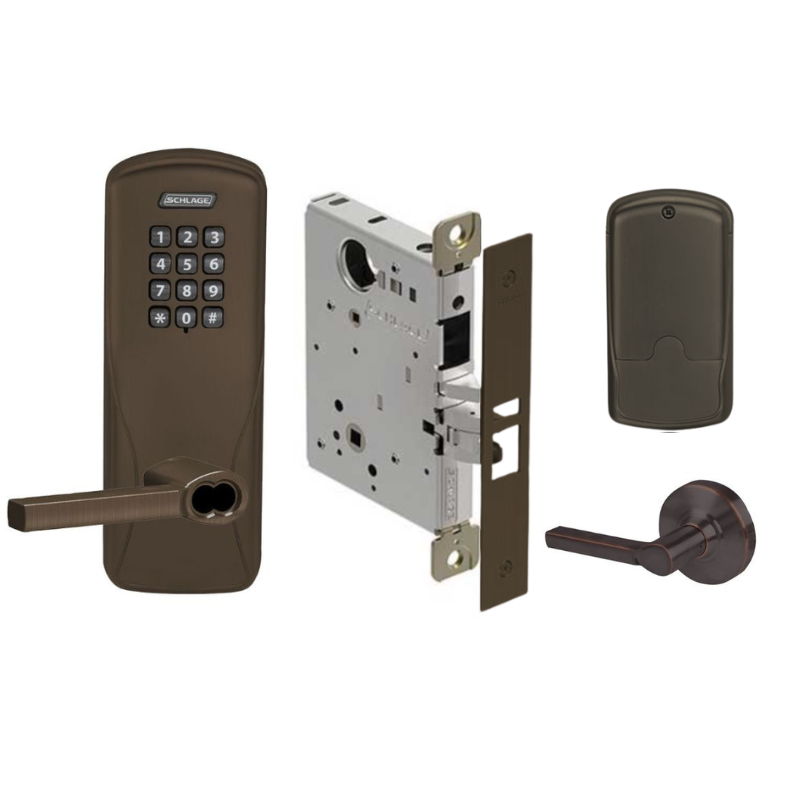

The Schlage CO100MS70KPLAT643EBR  is a Standalone Electronic Mortise Lock, in Classroom/Storeroom Function, that has a Keypad Reader, a Latitude Lever, is SFIC Prepped, is Sold Less Core, is Right Handed, and comes in 643E Aged Bronze Finish.

CO Series Standalone Electronic Locks

CO-200 offline lock offers credential reader module options, managing up to 2000 users and audits.

The CO Series offers ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system.

The CO-200 steps up significantly in functionality from CO-100 keypad programmable locks. It can be manually or computer programmed with downloads occurring at the lock via the SUS mobile app on a compatible Android device. Credential use can include 3-6 digit PIN, proximity and magnetic stripe cards; dual authentication card + PIN readers are available for extra security. More importantly, this lock offers up to 2000 users with audit capability to note the who, where and when of building or room access.

CO-200 can work in the same offline system as AD-200, CO-220 and CT5000. They can be manually programmed for basic use or managed with PC-based Schlage Express™ software. Select Software Alliance members also offer access control solutions for the CO-200 with added capability that can include lock schedules and audits. Features and capabilities will vary by system; please visit the Software Management tab for additional details.

Reader options

  • Proximity reader (125 kHz)

  • Proximity reader with keypad

  • Magnetic stripe reader in swipe style (triple track, field configurable)

  • Magnetic stripe reader with keypad in swipe style

  • Keypad only

User Verification

  • Capable of credential verification <1 second

  • Up to 2,000 users/audits depending on access control software

Programming interface

  • Schlage Utility Software (SUS) with compatible Android device transfers programming information from computer to lock using the SUS-A cable connection

  • Schlage Express PC-based software or Software Alliances member solutions provide access control management for users, audits and locks


  • Battery life - up to 2 years with 4 AA batteries

  • Exterior Temp: -31° to 151°F (-35° to 66°C)

  • Interior Temp: 32° to 120°F (0° to 49°C) (battery)

  • Humidity: 0 - 100% non-condensing


  • Cylindrical

  • Mortise

  • Mortise deadbolt

  • Exit trim

  • Each offered with LED indicator or push button depending on lock function choice

Cylinder and keys

  • Standard keyway: Schlage 6-pin Everest 29 S123 with two patented keys

  • Classic and restricted keyways, master keying and grand master keying options

  • Key-in-lever, FSIC, and SFIC cylinder options

  • Less cylinder options to fit common Sargent®, Corbin Russwin®, Medeco®, Yale® and Falcon® cylinders


  • 70 Classroom/Storeroom (cylindrical and mortise only)

  • 50 Office (cylindrical and mortise only)

  • 40 Privacy with programmable occupancy indication option

Manufacturer Schlage Electronics
Grade Grade 1
Installation Commercial
Unit of Measure Each
Base Material Brass or Bronze
Design A LAT - Latitude Lever
Finish 643E
Finish Description Aged Bronze

Access Function 70 - Classroom/Storeroom
Cylinder Type SFIC Prep Less Core
Hand Right Hand
Strike Type Mortise Strike
Power 4 AA Batteries
Product Type Mortise Locks with Keypad Trim
