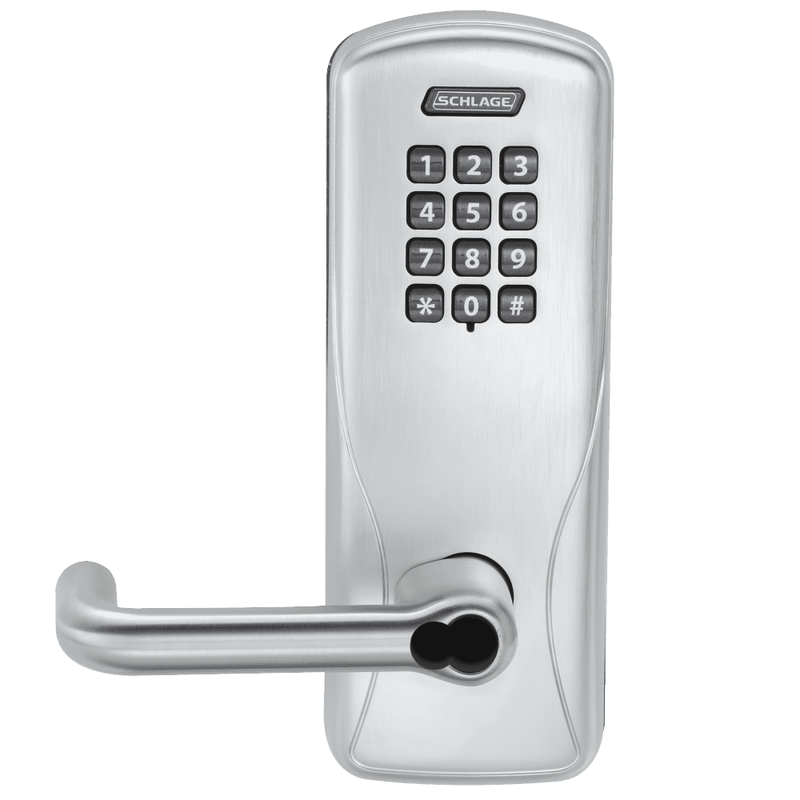

Schlage Electronics CO200MS70-KP-TLR-626-JR CO-200 Standalone Electronic Lock, Mortise, Classroom/Storeroom Function, Keypad Reader, Tubular Style Lever, Spring Latch, Schlage FSIC Prep Less Core, Grade 1, Right Hand, US26D Satin Chrome Finish

The Schlage Electronics CO200MS70-KP-TLR-626-JR is a Grade 1 standalone electronic mortise lock built for high-traffic commercial openings that demand reliable access control without the complexity of hardwired systems. It features an integrated keypad reader and a Tubular style lever (TLR), delivering keypad-based entry in a classroom/storeroom function. Designed for Schlage Full Size Interchangeable Core (FSIC) prep and supplied less core, it lets facilities standardize on their existing keying system. Finished in Satin Chrome (626/US26D) and configured for right-hand doors, this lock pairs durable mortise construction with programmable local access management, making it an ideal choice for schools, offices, and institutional environments.

Features

• Standalone electronic mortise lock requiring no hardwiring to the door frame.
• Integrated keypad reader for PIN-based credential entry.
• Classroom/storeroom function for controlled, secure access.
• Tubular style lever (TLR) for comfortable everyday operation.
• Schlage FSIC prep, shipped less core for seamless keying integration.
• Spring latch mortise chassis for dependable latching.
• Grade 1 ANSI/BHMA certification for heavy-duty performance.
• Right-hand configuration in a durable Satin Chrome finish.

Functional Details

In classroom/storeroom function, the outside lever is always locked and requires a valid credential or key to gain entry, while the inside lever always allows free egress. This keeps the opening secure at all times while supporting safe exit.

• Outside lever is always locked.
• Entrance by valid credential or key.
• Inside lever always allows free egress.

Arm Type Details

The Tubular style lever (TLR) provides a clean, ergonomic grip that is easy to operate for all users and complies with accessibility requirements for commercial door hardware.

Included Components

This unit ships as a complete standalone mortise lock with keypad reader and Tubular lever. It is prepped for a Schlage Full Size Interchangeable Core and is supplied less core, so the core is ordered separately to match your facility's keying system.
