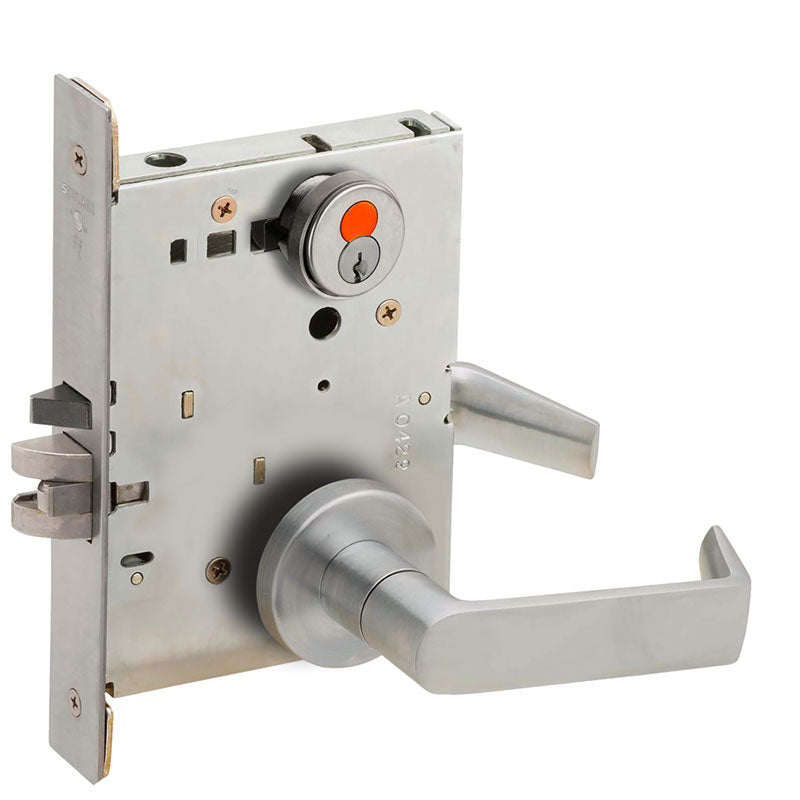

The Schlage L9080T 06A 626 is a Grade 1 storeroom function lock. This L9000 Series function is an 80 or storeroom function. A Storeroom function lock functions, Latchbolt retracted by lever/knob inside or key outside, Outside lever/knob is always inoperable, Auxiliary latch deadlocks latch bolt when the door is closed, Inside lever always free for immediate egress. The 06A is the 06 Straight Return lever and A Rose. Comes with a Schlage FSIC Construction Core, with No Keys. The L9080T is field reversible and not handed. The finish is a 626/US26D satin chrome finish.
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The ability to suite across electronic, tubular, exit trim, and multi-point locks allows the Schlage L Series mortise lock to integrate seamlessly into any environment.
Manufacturer | Schlage |
SKU | L9080T 06A 626 |
Grade | Grade 1 |
Installation | Commercial |
Origin | Mexico |
Unit of Measure | Each |
UL Listing Type | UL Listed |
ANSI Number | A156.13-2017 Series 1000 |
Limited Warranty | 3 Years |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
Finish | 626/US26D |
Finish Description | Satin Chrome |
Finish Family | Matte Silver |
Function | 9080-Storeroom |
Function Family | Storeroom |
ANSI Function |
F07 - Storeroom/Exit |
Lever/Knob Design |
06 Lever |
Lever/Knob Design Family | Straight Return Lever |
Rose/Escutcheon Design |
A Rose |
Rose/Escutcheon Dimensions | 2 1/8" |
Cylinder Type |
Schlage FSIC With Construction Core |
Num Pins | 6 |
Keying | Construction |
Num of Keys | Not Included |
Cylinder Length | 1 1/2" |
Cam Type | Schlage L |
Cam Number | L583-255 |
Handing | Field Reversible |
Door Thickness | 1 3/4" |
Std. Latch Type | Dead Latch (Guarded) |
Std. Latch Backset Dim | 2 3/4" |
Lock Face Size | 8" x 1 1/4" |
Bolt Projection | 3/4" Latch |
Std. Strike Number | 10-072 1316 626 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4 7/8" |
Std. Strike Width | 1 3/16" |
Dust Box | Plastic |
Screws | Combination |
Product Type | Mortise Lock |
