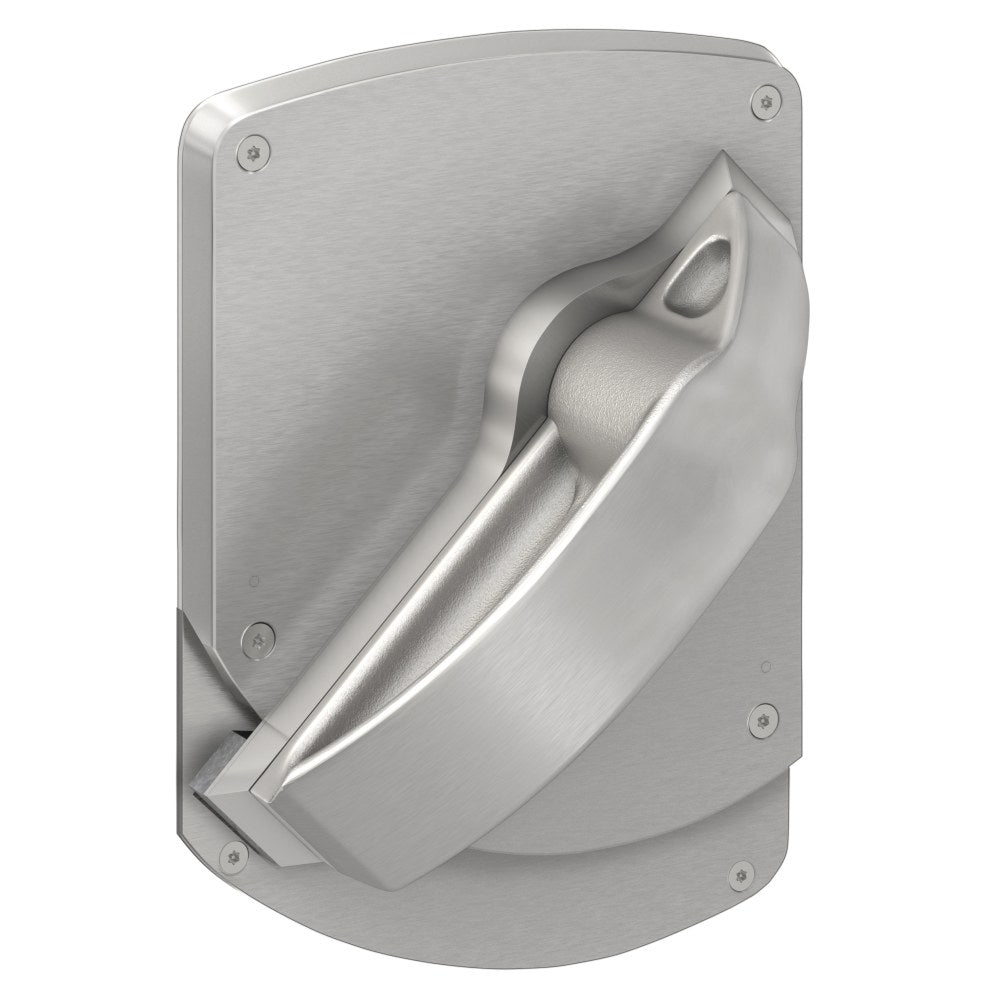

Schlage ND10S-HSLR-630 Ligature Resistant Cylindrical Latch, Passage Function, Non-Keyed, Satin Stainless Steel

  • SKU: ND10SHSLR630LH

Schlage ND10S-HSLR-630 Ligature Resistant Cylindrical Latch, Passage Function, Non-Keyed, Satin Stainless Steel

  • SKU: ND10SHSLR630LH
Sale price$1,588.13/ea
In Stock
In Stock
Handing: LH Left Hand
Choose Your Product Options:
Add Custom Gift Wrap? (+$5.00)
Add Gift Message?
Gift Message *
[Maximum 1000 character]
1000 Characters left

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Schlage ND10S-HSLR-630 Ligature Resis...
Quantity
+
$1,588.13
LCN 4040XP-RW/PA-TBSRT Super Smoothee...
Quantity
+
$411.89
Ives 5BB1 4.5X4.5 Ball Bearing Hinge
Quantity
+
$80.70
Total $2080.72

Technical Specs

Function 10-Passage Latch
Function Family Passage
ANSI Function F75 - Passage
Lever/Knob Design HSLR - High Security Ligature Resistant Trim
Lever/Knob Design Family Anti-Ligature Trim
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions 3-7/16"
Cylinder Type Non-Keyed
Door Thickness 1-5/8" to 2-1/8"
Std. Latch Number 13-248
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 1 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 10-025
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Wood/Machine Screws
Product Type Cylindrical Lock

Product Specs

Manufacturer Schlage
SKU ND10S HSLR 630
Grade Grade 1
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL Listed
ANSI Number ANSI A156.2 Series 4000, Grade 1
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes
Finish
Finish 630/US32D
Finish Description Satin Stainless Steel
Finish Family Matte Silver

Schlage ND10S HSLR 630 Passage Latch, High Security Ligature Resistant Trim, Non-Keyed, 2 3/4 Backset, 4 7/8 Strike, Grade 1, Satin Stainless Steel Finish

The Schlage ND10S-HSLR-630 Passage Latch boasts high security with its Ligature Resistant Trim, ensuring safety and peace of mind. Featuring a 2 3/4 inch backset and a 4 7/8 inch strike, this Grade 1 device is constructed with a durable satin stainless steel finish.

Features and Benefits

  • The highest level of ligature resistance to positively contribute to healing environments
  • Cylindrical and mortise options
  • “Paperclip Protection” designation as determined by NYS-OMH testing
  • Recommended for low, medium or high risk areas
  • ADA Compliant - ”no pinch, no grasp”
  • Variety of mortise and cylindrical functions available, including electrified
  • Supplied with Torx® security screws
  • Available in 630 finish
  • BAA compliant
  • Locks are ANSI/BHMA Grade 1 certified
  • UL Listed 3-hour

ND Series Lever Locks

Performance beyond Grade 1

The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, lever torque, hammer blow, lever pull and other tests. This means confidence that the lock will last—whether the application calls for high abuse resistance or just operation over millions of cycles— without any degradation in performance.

Comprehensive offering for every opening

Mechanical, wired electrified and wireless electronic solutions allow a common aesthetic and consistent user experience throughout the building while lowering the total cost of ownership.

World-class design

A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any applications.

ND Mechanical Overview

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

  • Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks

  • 31 mechanical functions

  • Nine lever designs, two rose designs

  • 10 available finishes

  • Supports standard, SFIC and FSIC cylinder formats

  • Multiple key systems available – open, patented, restricted, geographic exclusive, UL437

  • Support for 10 non-Schlage cores
