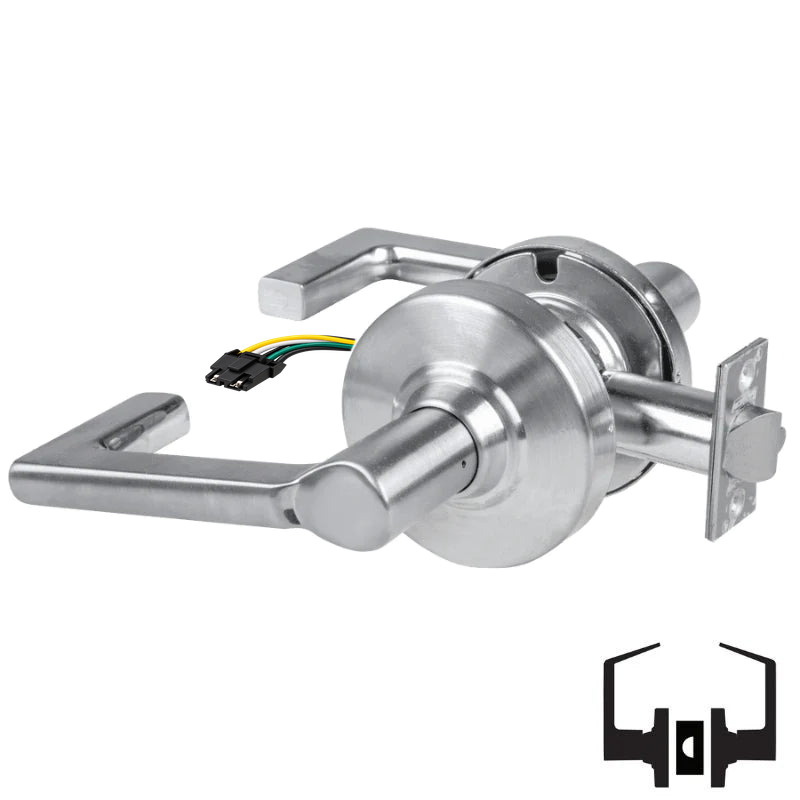

The Schlage ND10S-LON-RX brings together durable Grade 1 construction and a built-in Request-to-Exit switch, making it a smart choice for openings that need reliable passage function with electronic monitoring. This non-keyed passage set features the sleek Longitude lever and is part of Schlage's heavy-duty ND Series, engineered for high-traffic commercial environments. The latch is always free from both sides, allowing unobstructed passage, while the integrated RX switch signals when the lever is operated. Supplied with a 2-3/4 inch backset and a 4-7/8 inch strike, this non-handed lockset installs easily on standard commercial doors and delivers dependable, long-term performance.
Features
Functional Details
The ND10S passage function provides unrestricted entry and exit, as both levers always retract the latch. The added RX switch senses lever movement and sends a signal to a connected access control or monitoring system, letting you track door usage without affecting mechanical operation.
Included Components
The set includes the cylindrical chassis with Longitude levers, latch, strike, and mounting hardware for a complete installation.
| Manufacturer | Schlage |
| SKU | ND10S-LON-RX |
| Series | ND Series |
| Lever Style | Longitude (LON) |
| Function | Passage, Non-Keyed |
| Grade | ANSI/BHMA Grade 1 |
| Handing | Non-Handed |
| Origin | Made in USA |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | Three-Year Limited Warranty |
| Backset | 2-3/4 inch |
| Strike Size | 4-7/8 inch |
| Chassis Type | Cylindrical |
| Door Thickness Range | 1-3/8 inch to 2 inch (standard) |
| Latch Bolt Throw | 1/2 inch |
| ANSI Standard | ANSI/BHMA A156.2, Series 4000 |
| Cross-Bore | 2-1/8 inch |
| Edge Bore | 1 inch |
| Switch Type | Request-to-Exit (RX) |
| Keyed | Non-Keyed |
