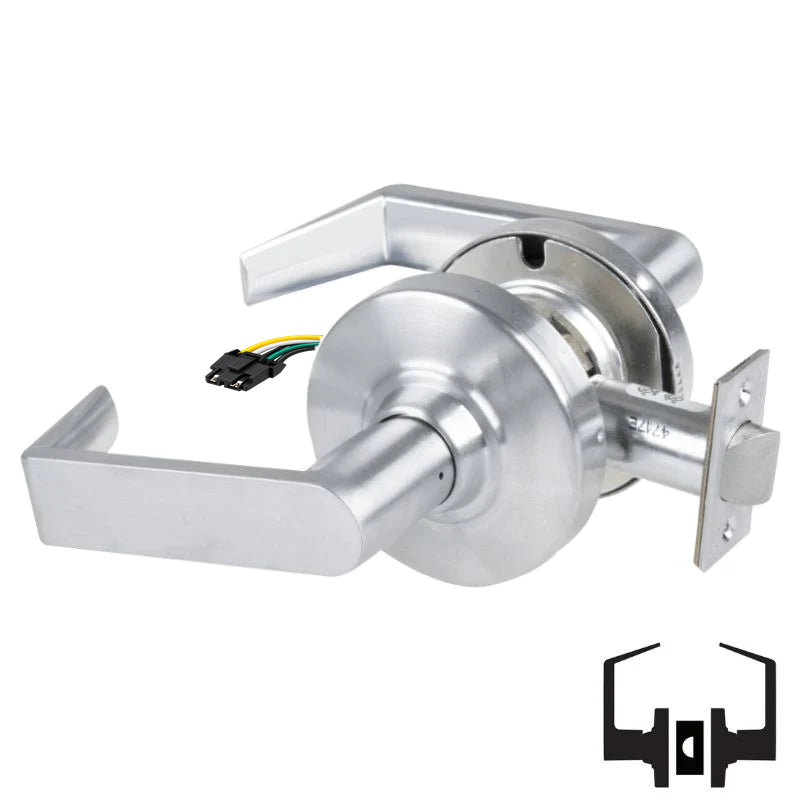

The Schlage ND10S-RHO-RX is a Grade 1 cylindrical passage set built for high-traffic commercial openings that need reliable latching without keyed locking. Featuring the clean, contemporary Rhodes lever and a built-in Request-to-Exit (RX) switch, this non-keyed set signals access control and security systems when the interior lever is operated, making it ideal for monitored egress applications. The latch retracts freely from either side at all times, so the door is never locked. With a 2-3/4 inch backset, a 4-7/8 inch strike, and non-handed construction, it installs on virtually any standard door. Part of Schlage's durable ND Series, it delivers dependable performance in institutional, healthcare, and office environments.
Features
Functional Details
The ND10S passage function keeps the door unlocked at all times, with both levers always active to retract the latch. The RX switch monitors interior lever movement and reports that activity to a connected security or access control system.
Included Components
The set includes the cylindrical chassis with Rhodes levers, the latch assembly, strike, and the factory-installed Request-to-Exit switch wiring for integration with monitoring systems.
| Manufacturer | Schlage |
|---|---|
| SKU | ND10S-RHO-RX |
| Series | ND Series |
| Function | Passage, Non-Keyed with Request-to-Exit |
| Lever Style | Rhodes |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Origin | Made in USA |
| Unit of Measure | Each |
| ANSI Number | F75 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
| Backset | 2-3/4 inch |
|---|---|
| Strike | 4-7/8 inch ANSI strike |
| Latch Type | Cylindrical |
| Latchbolt Throw | 1/2 inch |
| Door Thickness Range | 1-3/8 inch to 2 inch (standard) |
| Chassis Diameter | 2-1/8 inch bore |
| Cross Bore | 1 inch |
| ANSI/BHMA Grade | Grade 1 (A156.2) |
| Function Designation | ND10S |
| Electrical Option | Request-to-Exit (RX) switch |
