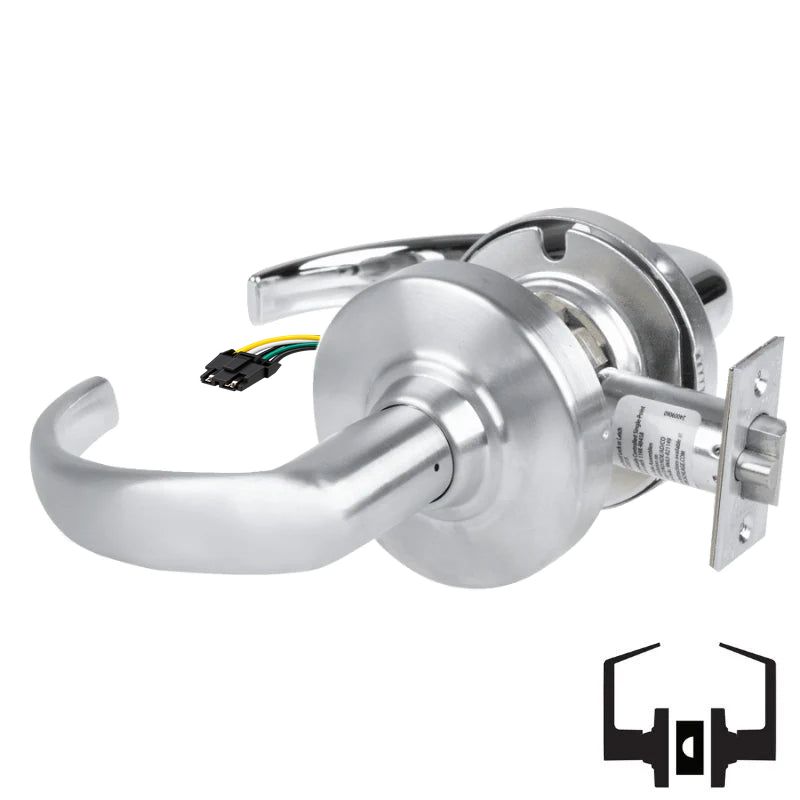

Schlage ND10S-SPA-RX Cylindrical Passage Set, Sparta Lever, Non-Keyed, Request To Exit Switch, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non-Handed

The Schlage ND10S-SPA-RX is a Grade 1 cylindrical passage set built for the high-traffic openings found in schools, hospitals, and commercial buildings. Part of the durable ND Series, it pairs the clean, contemporary Sparta lever with an integrated Request-to-Exit (RX) switch that signals when the lever is operated, making it a smart choice for access control and monitored openings. As a non-keyed passage function, the latch retracts freely from either side for unrestricted movement between spaces. The set ships non-handed for straightforward installation and comes standard with a 2-3/4 inch backset and 4-7/8 inch strike, delivering dependable, code-conscious performance across demanding applications.

Features

• Grade 1 cylindrical construction rated for heavy commercial and institutional use.
• Sparta (SPA) lever offers a smooth, modern profile that meets accessibility requirements.
• Built-in Request-to-Exit switch provides signaling for access control systems.
• Non-keyed passage function allows free operation from both sides.
• Non-handed design simplifies stocking and installation.
• Standard 2-3/4 inch backset with a 4-7/8 inch strike.

Functional Details

As a passage set, the ND10S provides latching without locking, so the lever always retracts the latch from either side. The integrated Request-to-Exit switch reports lever movement to a connected access control or monitoring system, allowing safe, tracked egress.

• Passage/Closet Latch (ND10S): Latch bolt operated by lever from either side at all times.
