Technical Specs
| Function | 12-Exit Lock |
| Function Family | Exit |
| ANSI Function | F89 - Exit |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design | 3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-7/16" |
| Cylinder Type | Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-5/8 In. to 2-1/8 In. |
| Std. Latch Number | 13-247 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4 In. |
| Latch Bore Diameter | 1 In. |
| Lock Face Size | 1-1/8 In. x 2-1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 10-025 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
Product Specs
| Manufacturer | Schlage |
| SKU | ND12D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | — |
| Application | Storeroom Lever |
| Base Material | Brass or Bronze |
| BAA Qualified | Yes |

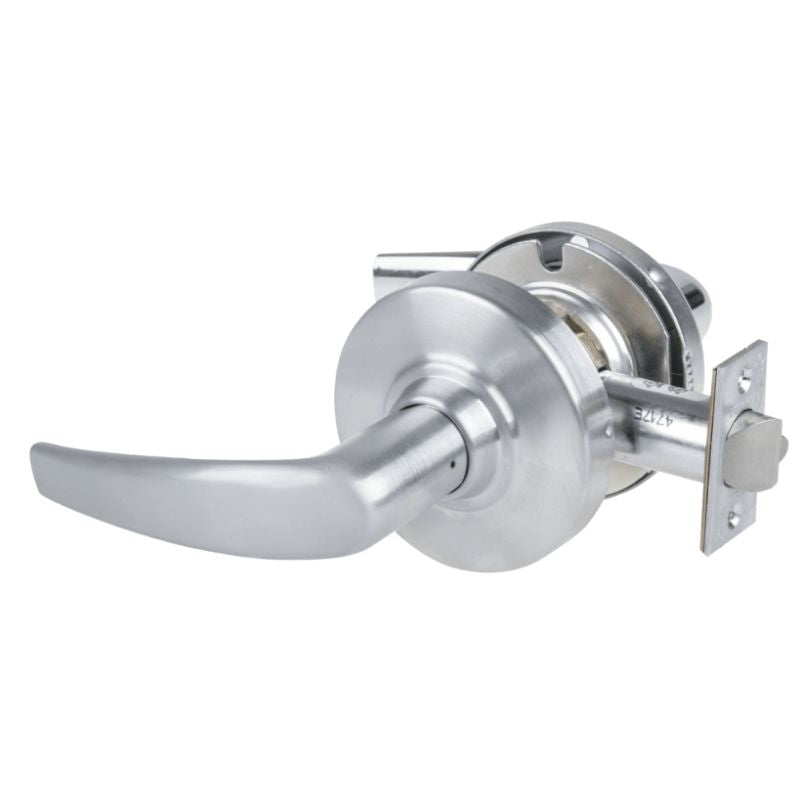

Schlage ND12D-ATH-626 Exit Lock, Non-Keyed, Athens Lever, 2 3/4 Backset, 4 7/8 Strike, Grade 1, Satin Chrome Finish
Schlage ND12D-626 Exit Lock features a non-keyed design, a 2 3/4 inch backset, a 4 7/8 inch strike, and Grade 1 durability. The sleek satin chrome finish adds a professional touch to any door.
- Levers both sides; deadlatch
- Outside lever always fixed; latch retracted by inside lever
- Inside lever always free for immediate egress
To order configured with Request to Exit (RX), specify RX under special options.
ND Series Lever Locks
Performance beyond Grade 1
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, lever torque, hammer blow, lever pull and other tests. This means confidence that the lock will last—whether the application calls for high abuse resistance or just operation over millions of cycles— without any degradation in performance.
Comprehensive offering for every opening
Mechanical, wired electrified and wireless electronic solutions allow a common aesthetic and consistent user experience throughout the building while lowering the total cost of ownership.
World-class design
A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any applications.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
-
Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
-
31 mechanical functions
-
Nine lever designs, two rose designs
-
10 available finishes
-
Supports standard, SFIC and FSIC cylinder formats
-
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
-
Support for 10 non-Schlage cores
