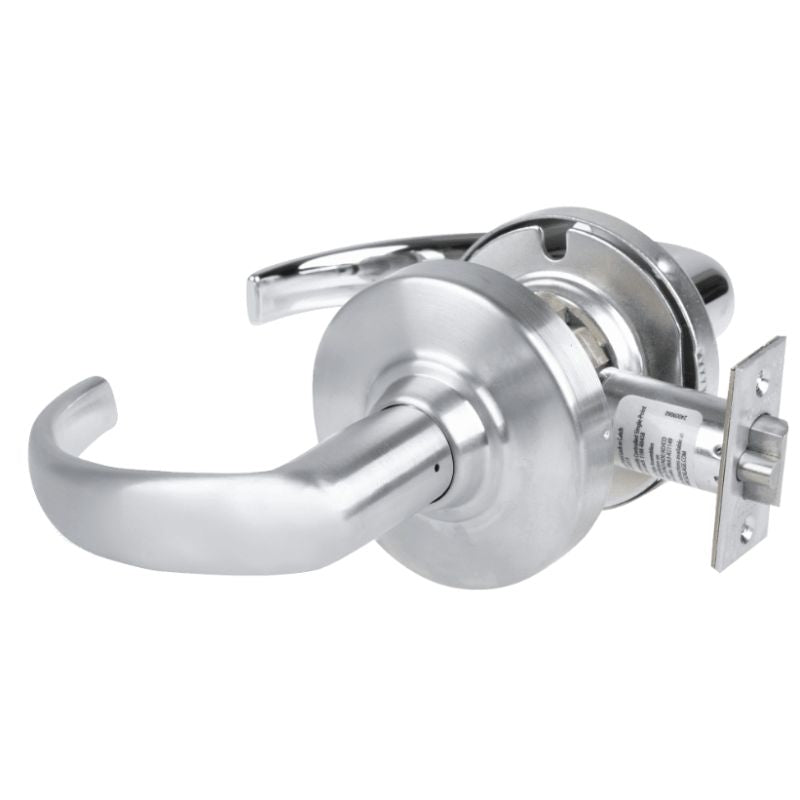

Schlage ND12DEL-626 Electrified Cylindrical Lock features an exit function, a satin chrome finish, and a Fail Safe mechanism. It operates on 12-24V DC and has a 2-3/4‟ backset. The levers adds both style and functionality, making this lock a Grade 1 product recommended for its superior performance.
Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
Ordering: Unless EL or EU is specified, order will default to an EU setting. Optional RX function can be ordered configured by specifying RX under special options or add later using kit part N123-062.
Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.
Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.
The electrified ND is ideally used in:
Key Features
All mechanical features plus:
Manufacturer | Schlage |
SKU | ND12DEL |
Grade | Grade 1 |
Installation | Commercial |
Origin | Mexico |
Unit of Measure | — |
Application | Storeroom Lever |
Base Material | Brass or Bronze |
BAA Qualified | Yes |
Function | 12EL-Fail Safe |
Rose/Escutcheon Design | 3-7/16 In. Diameter |
Door Thickness | 1-3/4" to 2" |
Latch Number | 14-047 |
Latch Type | Guarded Latch |
Latch Backset Dim | 2-3/4" |
Lock Face Size | 2-1/4" X 1-1/8" |
Strike Number | 10-025 |
Strike Type | ASA |
Strike Height | 4-7/8" |
Strike Width | 1-1/4" |
Dust Box | None |
Screws | Combination |
Power | Hard Wired |
Operating Voltage | 12VDC/24VDC |
Amp Draw | 0.23 |
Switch Type | None |
Product Type | Electric Cylindrical Lock |
