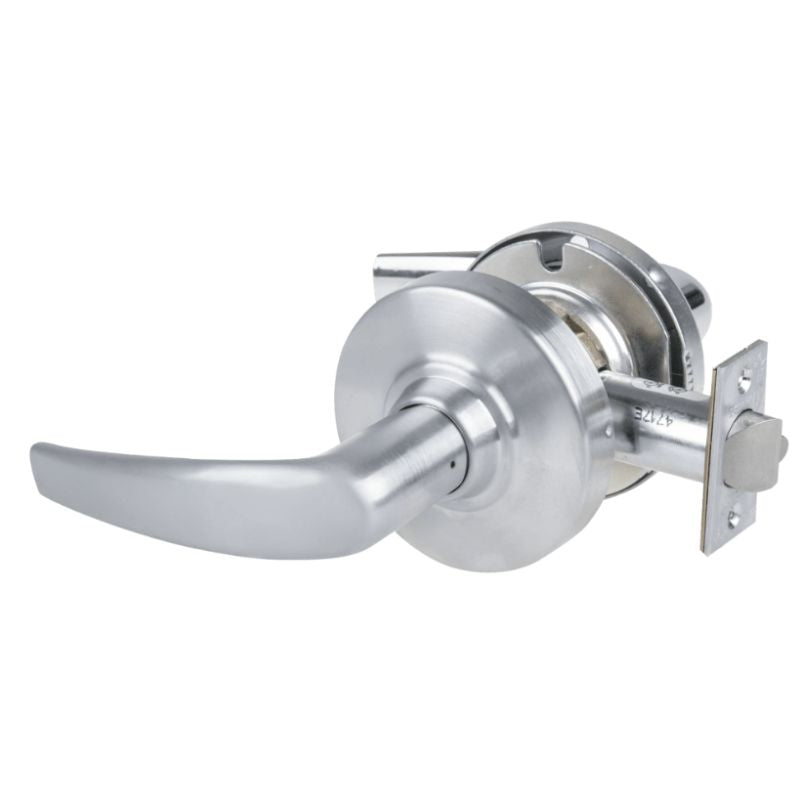

Schlage ND12DEU-ATH-626 Electrified Cylindrical Lock, Exit Function, Athens Lever 12-24V DC, Fail Secure, 2-3/4‟ Backset, Grade 1, Satin Chrome Finish

Schlage ND12DEU-626 Electrified Cylindrical Lock features an exit function, a satin chrome finish, and a Fail Secure mechanism. It operates on 12-24V DC and has a 2-3/4‟ backset. The levers adds both style and functionality, making this lock a Grade 1 product recommended for its superior performance.

• Lever both sides; deadlatch

• Powered state: outside lever continuously unlocked (when in EU mode)

• When power is removed (via switch or power failure), in EU mode outside lever is locked

• Inside lever always free for immediate egress

Note: Auto detects 12 or 24V DC. Chassis mounted
switch allows field selectable EL/EU setting.
Ordering: To order configured with Request to Exit (RX), specify
RX under special options.

ND Series Electrified Lever Locks

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

The electrified ND is ideally used in:

• High-traffic areas, where line power ensures continuous operation
• New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building

Key Features
All mechanical features plus:

• Auto-detecting 12-24VDC input
• Selectable EL/EU operation
• Low 0.23 amp max current draw that allows multiple locks on a single power supply
• Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
• Modular Request to Exit (RX) that can be added at any time
• Inventory friendly–one lock supports 12-24V, EL, or EU, with or without RX
• Six electrified functions for application flexibility
