Technical Specs
| Function |
172-Double Dummy |
| Function Family | Dummy |
| Lever/Knob Design |
ATH - Athens Lever |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-7/16" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-5/8 In. to 2-1/8 In. |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
Product Specs
| Manufacturer | Schlage |
| SKU | ND172 ATH 626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed |
| ANSI Number | ANSI A156.2 Series 4000, Grade 1 |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Finish | |
| Finish |
626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |

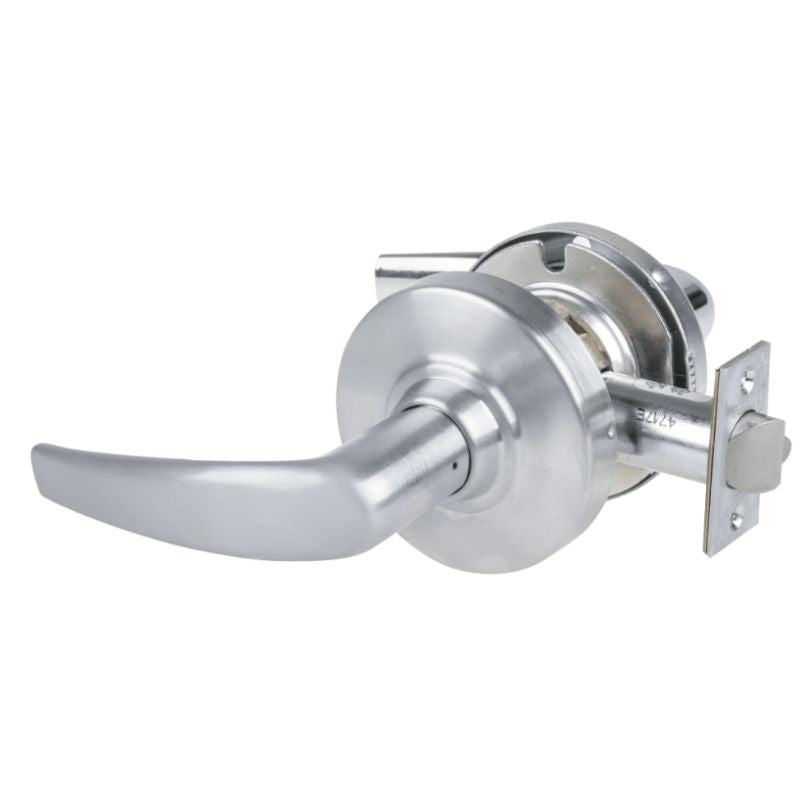

Schlage ND172-ATH-626 Double Dummy Trim, Athens Lever, Non-Keyed, Non-Handed, Satin Chrome Finish
The Schlage ND172-ATH-626 is a Cylindrical Double Dummy Trim, with an Athens Lever, that is Non-Keyed, is Non-Handed, is Grade 1, and comes in Satin Chrome finishes.
Double(Full) Dummy Trim Function
• Fixed lever/knob on both side
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- 31 mechanical functions
- Nine lever designs, two rose designs
- 10 available finishes
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cores
