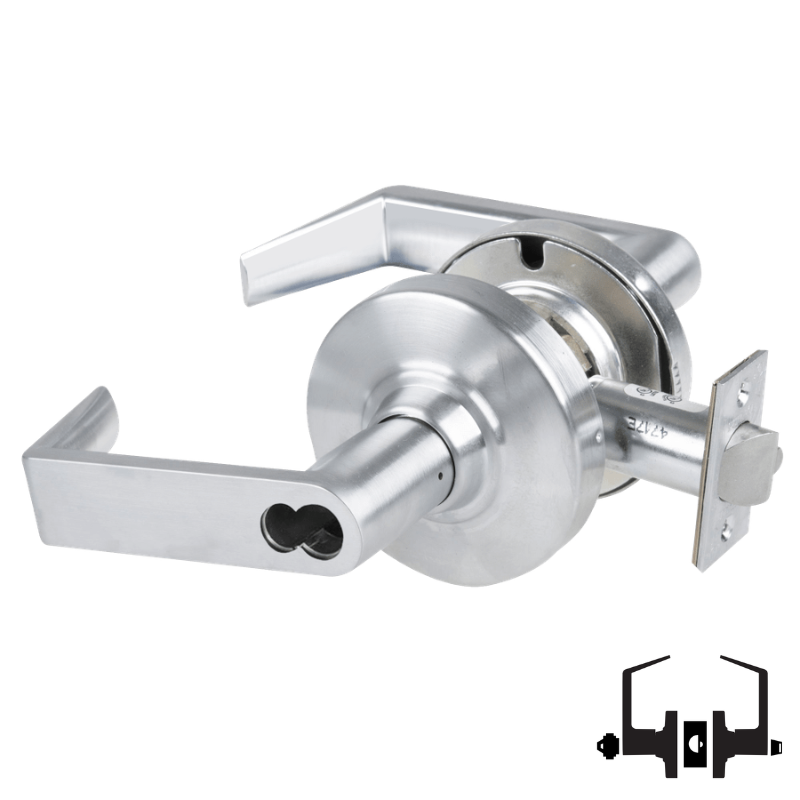

The Schlage ND53-JD-RHO cylindrical entrance lock is a heavy-duty Grade 1 lever lock built for high-traffic commercial openings that require dependable security and consistent performance. This configuration combines the Rhodes lever design with Schlage full size interchangeable core preparation, supplied less core for keying flexibility. It includes a 2-3/4 inch backset and 4-7/8 inch strike, making it well suited for standard commercial door applications. As part of the ND Series, it is engineered for strength, durability, and long service life, while the non-handed design helps simplify installation and reduce stocking complexity.
Features
Functional Details
The ND53 entrance function is intended for doors that need keyed access from the outside while maintaining free egress from the inside. This makes it a practical choice for offices, schools, and other commercial spaces where security and life safety are both important.
| Manufacturer | Schlage |
| SKU | ND-53-JD-RHO |
| Series | ND Series |
| Lock Type | Cylindrical Lock |
| Function | Entrance |
| Grade | ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Handing | Non-handed |
| Core Type | Schlage FSIC Full Sized Interchangeable Core, less core |
| Origin | Made in USA of domestic and imported materials |
| Unit of Measure | Each |
| UL Listing Type | UL listed for 3-hour fire door |
| ANSI Number | F109 |
| BAA Qualified | Yes |
| Limited Warranty | 10-year limited mechanical warranty and 3-year limited electro mechanical warranty |
| Backset | 2-3/4 in |
| Strike Size | 4-7/8 in |
| Door Thickness Range | 1-3/8 in to 2-1/8 in |
| Cross Bore | 2-1/8 in |
| Edge Bore | 1 in |
| Latch Front | 1-1/8 in x 2-1/4 in |
| Strike Dimensions | 1-1/4 in x 4-7/8 in |
| Lever Projection | 2-13/16 in |
| Rose Diameter | 3-1/2 in |
| Cylinder Diameter | 1-1/4 in |
| Fire Rating | 3 hour |
| Cycle Test | 3,100,000 cycles |
