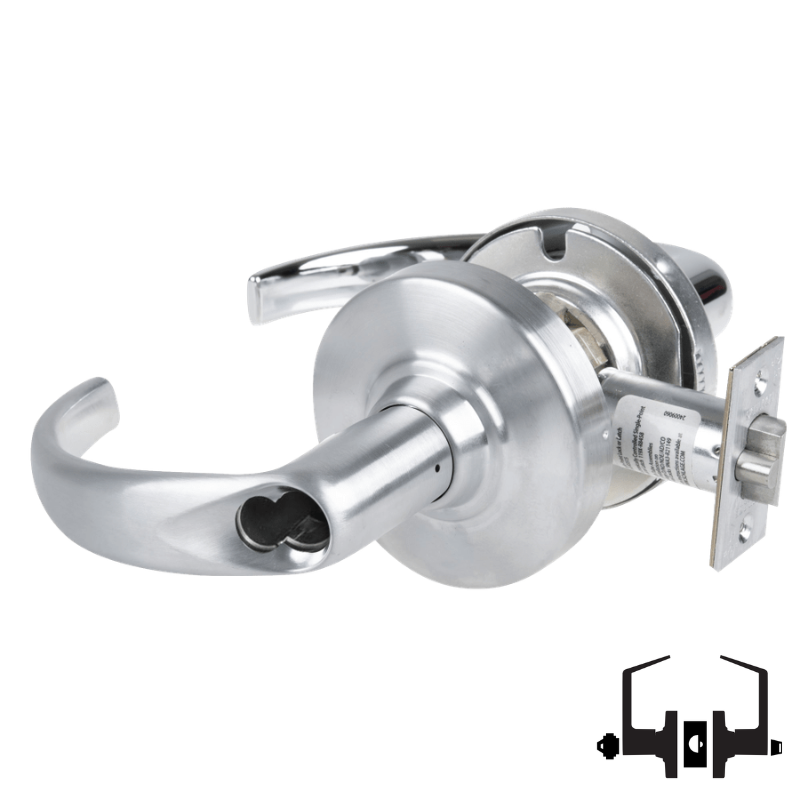

The Schlage ND53-JD-SPA cylindrical entrance lock is a heavy-duty Grade 1 lever lock built for demanding commercial openings that need dependable security and everyday usability. Based on the ND Series platform, this entrance function lock combines the Sparta lever design with Schlage full sized interchangeable core preparation for streamlined key system management, while shipping less core for project-specific pinning. Its non-handed construction supports easier installation, and the 2-3/4 inch backset with 4-7/8 inch strike makes it well suited for standard commercial door applications where durability, serviceability, and code-focused performance matter.
Features
Functional Details
The ND53 entrance function is intended for doors that require keyed control from the outside while maintaining free egress from the inside. This function is commonly used at main entry points and other commercial openings where secure access and straightforward operation are both important.
| Manufacturer | Schlage |
| Series | ND Series |
| SKU | ND-53-JD-SPA |
| Function | Entrance Lock |
| Lever Design | Sparta |
| Core Type | Schlage FSIC Full Sized Interchangeable Core, Less Core |
| Grade | ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Handing | Non-handed |
| Unit of Measure | Each |
| UL Listing Type | UL listed for 3-hour fire door |
| ANSI Number | F109 |
| BAA Qualified | Yes |
| Origin | Made in U.S.A. |
| Limited Warranty | 10-year limited mechanical warranty and 3-year limited electro mechanical warranty |
| Backset | 2-3/4 in |
| Strike Size | 4-7/8 in |
| Door Thickness Range | 1-3/8 in to 2-1/8 in |
| Crossbore Diameter | 2-1/8 in |
| Edge Bore Diameter | 1 in |
| Latch Front | 1-1/8 in x 2-1/4 in |
| Strike Dimensions | 1-1/4 in x 4-7/8 in |
| Cylinder Diameter | 1-1/4 in |
| Lever Projection | 2-15/16 in |
| Rose Diameter | 3-7/16 in |
| Fire Rating | 3 hour |
| Cycle Test | 3,100,000 cycles |
