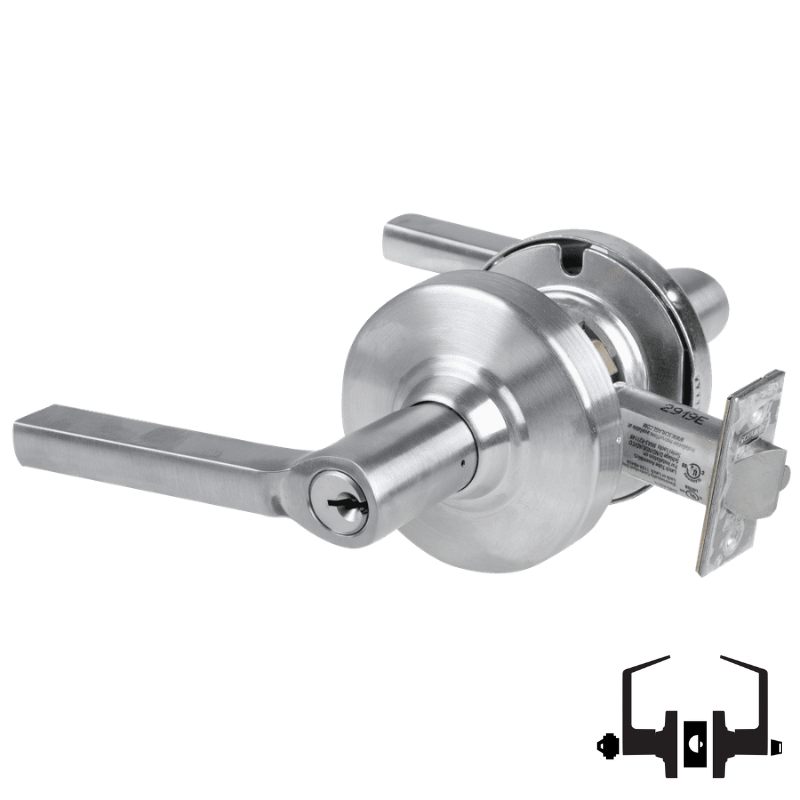

The Schlage ND53-PD-LAT cylindrical entrance lock is a heavy-duty Grade 1 lever lock designed for dependable security in commercial openings. Built within the Schlage ND Series, this entrance function lock combines the clean look of the Latitude lever with the strength and durability expected for high-traffic applications. Its non-handed design helps simplify installation, while the keyed different Schlage C keyway configuration supports secure key control for individual door access. With a 2-3/4 inch backset and 4-7/8 inch strike, this lock is well suited for commercial doors that require reliable performance, code-conscious construction, and long service life.
Features
Functional Details
The ND53 entrance/office function is designed for doors that need outside key access and convenient inside locking control. The inside push button locks the outside lever, and the outside lever can then be unlocked by a key or by turning the inside lever, allowing practical day-to-day use in offices, schools, and similar commercial spaces.
| Manufacturer | Schlage |
| SKU | ND-53-PD-LAT |
| Series | ND Series |
| Function | Entrance/Office Lock |
| Grade | ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Handing | Non-handed |
| Origin | Made in USA of domestic and imported materials |
| Unit of Measure | Each |
| UL Listing Type | UL listed for 3-hour fire door |
| ANSI Number | F109 |
| BAA Qualified | Yes |
| Limited Warranty | 10 year mechanical warranty and 3 year electro-mechanical warranty |
| Backset | 2-3/4 in |
| Strike | 4-7/8 in |
| Door Thickness | 1-5/8 in to 2-1/8 in |
| Crossbore | 2-1/8 in |
| Edge Bore | 1 in |
| Latch Front | 1-1/8 in x 2-1/4 in |
| Strike Dimensions | 1-1/4 in x 4-7/8 in |
| Latch Throw | 1/2 in |
| Lever Projection | 2-13/16 in |
| Rose Diameter | 3-7/16 in |
| Cylinder | 6-pin |
| Cycle Test | 3,100,000 cycles |
