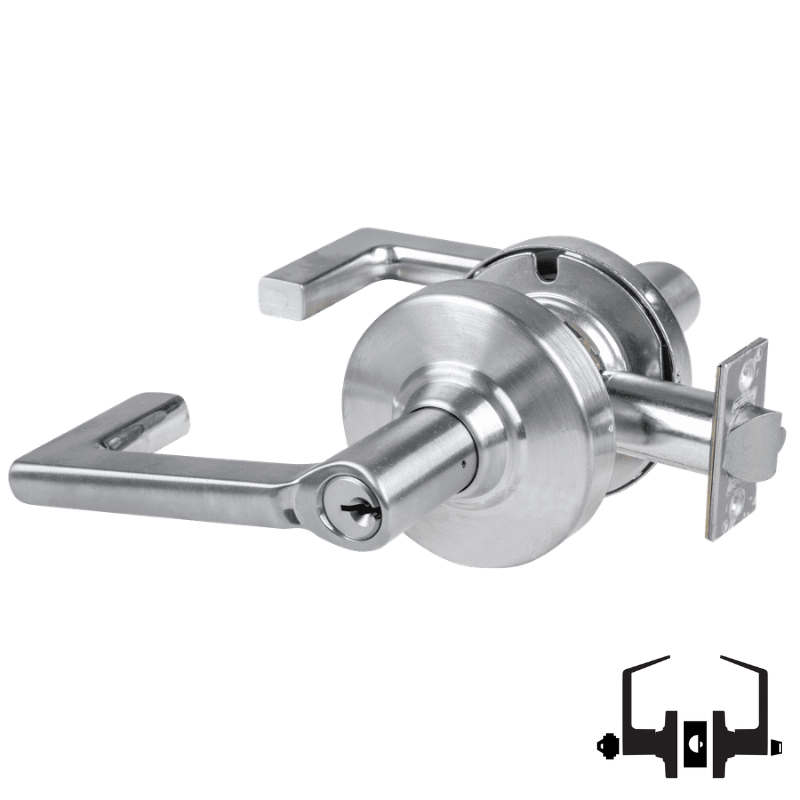

The Schlage ND53-PD-LON cylindrical entrance lock is a heavy-duty Grade 1 lever lock built for high-traffic commercial openings where strength, security, and long service life matter. Part of the ND Series, this entrance function lock combines Schlage’s robust cylindrical chassis with a Longitude lever design and non-handed operation for easier installation and flexible use. It is keyed different and supplied with two change keys, making it a practical choice for offices, schools, healthcare facilities, and other commercial applications. With its 2-3/4 inch backset and 4-7/8 inch strike, this lock is configured for dependable performance on demanding door openings.
Features
Functional Details
The ND53 entrance function is intended for doors that need outside key access with everyday lever operation for authorized users. This function is commonly used on main entry and office openings where secure access and reliable egress are both required.
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| SKU | ND-53-PD-LON |
| Lock Type | Cylindrical lock |
| Function | Entrance |
| Grade | ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Handing | Non-handed |
| Backset | 2-3/4 inch |
| Strike | 4-7/8 inch strike |
| Cylinder | Schlage C keyway |
| Keying | Keyed different |
| Keys Included | 2 change keys |
| UL Listing Type | UL listed for 3-hour fire door |
| BAA Qualified | Yes |
| Limited Warranty | 10-year limited mechanical warranty and 3-year limited electro-mechanical warranty |
| ANSI Number | F109 |
|---|---|
| Cycle Test | 3,100,000 cycles |
| Door Thickness | 1-3/8 inch to 1-3/4 inch standard |
| Backset | 2-3/4 inch |
| Latch Front | 1-1/8 inch x 2-1/4 inch |
| Strike Size | 1-1/4 inch x 4-7/8 inch |
| Latch Throw | 1/2 inch |
| Lever Projection | 2-15/16 inch |
| Rose Diameter | 3-7/16 inch |
| Cross Bore | 2-1/8 inch |
| Edge Bore | 1 inch |
| Fire Rating | 3 hour |
