Technical Specs
| Function | 53-Entrance Latch |
| Lever/Knob Design | HSLR - High Security Ligature Resistant Trim |
| Lever/Knob Design Family | Anti-Ligature Trim |
| Rose/Escutcheon Design | 3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-7/16" |
| Cylinder Type |
SFIC Prep Less Core |
| Door Thickness | 1-5/8" to 2-1/8" |
| Std. Latch Number | 13-248 |
| Std. Latch Type | Springlatch |
| Std. Latch Backset Dim | 2-3/4 In. |
| Latch Bore Diameter | 1 In. |
| Lock Face Size | 1-1/8 In. x 2-1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 10-025 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
Product Specs
| Manufacturer | Schlage |
| SKU | ND53BD HSLR 630 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed |
| ANSI Number | ANSI A156.2 Series 4000, Grade 1 |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Finish | |
| Finish | 630/US32D |
| Finish Description | Satin Stainless Steel |
| Finish Family | Matte Silver |

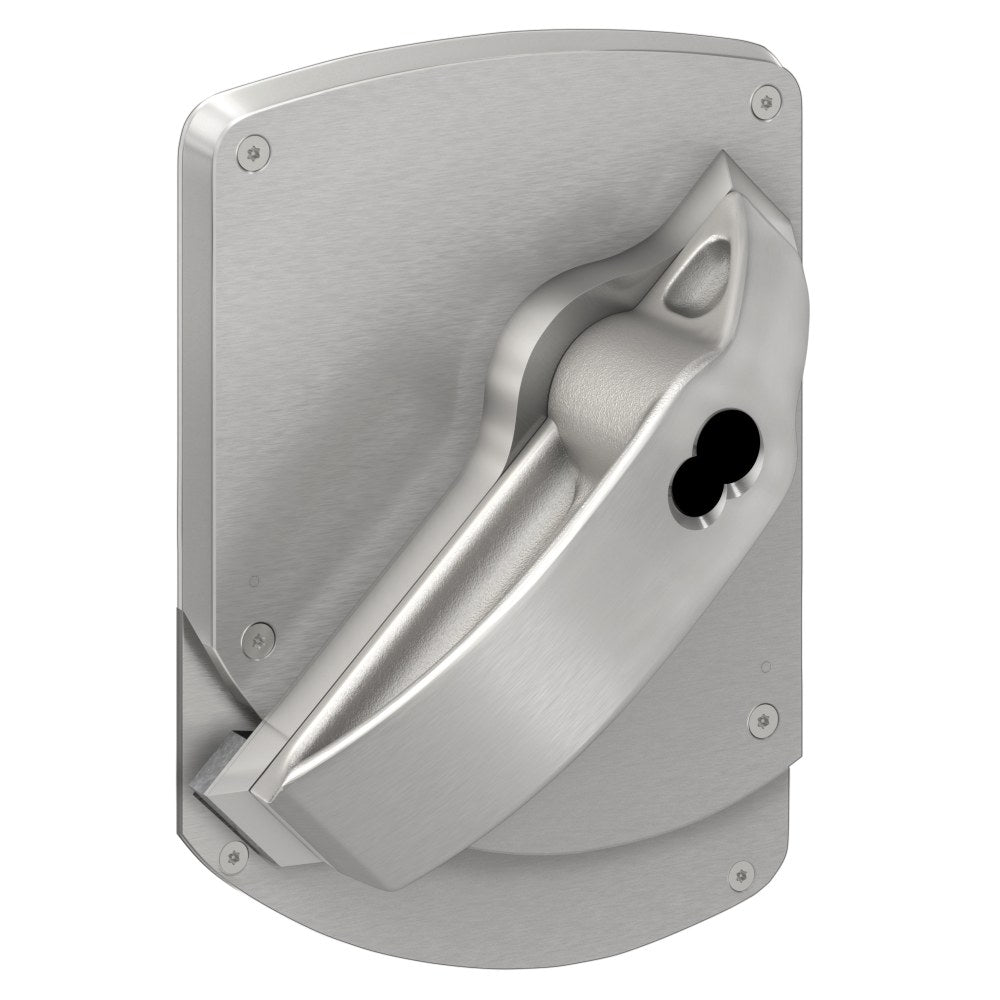

Schlage ND53BD-HSLR-630 Entrance Lock, High Security Ligature Resistant Trim, SFIC Prep Less Core, 2 3/4 Backset, 4 7/8 Strike, Grade 1, Satin Stainless Steel Finish
Schlage ND53BD-HSLR-630 Entrance Lock features High Security Ligature Resistant Trim for added safety. It also includes SFIC Prep Less Core, 2 3/4" Backset, and a 4 7/8" Strike for maximum durability. This Grade 1 lock has a sleek Satin Stainless Steel finish.
Features and Benefits
- The highest level of ligature resistance to positively contribute to healing environments
- Cylindrical and mortise options
- “Paperclip Protection” designation as determined by NYS-OMH testing
- Recommended for low, medium or high risk areas
- ADA Compliant - ”no pinch, no grasp”
- Variety of mortise and cylindrical functions available, including electrified
- Supplied with Torx® security screws
- Available in 630 finish
- BAA compliant
- Locks are ANSI/BHMA Grade 1 certified
- UL Listed 3-hour
ND Series Lever Locks
Performance beyond Grade 1
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, lever torque, hammer blow, lever pull and other tests. This means confidence that the lock will last—whether the application calls for high abuse resistance or just operation over millions of cycles— without any degradation in performance.
Comprehensive offering for every opening
Mechanical, wired electrified and wireless electronic solutions allow a common aesthetic and consistent user experience throughout the building while lowering the total cost of ownership.
World-class design
A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any applications.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
-
Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
-
31 mechanical functions
-
Nine lever designs, two rose designs
-
10 available finishes
-
Supports standard, SFIC and FSIC cylinder formats
-
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
-
Support for 10 non-Schlage cores
