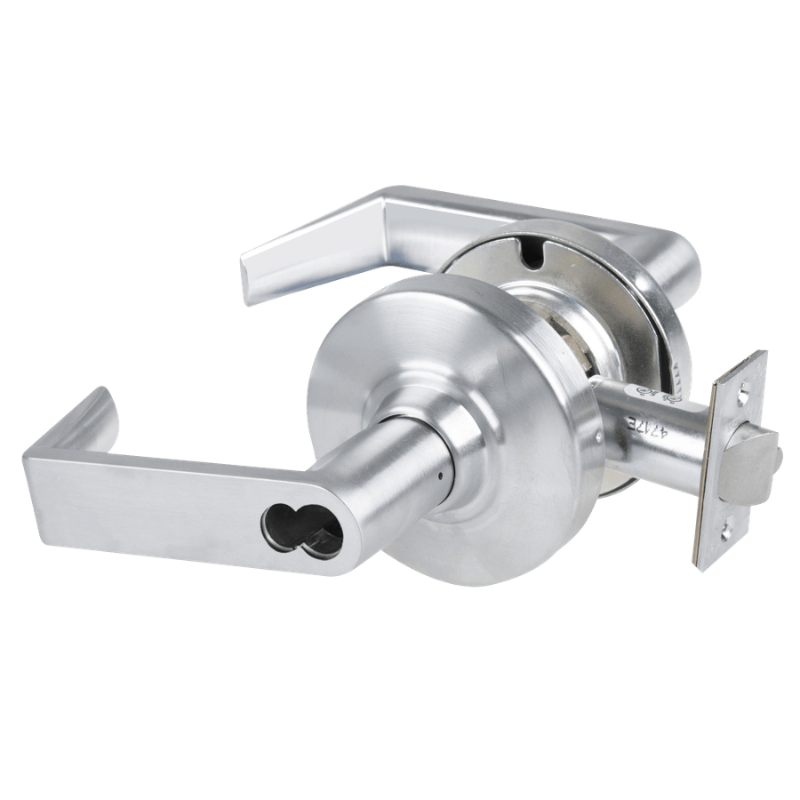

Schlage ND70JD-RHO Cylindrical Classroom Lock, Rhodes Lever, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND70JD-RHO Cylindrical Classroom Lock is a heavy-duty Grade 1 lockset built for high-traffic commercial openings that require dependable classroom security and long service life. This configuration includes the Rhodes lever design, Schlage FSIC Full Sized Interchangeable Core preparation, and is supplied less core for flexible keying. It is furnished with a 2-3/4 inch backset and a 4-7/8 inch strike, making it suitable for standard commercial door applications. The ND70JD-RHO is non handed for easier installation and field flexibility, combining the proven Schlage ND Series cylindrical platform with classroom function performance.

Features

• ND70JD classroom function provides keyed locking control from the outside with safe egress from the inside.

• Cylindrical lock construction supports heavy-duty commercial use and straightforward installation.

• Rhodes lever trim offers a clean, durable lever design for institutional and commercial openings.

• Prepared for a Schlage FSIC Full Sized Interchangeable Core to support convenient core changes and key system management.

• Supplied less core so the interchangeable core can be ordered separately to match the facility keying system.

• Configured with a 2-3/4 inch backset for compatible door preparation requirements.

• Furnished with a 4-7/8 inch strike for standard commercial frame applications.

• Grade 1 rating meets the highest ANSI/BHMA performance classification for cylindrical locks.

• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND70JD classroom function is designed for controlled access in school and institutional settings. The outside lever can be locked or unlocked by key, while the inside lever remains free for immediate egress at all times. This function helps manage entry from the corridor side without restricting exit from within the room.

• Outside lever locked and unlocked by key. Inside lever always unlocked.

• Push button locking. Turning inside lever or closing door releases button.

Included Components

This Schlage ND70JD-RHO cylindrical classroom lock is supplied less core and prepared to accept a Schlage FSIC Full Sized Interchangeable Core. It is configured with a 2-3/4 inch backset and includes a 4-7/8 inch strike. The non handed chassis supports installation on either door hand without requiring different lock bodies.
