Description

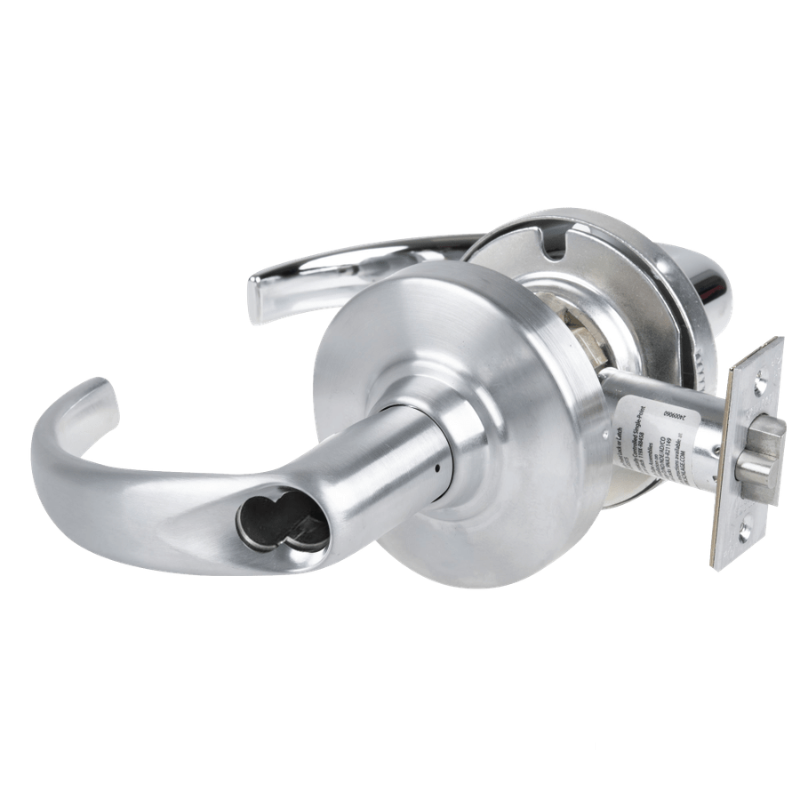

Schlage ND70JD-SPA Cylindrical Classroom Lock, Sparta Lever, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND70JD-SPA Cylindrical Classroom Lock with Sparta Lever is a heavy-duty Grade 1 lock designed for demanding commercial openings. This ND70JD-SPA configuration features a Schlage FSIC Full Sized Interchangeable Core prep and is supplied less core, making it ideal for facilities that manage their own core systems. It is built with a 2-3/4 inch backset and a 4-7/8 inch strike for standard commercial door applications. As a non handed cylindrical classroom lock, it offers flexible installation while delivering the strength, durability, and serviceability expected from the Schlage ND Series.
Features
- ND70JD-SPA cylindrical classroom lock function is designed for classroom and institutional openings requiring controlled outside access.
- Sparta lever trim provides a durable lever design suited for commercial applications.
- Prepared for a Schlage FSIC full sized interchangeable core for convenient key system management.
- Supplied less core so the interchangeable core can be furnished separately to match the facility keying system.
- Configured with a 2-3/4 inch backset for standard commercial door preparation.
- Includes a 4-7/8 inch strike for compatible frame installations.
- Grade 1 construction meets high-performance commercial hardware requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
- Cylindrical lock design supports strength, serviceability, and straightforward installation.
Functional Details
The ND70JD classroom function allows the outside lever to be locked or unlocked by key while the inside lever remains free for immediate egress. This makes it a practical choice for schools and similar facilities where secure entry control and safe exit are both required.
- Outside lever locked and unlocked by key.
- Inside lever always unlocked.
Included Components
This Schlage ND70JD-SPA lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike, and its non handed construction supports installation on either door hand without modification.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND70JD-SPA |
| Product Type | Cylindrical Classroom Lock |
| Lever Design | Sparta Lever |
| Cylinder Type | Schlage FSIC Full Sized Interchangeable Core |
| Core | Less Core |
| Handing | Non Handed |
| Grade | Grade 1 |
| ANSI Number | F84 |
| UL Listing Type | UL listed for 3-hour fire door |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Door Thickness | 1-3/8 Inch to 2-1/8 Inch |
| Manufacturer Warranty | 10 Year Limited Mechanical Warranty, 3 Year Limited Electromechanical Warranty |
| Origin | Made in USA with domestic and foreign components |
| Unit of Measure | Each |
| BAA Qualified | Yes |
Technical Specifications
| ANSI Function Number | F84 |
|---|---|
| Backset | 2-3/4 Inch |
| Strike Size | 4-7/8 Inch |
| Door Thickness Range | 1-3/8 Inch to 2-1/8 Inch |
| Latch Throw | 1/2 Inch |
| Fire Rating | 3 Hour |
| Handing | Non Handed |
| Lock Grade | Grade 1 |
| Cylinder Preparation | FSIC Full Sized Interchangeable Core |
| Core Supplied | Less Core |
| Chassis Type | Cylindrical |
| Lever Style | Sparta |
