Description

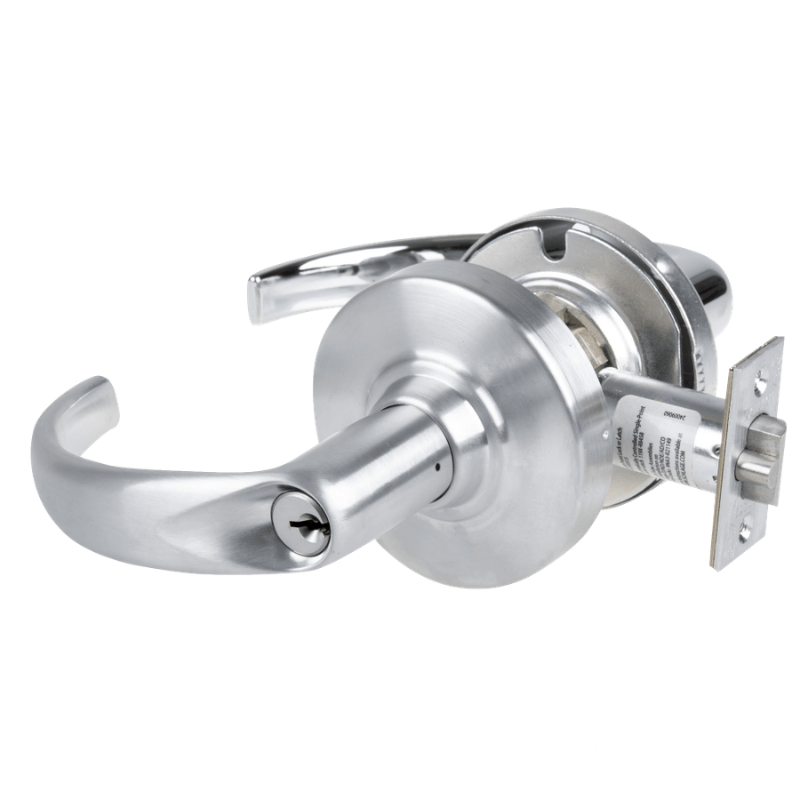

Schlage ND70PD-SPA Cylindrical Classroom Lock, Sparta Lever, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND70PD-SPA Cylindrical Classroom Lock with Sparta Lever is a heavy-duty Grade 1 cylindrical lock built for high-use commercial openings that require dependable classroom security and long service life. This Schlage ND70PD-SPA configuration features the Schlage "C" keyway, keyed different operation, and includes [2] change keys for immediate keying convenience. It is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike, and its non handed design helps simplify installation and inventory management. Designed within the Schlage ND Series, this cylindrical classroom lock combines strong mechanical performance with the familiar control needed for school, institutional, and commercial applications.
Features
- ND70PD classroom function provides keyed outside control with free egress from the inside for classroom and institutional openings.
- Sparta lever trim offers a straight, modern lever design within the Schlage ND Series.
- Schlage "C" keyway is included for standard Schlage cylinder compatibility.
- Keyed different configuration provides a unique keying combination for the lock.
- Supplied with [2] change keys for initial operation and key management.
- Built with a 2-3/4 inch backset for door preparation compatibility.
- Includes a 4-7/8 inch strike for frame installation.
- Grade 1 construction meets heavy-duty commercial performance requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
- Cylindrical lock chassis is engineered for strength, durability, and frequent-use openings.
Functional Details
The ND70PD classroom function is designed so the outside lever can be locked or unlocked by key, while the inside lever remains free for safe egress at all times. This makes it a practical choice for classrooms and similar spaces where authorized exterior access control is needed without restricting exit from the room.
- Outside lever locked and unlocked by key.
- Inside lever always unlocked.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND70PD-SPA |
| Lock Type | Cylindrical Classroom Lock |
| Lever Design | Sparta Lever |
| Keyway | Schlage "C" |
| Keying | Keyed Different |
| Included Keys | [2] Change Keys |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Handing | Non Handed |
| Grade | Grade 1 |
| ANSI Number | F84 |
| UL Listing Type | UL listed for 3-hour fire door |
| Origin | Made in USA of domestic and imported materials |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year limited mechanical warranty, 3 year limited electro mechanical warranty |
Technical Specifications
| Function Number | ND70PD |
|---|---|
| ANSI Function | F84 |
| BHMA Grade | Grade 1 |
| Backset Dimension | 2-3/4 Inch |
| Strike Dimension | 4-7/8 Inch |
| Door Thickness Range | 1-3/8 Inch to 2-1/8 Inch |
| Crossbore Diameter | 2-1/8 Inch |
| Edge Bore Diameter | 1 Inch |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Strike Size | 1-1/4 Inch x 4-7/8 Inch |
| Cylinder Type | 6-pin conventional cylinder |
| Fire Rating | 3 Hour |
| Handing | Non Handed |
| Cycle Test | 3,100,000 cycles |
| Lever Style | SPA - Sparta |
