Description

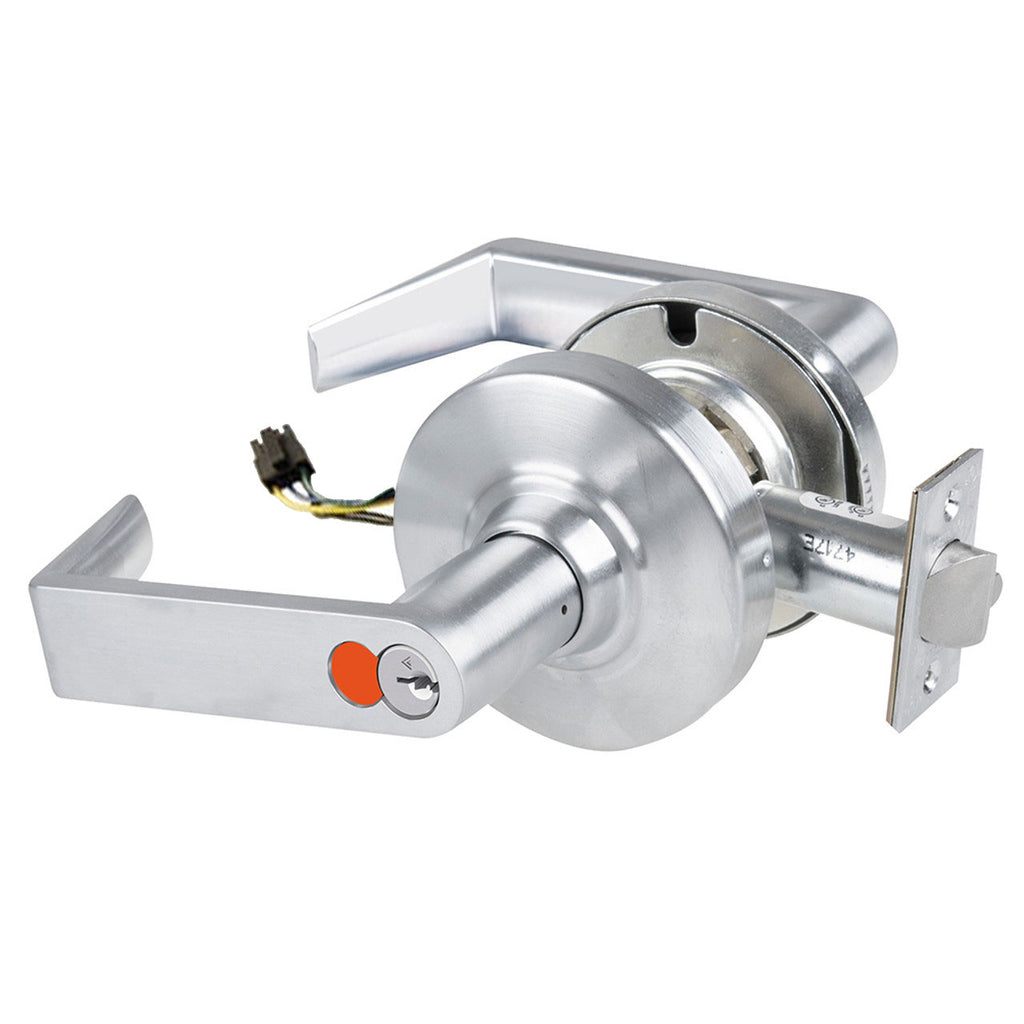

The Schlage ND80-TD-EU-RHO-626 is an Electrified Cylindrical Lock, in Storeroom Function, that is for use with 12V or 24V DC, has a Fail Secure feature, has a Rhodes Lever, a 2-3/4" Backset,i s FSIC Prep and comes with a Construction Core, and comes n a Satin Chrome Finish.
ND Series Electrified Lever Locks
Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.
Wired electrified locks compliment the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.
The electrified ND is ideally used in:
- High-traffic areas, where line power ensures continuous operation
- New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building
Key Features
All mechanical features plus:
- Auto-detecting 12-24VDC input
- Selectable EL/EU operation
- Low 0.23 amp max current draw that allows multiple locks on a single power supply
- Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
- Modular Request to Exit (RX) that can be added at any time
- Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
- Six electrified functions for application flexibility
Product Specs
| Manufacturer | Schlage |
| SKU | ND80TD RHO 626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed |
| ANSI Number | ANSI A156.2 Series 4000, Grade 1 |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
Technical Specs
| Function | 80 Storeroom Lock |
| Function Family | Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design | RHO - Rhodes Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3 7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3 7/16" |
| Cylinder Type |
Schlage FSIC Prep With Construction Core |
| Num Pins | 6 |
| Keying | Construction |
| Handing | Non-handed |
| Door Thickness | 1 5/8 In. to 2 1/8 In. |
| Std. Latch Number | 13-247 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2 3/4 In. |
| Latch Bore Diameter | 1 In. |
| Lock Face Size | 1 1/8 In. x 2 1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2 1/8 In. |
| Std. Strike Number | 10-025 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4 7/8 In. |
| Std. Strike Width | 1 1/4 In. |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
