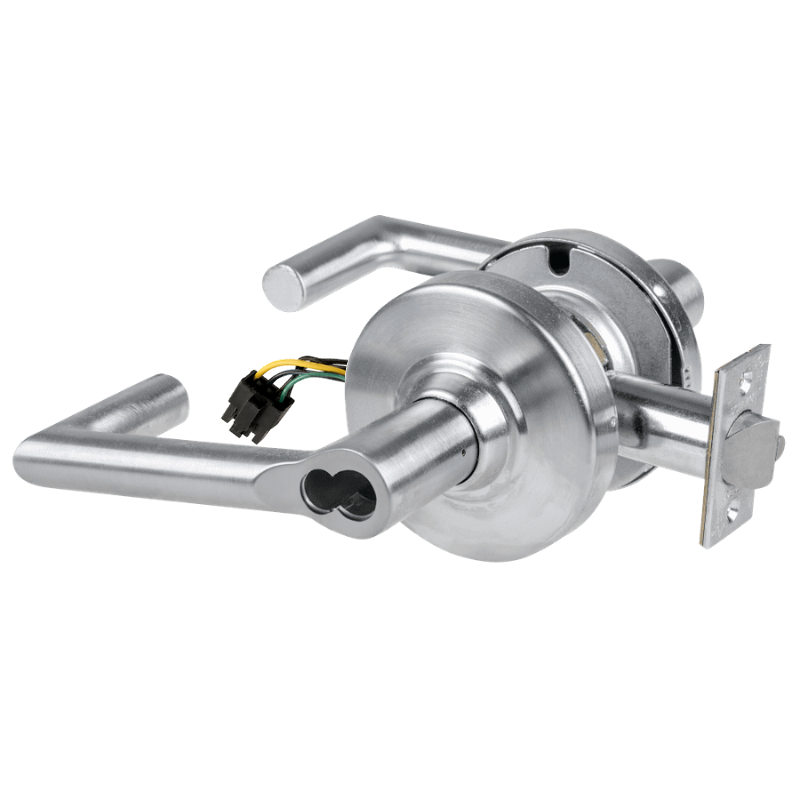

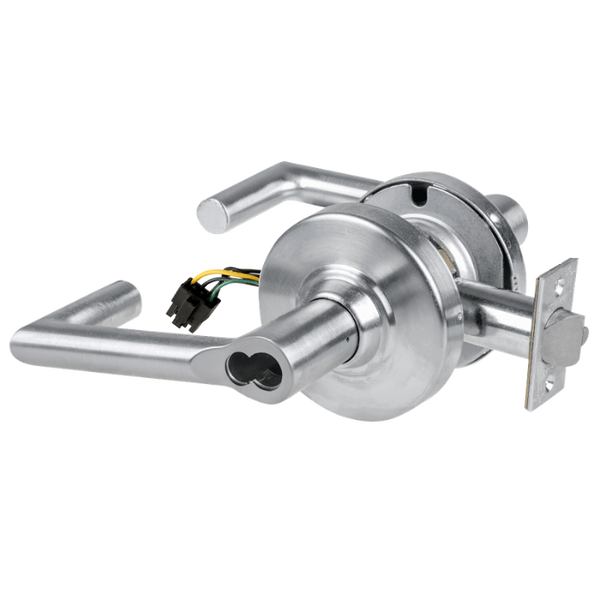

Schlage ND80BD-BRK-RX Cylindrical Storeroom Lock, Boardwalk Lever, Request to Exit, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-BRK-RX Cylindrical Storeroom Lock with Boardwalk lever is a heavy-duty Grade 1 lock built for high-traffic commercial openings that require dependable security and controlled access. This ND80BD-BRK-RX configuration includes Request to Exit capability, SFIC prep less core construction, a 2-3/4 inch backset, and a 4-7/8 inch strike for compatibility with common commercial door preparations. Its non handed design simplifies installation and inventory management, while the cylindrical chassis and storeroom function make it a practical choice for schools, offices, healthcare facilities, and other buildings where durability, code-related access control, and consistent performance matter.

Features

• ND80BD-BRK-RX is a cylindrical storeroom lock designed for commercial-duty security applications.
• The Boardwalk lever provides a modern lever design suited for institutional and commercial openings.
• Request to Exit functionality supports access control applications where egress signaling is required.
• SFIC prep less core construction allows the lock to accept a small format interchangeable core supplied separately.
• The 2-3/4 inch backset fits standard commercial door preparations requiring the longer backset option.
• A 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction meets the highest ANSI/BHMA performance grade for cylindrical locks.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The storeroom function keeps the outside lever rigid at all times and requires key access for entry, while the inside lever remains free for immediate egress. In the RX configuration, the lock also provides a Request to Exit signal when the inside lever is operated, making it suitable for electrified openings tied to access control or monitoring systems.

• Outside lever is always locked.
• Entrance by key only.
• Inside lever always unlocked.
• Inside lever releases latch.
• Request-to-exit switch monitors inside lever operation.

Included Components

This Schlage ND Series lock is supplied as an SFIC prep less core cylindrical lockset and is configured with the Boardwalk lever, 2-3/4 inch backset, and 4-7/8 inch strike. The interchangeable core is not included.
