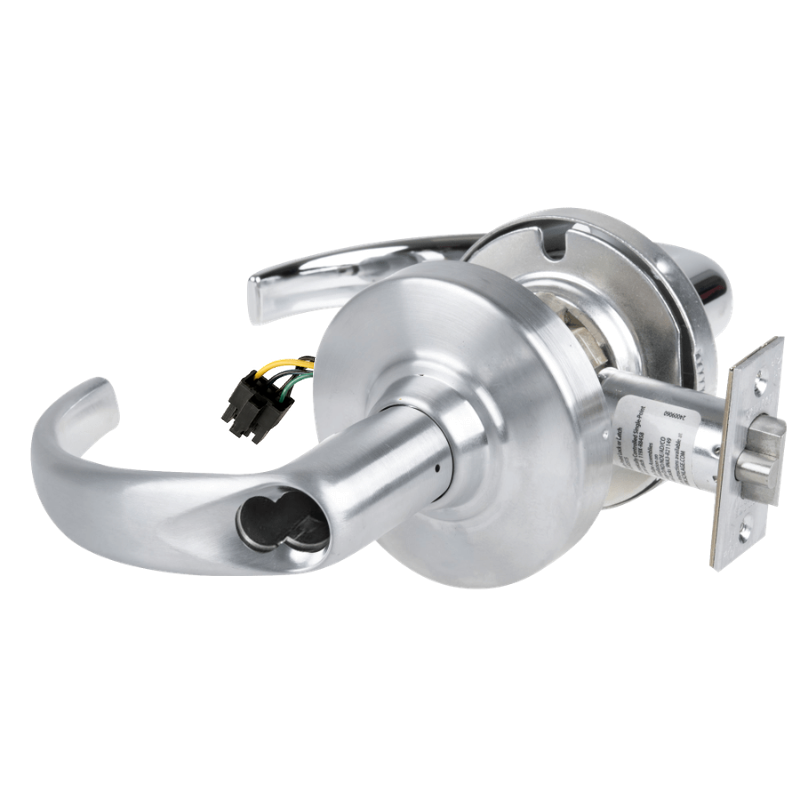

Schlage ND80BD-EL-SPA Cylindrical Electrified Storeroom Lock, Sparta Lever, 12-24V VDC, Fail Safe, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EL-SPA Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lock built for reliable access control in commercial openings. This configuration combines the ND80BD-EL electrified storeroom function with the Sparta lever design, 12-24V VDC operation, and fail safe functionality for controlled egress and entry. It is supplied as SFIC prep less core, making it ready for small format interchangeable core systems, and includes a 2-3/4 inch backset with a 4-7/8 inch strike. The non handed design helps simplify installation while maintaining the durability and performance expected from the Schlage ND Series.

Features

• ND80BD-EL electrified storeroom lock function supports controlled access in commercial applications.
• Sparta lever trim provides a clean, durable lever design for institutional and commercial doors.
• 12-24V VDC operation offers installation flexibility for low-voltage electrified openings.
• Fail safe operation unlocks the lever when power is applied according to the electrified function design.
• SFIC prep less core configuration is prepared for small format interchangeable core use without including the core.
• 2-3/4 inch backset fits standard commercial door preparations requiring the longer backset.
• 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction meets demanding commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed for access-controlled openings where the outside lever operation is managed electrically while the inside lever remains available for free egress. In the fail safe configuration, the outside lever is unlocked when power is applied and returns to the secure state when power is removed.

• Outside lever locked or unlocked by key from outside.
• Push button on inside locks outside lever requiring use of key until button is manually unlocked.
• Inside lever always unlocked for immediate egress.
• Fail safe: outside lever is unlocked when energized.

Included Components

This Schlage ND80BD-EL-SPA Cylindrical Electrified Storeroom Lock is supplied in an SFIC prep less core configuration and includes the 2-3/4 inch backset and 4-7/8 inch strike. The small format interchangeable core and finish-specific components are ordered separately as required.
