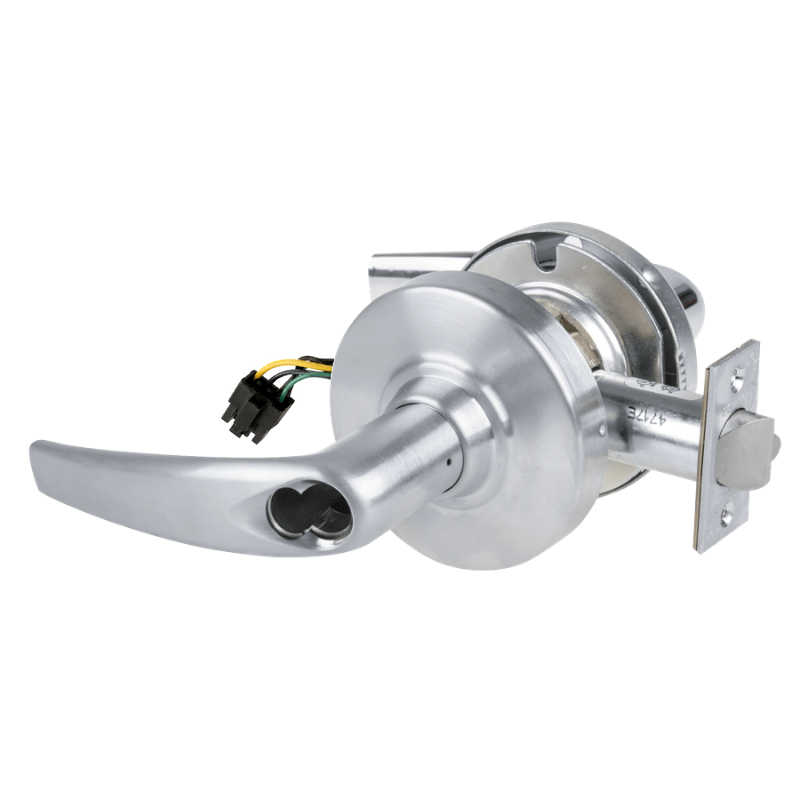

Schlage ND80BD-EU-ATH Cylindrical Electrified Storeroom Lock, Athens Lever, 12-24V VDC, Fail Secure, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EU-ATH Cylindrical Electrified Storeroom Lock combines heavy-duty Grade 1 performance with electric access control convenience for commercial openings. This non handed lock features the Athens lever design and an ND80BD-EU electrified storeroom function that operates on 12-24V VDC in fail secure mode. It is supplied as SFIC prep less core, making it ready for small format interchangeable core preparation without the core included. The lock is configured with a 2-3/4 inch backset and a 4-7/8 inch strike, giving you a durable cylindrical electrified storeroom lock solution built for demanding institutional, retail, healthcare, and office applications.

Features

• ND80BD-EU electrified storeroom function provides controlled access with fail secure operation.
• Athens lever trim offers a clean, modern lever design for commercial applications.
• Operates on 12-24V VDC to support common low-voltage access control systems.
• SFIC prep less core configuration is prepared for small format interchangeable core and ships without the core.
• Built with a 2-3/4 inch backset for standard commercial door preparation requirements.
• Includes a 4-7/8 inch strike for compatible frame installation.
• Grade 1 construction is designed for high-use, heavy-duty performance.
• Non handed design allows installation on either right-hand or left-hand doors.
• Cylindrical lock chassis supports dependable commercial-duty operation.

Functional Details

The ND80BD-EU electrified storeroom function is designed for controlled entry applications where the outside lever remains rigid until access is granted electrically. In fail secure mode, the outside lever stays locked during power loss, while authorized electrical input releases the lever for entry. This makes it well suited for access-controlled openings that require security when power is interrupted.

• Outside lever locked and unlocks momentarily when energized.
• Inside lever always unlocked.
• Outside lever remains locked when power is off.

Included Components

This lock is supplied as SFIC prep less core, meaning the small format interchangeable core is not included. It is configured with a 2-3/4 inch backset and furnished with a 4-7/8 inch strike.
