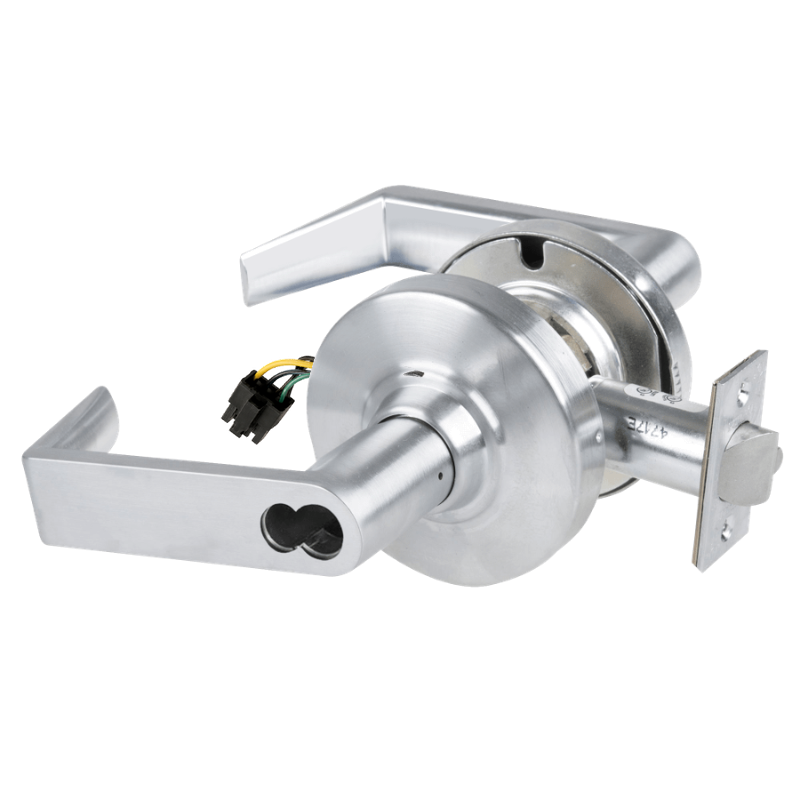

Schlage ND80BD-EU-RHO Cylindrical Electrified Storeroom Lock, Rhodes Lever, 12-24V VDC, Fail Secure, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EU-RHO Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 solution built for high-traffic openings that require dependable access control and security. This configuration includes the Rhodes lever design, 12-24V VDC operation, and fail secure functionality for controlled entry. It is supplied as SFIC prep less core, making it ready for small format interchangeable core preparation without the core included. The lock also features a 2-3/4 inch backset, 4-7/8 inch strike, and non handed construction for easier installation and field flexibility. Designed within the Schlage ND Series, it delivers commercial durability with electrified storeroom performance.

Features

• ND80BD-EU storeroom function provides electrified access control for commercial openings.
• Rhodes lever trim offers a clean, modern lever style within the Schlage ND Series.
• 12-24V VDC input supports low-voltage electrified locking applications.
• Fail secure operation keeps the outside lever locked during power loss.
• SFIC prep less core configuration is prepared for small format interchangeable core and ships without the core.
• 2-3/4 inch backset supports standard commercial door preparations requiring the longer backset.
• 4-7/8 inch strike is included for proper frame engagement.
• Grade 1 construction meets the highest ANSI/BHMA grade for cylindrical locks.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed for access-controlled openings where the outside lever is unlocked by electrical signal and remains secure when power is removed. The fail secure design helps maintain perimeter security during a power interruption, while the inside lever allows free egress at all times.

• Outside lever is locked and unlocked by a remote switch or access control system.
• Inside lever always unlocked for immediate egress.
• Fail secure.
• Field selectable for 12 or 24 VDC.

Included Components

This Schlage ND80BD-EU-RHO lock is supplied in SFIC prep less core format with a Rhodes lever, 2-3/4 inch backset, and 4-7/8 inch strike. The chassis is prepared for a small format interchangeable core, but the core is not included.
