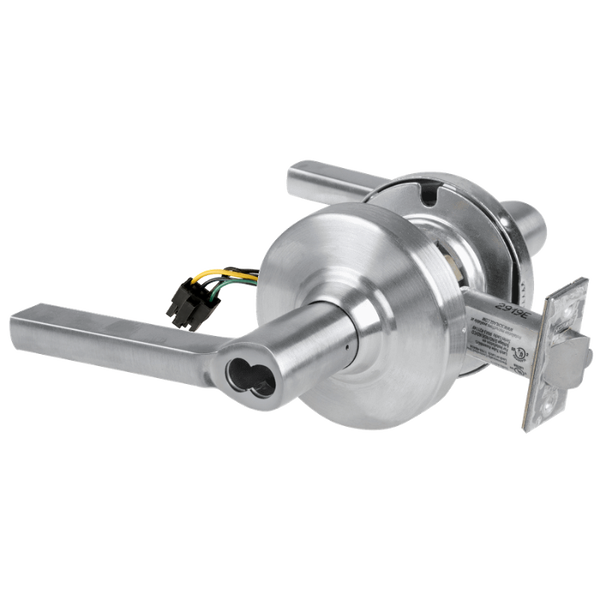

Schlage ND80BD-LAT-RX Cylindrical Storeroom Lock, Latitude Lever, Request to Exit, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-LAT-RX Cylindrical Storeroom Lock combines heavy-duty Grade 1 performance with the clean look of a Latitude lever for demanding commercial openings. This non handed lock features the ND80BD storeroom function with request to exit capability, SFIC prep less core construction, a 2-3/4 inch backset, and a 4-7/8 inch strike for compatibility with standard commercial door preparations. Built as part of the Schlage ND Series, it is designed for strength, reliability, and consistent operation in high-traffic environments where controlled access and dependable egress signaling are required.

Features

• ND80BD storeroom function provides keyed access from the outside with secure locking for controlled entry applications.
• Latitude lever trim offers a modern straight lever design suited for commercial interiors and exteriors.
• Request to Exit monitoring adds signaling capability when the inside lever is operated.
• SFIC prep less core configuration is prepared for a small format interchangeable core and is supplied less core.
• 2-3/4 inch backset supports standard commercial door prep requirements.
• 4-7/8 inch strike is included for proper frame alignment and latch engagement.
• Grade 1 construction is engineered for heavy-duty commercial use and high cycle performance.
• Non handed design allows installation on either right-hand or left-hand doors.
• Cylindrical lock chassis supports straightforward installation and dependable operation.

Functional Details

The ND80BD storeroom function keeps the outside lever rigid at all times and requires a key for entry, while the inside lever remains free for immediate egress. The RX request to exit feature provides a signal when the inside lever is rotated, making it useful for access control and monitoring applications.

• Outside lever fixed.
• Entrance by key only.
• Inside lever always unlocked.
• Inside lever retracts latch.
• RX switch monitors inside lever rotation.

Included Components

This lock is supplied in SFIC prep less core format and includes the cylindrical lockbody, Latitude lever trim, and a 4-7/8 inch strike. The interchangeable core is not included.
