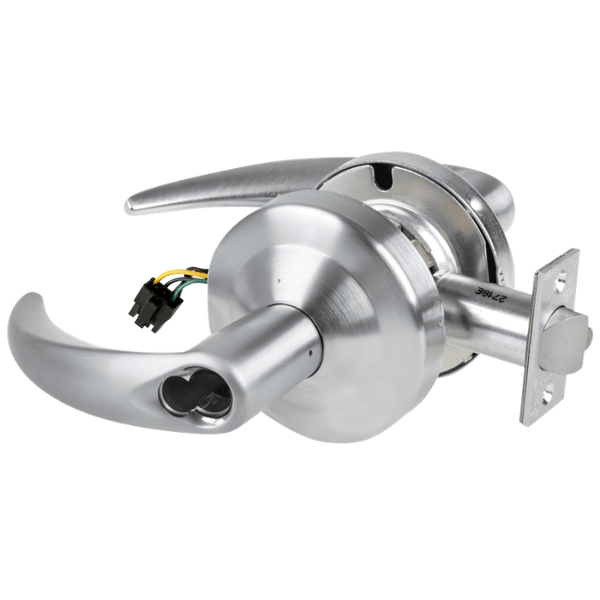

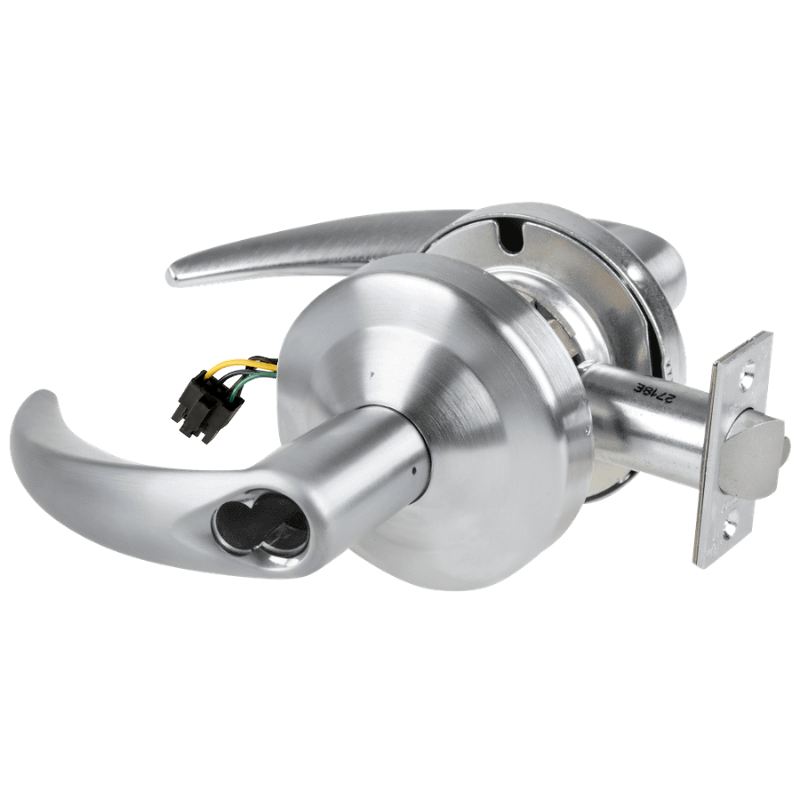

Schlage ND80BD-OME-RX Cylindrical Storeroom Lock, Omega Lever, Request to Exit, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-OME-RX Cylindrical Storeroom Lock is a heavy-duty Grade 1 lock built for high-traffic commercial openings that need dependable security and request-to-exit capability. This configuration includes the Omega lever, RX request to exit switching, and SFIC prep less core construction for use with a small format interchangeable core supplied separately. It is furnished with a 2-3/4 inch backset and a 4-7/8 inch strike, and its non handed design helps simplify installation and field preparation. As part of the Schlage ND Series, this cylindrical storeroom lock is engineered for strength, durability, and consistent performance.

Features

• ND80BD storeroom function provides secure outside access while allowing free egress from the inside.
• Omega lever trim offers a clean commercial lever design used across Schlage ND Series cylindrical locks.
• RX request to exit monitoring adds switch-based signaling for access control and door status integration.
• SFIC prep less core design is prepared for a small format interchangeable core, which is supplied separately.
• 2-3/4 inch backset supports standard commercial door preparations requiring the longer backset option.
• 4-7/8 inch strike is included for compatible frame applications.
• Grade 1 construction meets the highest ANSI/BHMA performance grade for cylindrical locks.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80BD storeroom function keeps the outside lever rigid at all times, requiring key access for entry, while the inside lever remains free for immediate egress. In the RX configuration, the lock also provides request-to-exit signaling when the inside lever is operated, making it suitable for monitored openings and access control systems.

• Outside lever fixed.
• Entrance by key only.
• Inside lever always unlocked.
• Inside lever retracts latch.
• RX - Request-to-exit switch monitors inside lever operation.

Included Components

This Schlage ND80BD-OME-RX lock is supplied with SFIC prep less core construction, a 2-3/4 inch backset latch, and a 4-7/8 inch strike. The small format interchangeable core is not included and must be ordered separately.
