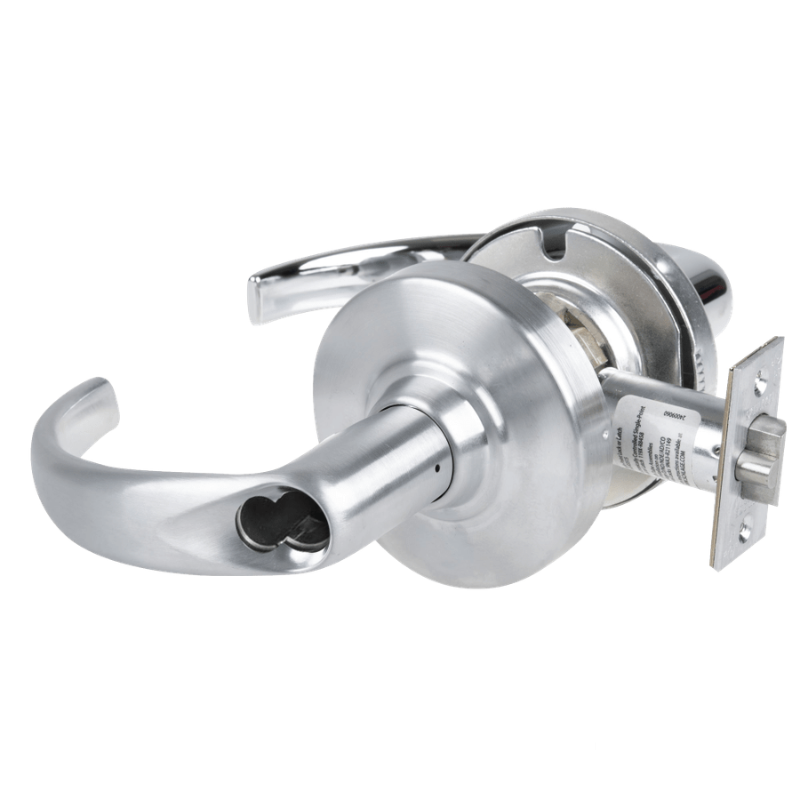

Schlage ND80BD-SPA Cylindrical Storeroom Lock, Sparta Lever, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80BD-SPA Cylindrical Storeroom Lock with Sparta lever is a heavy-duty Grade 1 cylindrical lock built for dependable security in commercial openings. This ND80BD-SPA configuration features storeroom function operation, SFIC prep less core construction for small format interchangeable core compatibility, a 2-3/4 inch backset, and a 4-7/8 inch strike. Its non handed design helps simplify installation and stocking, while the Sparta lever trim provides a clean, durable lever style suited for schools, offices, healthcare, and other high-traffic facilities that need lasting performance from a Schlage ND Series lock.
Features
- ND80BD-SPA storeroom function provides secure outside access control with a Schlage cylindrical lock body.
- Sparta lever trim offers a durable commercial lever design for frequent-use openings.
- SFIC prep less core configuration is prepared for a small format interchangeable core, with core supplied separately.
- The 2-3/4 inch backset is suited for standard commercial door preparations requiring that latch dimension.
- A 4-7/8 inch strike is included for proper frame alignment and installation.
- Grade 1 construction meets the highest ANSI/BHMA grade for cylindrical locks.
- Non handed design allows the lock to be installed on either right-hand or left-hand doors.
Functional Details
This storeroom lock function keeps the outside lever rigid at all times and requires a key for entry from the outside, while the inside lever remains free for immediate egress. The ND80BD function is commonly used on doors where security is needed on the exterior side without restricting exit from the interior.
- Outside lever rigid.
- Entrance by key only.
- Inside lever always free for immediate egress.
Included Components
This Schlage ND80BD-SPA lock is supplied in an SFIC prep less core configuration, meaning the small format interchangeable core is not included. The lock is configured with a 2-3/4 inch backset latch and a 4-7/8 inch strike for commercial installation.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80BD-SPA |
| Lock Type | Cylindrical lock |
| Function | Storeroom |
| Lever Design | Sparta lever |
| Cylinder Preparation | SFIC prep less core |
| Handing | Non handed |
| Grade | ANSI/BHMA Grade 1 |
| ANSI Number | F86 |
| UL Listing Type | UL listed for 3-hour fire door |
| Origin | Made in USA of domestic and imported materials |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 10-year mechanical warranty and 3-year electro mechanical warranty |
Technical Specifications
| Backset | 2-3/4 inch |
|---|---|
| Strike | 4-7/8 inch |
| Door Thickness | 1-3/8 inch to 1-3/4 inch standard |
| Cross Bore | 2-1/8 inch |
| Edge Bore | 1 inch |
| Latch Front | 1-1/8 inch x 2-1/4 inch |
| Strike Dimension | 1-1/4 inch x 4-7/8 inch |
| Latch Bolt Throw | 1/2 inch |
| Cylinder Format | Small format interchangeable core prep |
| Handing | Non handed |
| Fire Rating | 3 hour |
| ANSI Function Number | F86 |
