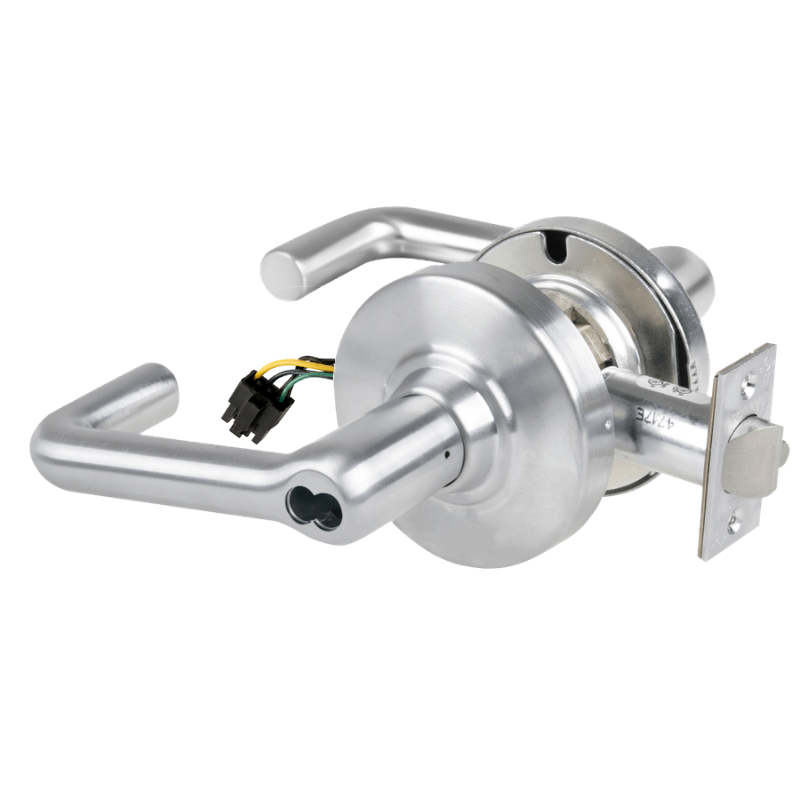

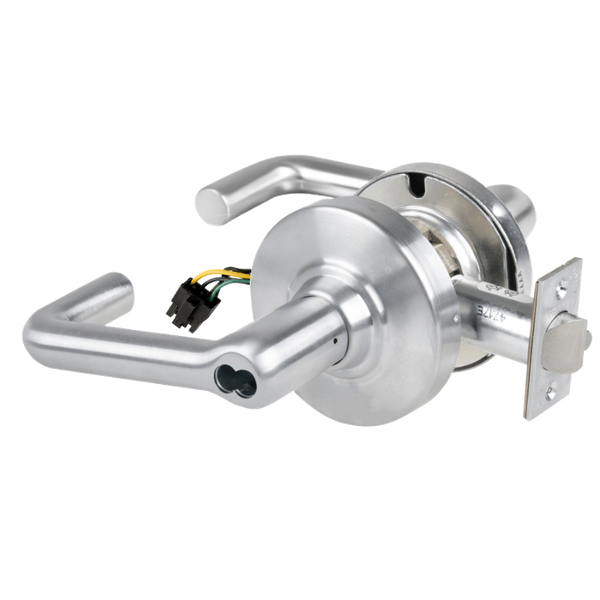

Schlage ND80BD-TLR-RX Cylindrical Storeroom Lock, Tubular Lever, Request to Exit, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-TLR-RX is a Grade 1 cylindrical storeroom lock built for the demanding traffic found in schools, hospitals, and commercial buildings. This model pairs the durable Tubular (TLR) lever design with a Request to Exit (RX) switch, allowing the lock to signal an access control system when the inside lever is used. It comes prepped for a Small Format Interchangeable Core (SFIC) but ships less core, giving facility managers the flexibility to install their own keying system. With a storeroom function, the outside lever stays locked at all times while the inside lever always allows free egress. Non-handed for straightforward installation.

Features

• Grade 1 cylindrical lock certified for heavy-duty commercial applications.
• Storeroom function keeps the outside lever locked continuously for secure access control.
• Built-in Request to Exit (RX) switch communicates lever activation to an access control system.
• Prepped for a Small Format Interchangeable Core (SFIC) and shipped less core for custom keying.
• Tubular (TLR) lever design offers a clean, contemporary appearance.
• Non-handed design simplifies ordering and installation for either door swing.
• Standard 2-3/4 inch backset with a 4-7/8 inch strike.

Functional Details

The ND80 storeroom function is designed for spaces that must remain secured while still allowing occupants to exit freely. The outside lever is always fixed and requires a key to enter, while the inside lever retracts the latch at all times. The RX switch adds electronic monitoring of egress for integration with building access systems.

• Latchbolt operated by key from outside or by lever from inside.
• Outside lever is always fixed.
• Auxiliary latch deadlocks the latchbolt when the door is closed.
