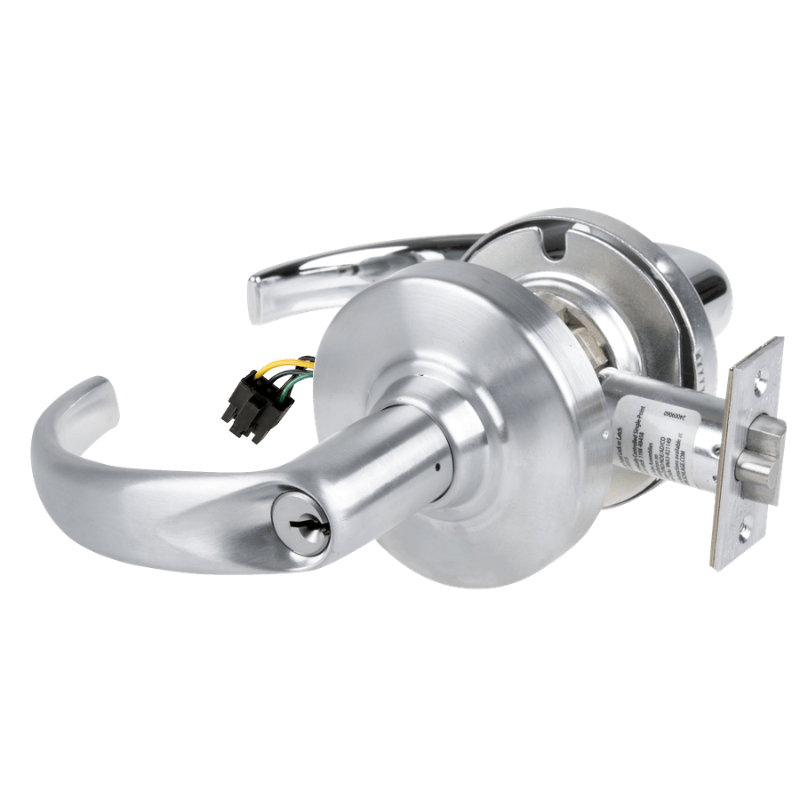

Schlage ND80PD-EL-SPA Cylindrical Electrified Storeroom Lock, Sparta Lever, 12-24V VDC, Fail Safe, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EL-SPA Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lock built for demanding commercial openings that require dependable access control and key security. This configuration features the Sparta lever, 12-24V VDC operation, and fail safe electrified function for controlled entry applications. It is supplied with the Schlage "C" keyway, keyed different cylindering, and [2] change keys for day-to-day key management. The lock also includes a 2-3/4 inch backset and 4-7/8 inch strike, and its non handed design helps simplify installation across a wide range of door preparations.

Features

• ND80PD-EL electrified storeroom function provides remote access control in a cylindrical lock format.
• Sparta lever trim offers a clean, durable lever design for commercial use.
• 12-24V VDC operation supports flexible low-voltage electrified hardware applications.
• Fail safe operation unlocks upon power loss for applications requiring free access during outage conditions.
• Schlage "C" keyway is included for standard Schlage keying compatibility.
• Keyed different cylindering provides an individual key combination for this lock.
• [2] change keys are included for immediate key control and operation.
• 2-3/4 inch backset fits common commercial door preparations.
• 4-7/8 inch strike is included for compatible frame installation.
• Grade 1 construction meets high-cycle commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80PD-EL fail safe electrified storeroom lock keeps the outside lever rigid and the latchbolt extended during normal operation, then changes state with power to allow or restrict outside lever operation based on the electrified function. In a fail safe configuration, loss of power leaves the outside lever unlocked, making it suitable for openings where free access is required during a power interruption.

• Outside lever is normally rigid.
• Latchbolt by lever either side, except when outside lever is locked by closing door.
• Inside lever always unlocked.
• Outside lever is unlocked by key or by turning inside lever.

Included Components

This lock is supplied with the Sparta lever, Schlage "C" keyway cylinder keyed different, [2] change keys, a 2-3/4 inch backset, and a 4-7/8 inch strike. Its non handed construction helps reduce ordering complexity and supports easier field installation.
