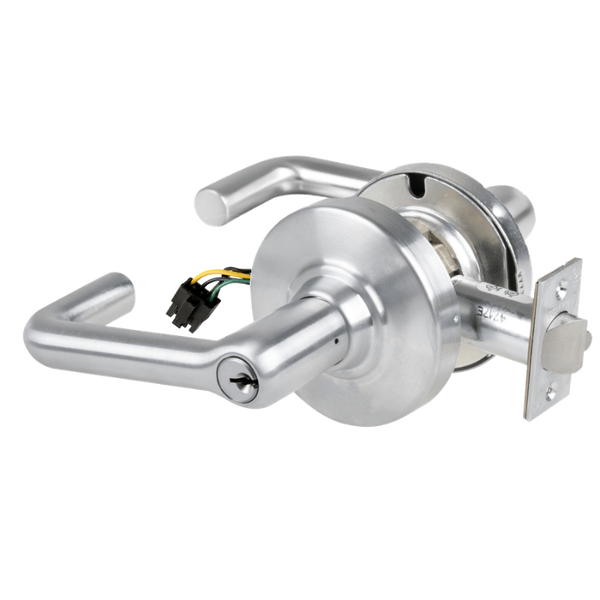

The Schlage ND80PD-TLR-RX is a Grade 1 cylindrical storeroom lock built for the demanding conditions of commercial and institutional openings. Part of Schlage's heavy-duty ND Series, it features the Tubular (TLR) lever design paired with a Request to Exit (RX) switch that signals when the inside lever is operated, making it ideal for access control and monitored openings. The lock ships with the Schlage "C" keyway, keyed different, and includes two change keys. With a 2-3/4 inch backset, a 4-7/8 inch strike, and a non-handed design, this lockset installs on virtually any standard commercial door for reliable, long-term security.
Features
Functional Details
The storeroom function provides a secure entry point where the outside lever remains locked and requires a key for entry, while the inside lever always retracts the latch for free, immediate egress. The Request to Exit switch actuates whenever the inside lever is turned, sending a signal to connected access control or alarm systems.
| Manufacturer | Schlage |
|---|---|
| SKU | ND80PD-TLR-RX |
| Series | ND Series |
| Grade | Grade 1 |
| Function | Storeroom / Closet (F86) |
| Lever Style | Tubular (TLR) |
| Keyway | Schlage "C" |
| Keying | Keyed Different, [2] Change Keys |
| Handing | Non-Handed |
| Origin | USA |
| Unit of Measure | Each |
| ANSI Number | A156.2, Series 4000 |
| Limited Warranty | Yes |
| Backset | 2-3/4 inches |
|---|---|
| Strike | 4-7/8 inch ANSI strike |
| Latchbolt Throw | 1/2 inch |
| Door Thickness Range | 1-3/8 to 2 inches (standard) |
| Cylinder | 6-pin conventional |
| Special Feature | Request to Exit (RX) switch |
| Chassis | Cylindrical |
| Bored Hole Diameter | 2-1/8 inch cross bore |
| Latch Face | 1-1/8 x 2-1/4 inch |
| ANSI Standard | ANSI/BHMA A156.2 |
| Cycle Test | Grade 1 (16 million cycles) |
