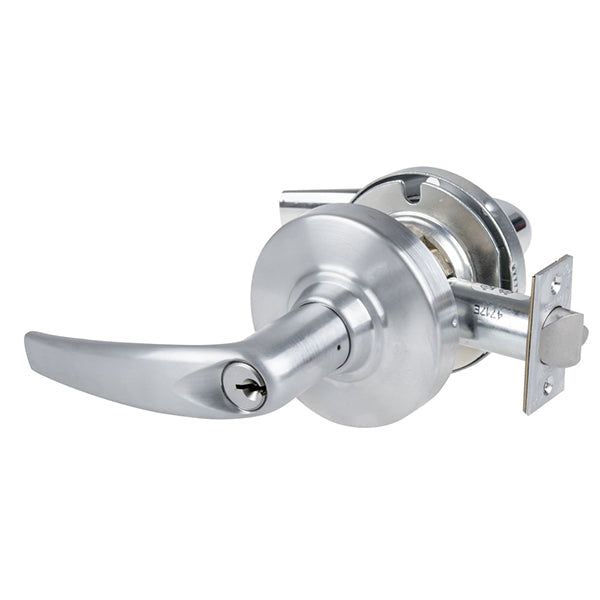

Schlage ND82PD-ATH-626 Institution Lock
Schlage ND82PD-ATH-626 Institution Lock
Schlage ND82PD-ATH-605 Institution Lock
Schlage ND82PD-ATH-606 Institution Lock
Schlage ND82PD-ATH-612 Institution Lock
Schlage ND82PD-ATH-613 Institution Lock
Schlage ND82PD-ATH-619 Institution Lock
Schlage ND82PD-ATH-625 Institution Lock
All SCHLAGE Products

Schlage ND82PD-ATH Institution Lock, Athens Lever, Schlage "C" Keyway

  • SKU: ND82PDATH626
  • ✓
    In Stock
    In Stock
Your Price
$671.58/ea
Schlage Finish: 626 - Satin Chromium Plated

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ND82PD-ATH Institution Lock, ...
Quantity
–
+
From $671.58
LCN 4040XP-RW/PA Super Smoothee Heavy...
Quantity
–
+
From $432.23
Ives 5BB1 4.5X4.5 Ball Bearing Hinge
Quantity
–
+
From $55.35
Schlage N123-062 Request To Exit Swit...
Quantity
–
+
$86.92
Total

The Schlage ND82PD-ATH is a Cylindrical Institution Lock, with an Athens Lever, is available in Schlage C Keyway, is Keyed Different, comes with 2 Keys, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in multiple finishes.

Institution Function - Both levers are fixed. Entrance by key in either lever.
Schlage ND82 Function Chart

ND Mechanical Overview

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

  • Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
  • 31 mechanical functions
  • Nine lever designs, two rose designs
  • 10 available finishes
  • Supports standard, SFIC and FSIC cylinder formats
  • Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
  • Support for 10 non-Schlage cores
Manufacturer Schlage
SKU ND82PD ATH
Grade Grade 1
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL Listed
ANSI Number ANSI A156.2 Series 4000, Grade 1
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes


Function 82 Institution Lock
Function Family Institutional
ANSI Function F87 - Asylum
Lever/Knob Design ATH Athens Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions 3-7/16"
Cylinder Type Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-5/8 In. to 2-1/8 In.
Std. Latch Number 13-247
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 1 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 10-025
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Wood/Machine Screws
Product Type Cylindrical Lock
