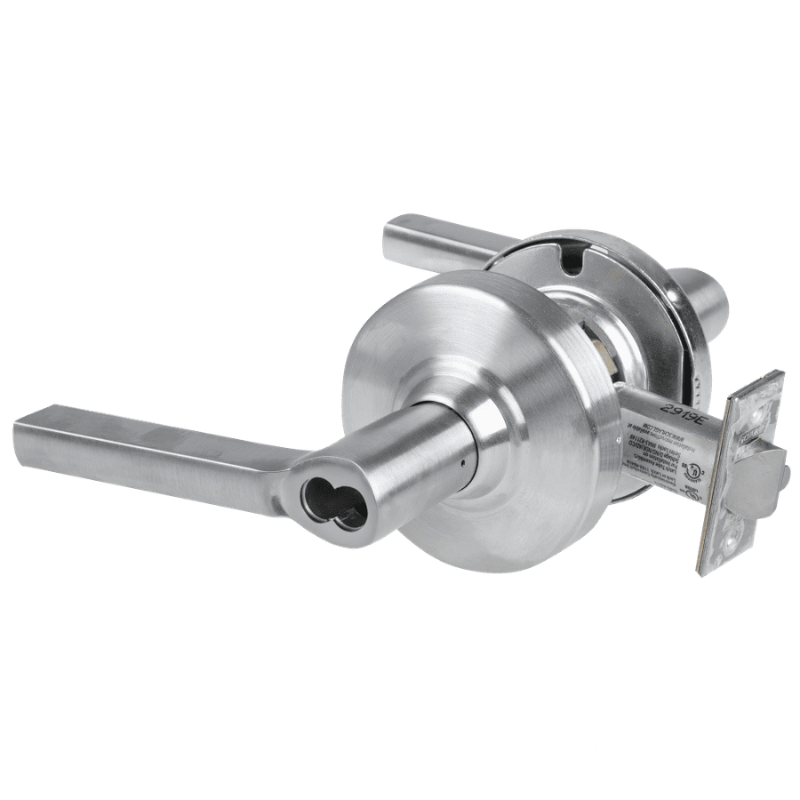

The Schlage ND91BD-LAT Vandlgard Entrance/Office Cylindrical Lock is a Grade 1 solution built for high-traffic commercial openings where durability and security matter most. Featuring the sleek Latitude (LAT) lever, this lock delivers reliable performance with Vandlgard technology that allows the outside lever to rotate freely when locked, protecting the internal mechanism from forced entry and vandalism. It arrives prepped for a small format interchangeable core (SFIC) and ships less core, giving facility managers flexibility to integrate their own keying system. With a 2-3/4 inch backset and non-handed design, installation is straightforward across a wide range of doors.
Features
Functional Details
The ND91 Entrance/Office function with Vandlgard allows entry by key when the outside lever is locked. Turning the inside lever or key retracts the latch, and the outside lever remains rigid until unlocked, while its free-rotating Vandlgard design absorbs abuse without damaging internal components.
| Manufacturer | Schlage |
|---|---|
| SKU | ND91BD-LAT |
| Grade | Grade 1 |
| Origin | Made in USA |
| Unit of Measure | Each |
| UL Listing Type | UL Listed for 3-hour fire door |
| ANSI Number | ANSI/BHMA A156.2, Series 4000 |
| BAA Qualified | Yes |
| Limited Warranty | Limited lifetime mechanical warranty |
| Function | Entrance/Office (ND91) |
| Lever Style | Latitude (LAT) |
| Handing | Non-handed |
| Backset | 2-3/4 inches |
|---|---|
| Strike | 4-7/8 inch ANSI strike |
| Latch | Standard, deadlocking latchbolt |
| Latchbolt Throw | 1/2 inch |
| Cylinder | SFIC prep, less core |
| Door Thickness | 1-3/8 inch to 2 inch standard |
| Chassis | Cylindrical |
| Rose Diameter | 3-9/16 inches |
| Bore Hole | 2-1/8 inch cross bore |
| Cycle Rating | Grade 1, exceeds ANSI operational cycles |
