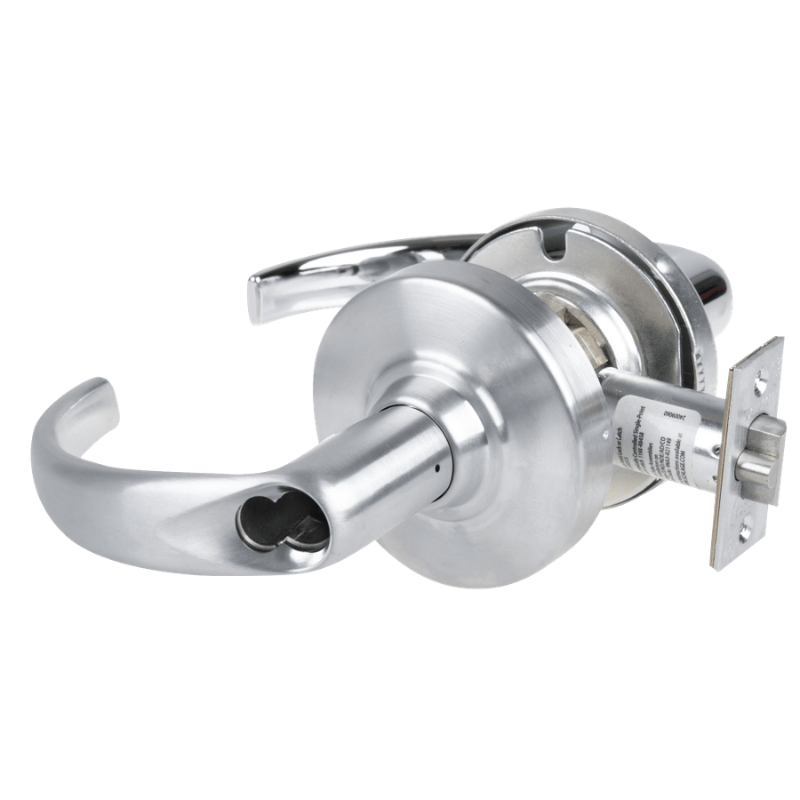

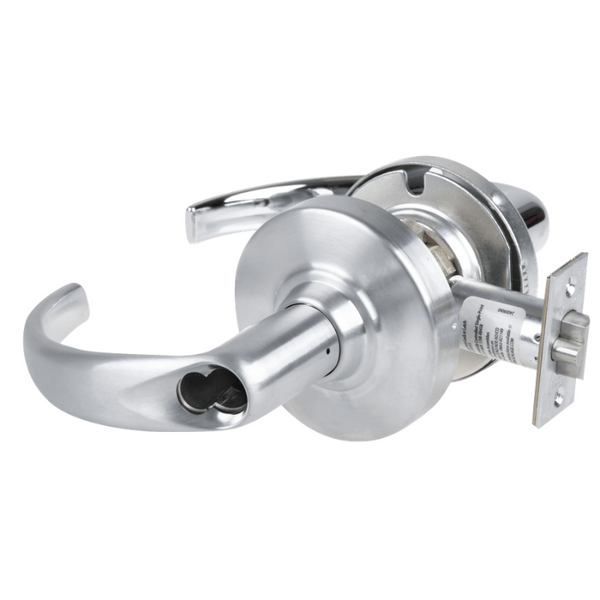

The Schlage ND91BD-SPA is a Grade 1 cylindrical lock built for high-traffic commercial openings that demand strength and reliability. As part of Schlage's proven ND Series, it features Vandlgard technology, which allows the outside lever to rotate freely when locked, protecting the internal mechanism against forced entry and vandalism. This entrance/office function lock ships prepped for a small format interchangeable core (SFIC) but less core, giving facility managers flexibility to add their preferred keying system. Paired with the clean, contemporary Sparta (SPA) lever and a non-handed design, it installs easily on virtually any door and delivers dependable performance in schools, offices, and institutional environments.
Features
Functional Details
The ND91 entrance/office function allows the door to be locked or unlocked from the outside using a key, while the inside lever always allows free egress. When locked, Vandlgard protects the lock by permitting the outside lever to rotate without engaging the latch.
| Manufacturer | Schlage |
|---|---|
| SKU | ND91BD-SPA |
| Function | Entrance/Office |
| Lever Style | Sparta (SPA) |
| Grade | ANSI/BHMA Grade 1 |
| Handing | Non-Handed |
| Cylinder | SFIC Prep, Less Core |
| ANSI Number | F82 |
| UL Listing Type | UL/cUL Listed for 3-hour fire door |
| Origin | USA |
| Unit of Measure | Each |
| Limited Warranty | Yes |
| Backset | 2-3/4" |
|---|---|
| Strike | 4-7/8" ANSI strike |
| Latch | 3/4" throw deadlocking latchbolt |
| Door Thickness | 1-3/8" to 2" standard |
| Bore Hole | 2-1/8" diameter |
| Edge Bore | 1" diameter |
| Lever Material | Pressure cast zinc |
| Chassis | Cold-rolled steel |
| Cycle Rating | Grade 1 (exceeds one million cycles) |
| Cylinder Type | Small Format Interchangeable Core (6- or 7-pin) |
| Rose Diameter | 3-9/16" |
