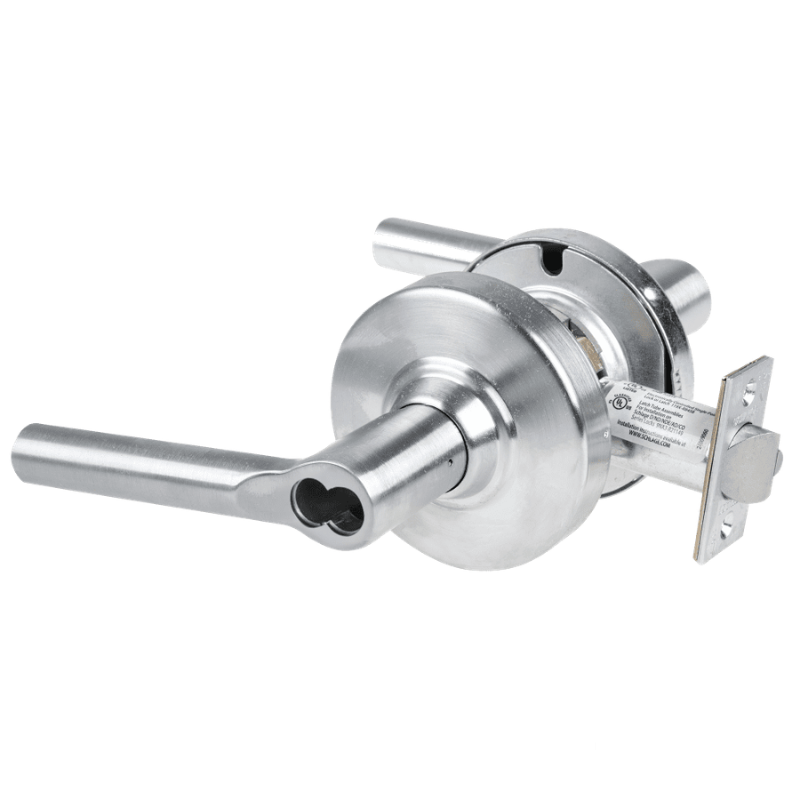

The Schlage ND91JD-BRW is a Grade 1 Vandlgard entrance/office cylindrical lock built for demanding commercial environments where durability matters most. Featuring the Broadway (BRW) lever and Vandlgard technology, this lock protects internal components by allowing the outside lever to rotate freely when locked, resisting vandalism and forced entry. It's prepared for a Schlage FSIC full-size interchangeable core and ships less core, making it ideal for facilities that manage their own keying systems. With a standard 2-3/4 inch backset and 4-7/8 inch strike, this non-handed lock installs on a wide range of doors and delivers reliable everyday performance.
Features
Functional Details
The ND91 entrance/office function keeps the door latched while allowing controlled access from either side depending on the lock state. The Vandlgard mechanism absorbs abusive force on a locked outside lever, keeping the internal parts intact.
| Manufacturer | Schlage |
|---|---|
| SKU | ND91JD-BRW |
| Series | ND Series |
| Function | Entrance/Office (Vandlgard) |
| Lever Style | Broadway (BRW) |
| Grade | ANSI/BHMA Grade 1 |
| Cylinder | Schlage FSIC Full Size Interchangeable Core, Less Core |
| Handing | Non-Handed |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed for 3-hour fire door |
| ANSI Number | F82 (Entrance/Office) |
| BAA Qualified | Yes |
| Limited Warranty | Three-year limited warranty |
| Backset | 2-3/4 inch |
|---|---|
| Strike | 4-7/8 inch |
| Latchbolt Throw | 1/2 inch |
| Door Thickness Range | 1-3/8 inch to 2 inch standard |
| Chassis | Cylindrical |
| Bore Hole Diameter | 2-1/8 inch |
| Latch Face Dimensions | 1 inch x 2-1/4 inch |
| Rose Diameter | 3-9/16 inch |
| Lever Type | Return-to-door lever design |
| Keying | Field-configurable via interchangeable core |
| Certification | ANSI/BHMA A156.2 Series 4000 Grade 1 |
